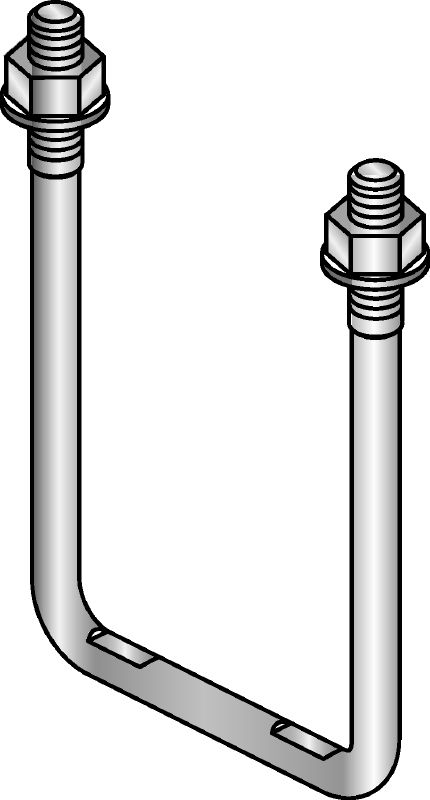

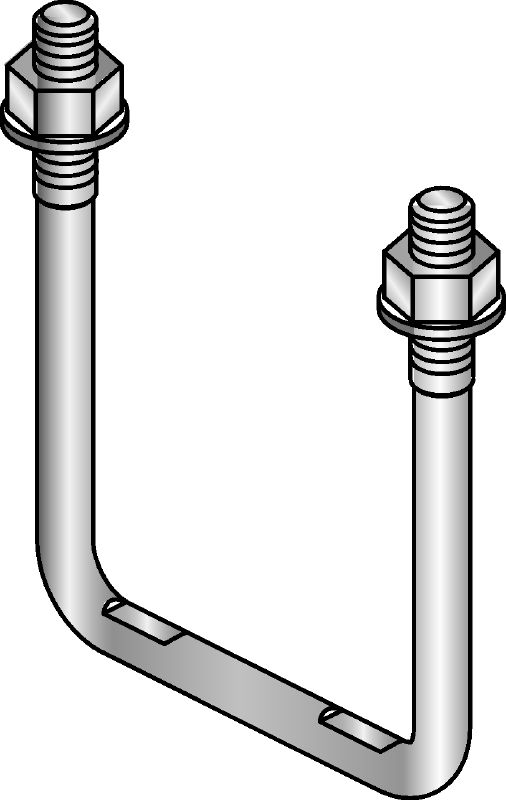

MIA-BO u-bolt

Bow MIA-BO90-M12 #304840

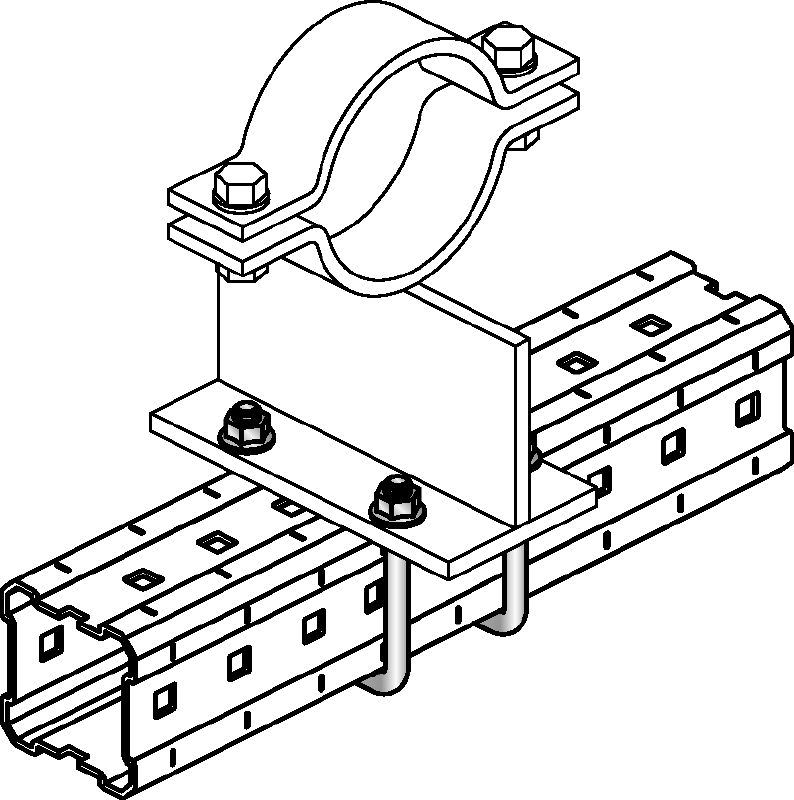

hot-dip galvanised (HDG) u-bolt for fastening pipe shoes to MI girders

Advantage 01: Quickly and easily install pipe support system for light-duty fixed points
Weight: 0.58 kg
Material composition: U-bolt: Steel grade 8.8 - ISO 898-1; Nut: Steel grade 8

Choose options

Modular Girder Type

Pack size

8 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

KWD 158.080

KWD 19.760 / 1 each

Technical Data

Advantage 01

Quickly and easily install pipe support system for light-duty fixed points

Weight

0.58 kg

Material composition

U-bolt: Steel grade 8.8 - ISO 898-1; Nut: Steel grade 8

Surface finish

HDG: 48 µm - DIN EN ISO 10684

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Tightening torque

84 Nm

Wrench size

19 mm

Documents

Features & Applications

Features

Quickly and easily install pipe support system for light-duty fixed points
Part of the MQ system

Applications

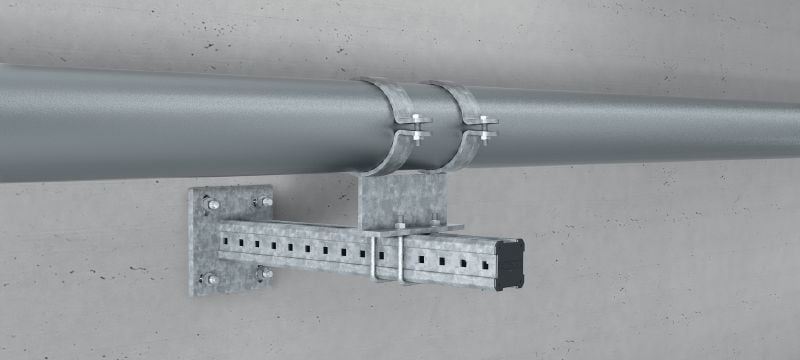

Fastening pipes, with clamping system for fixed supports
Installing light-duty fixed points
