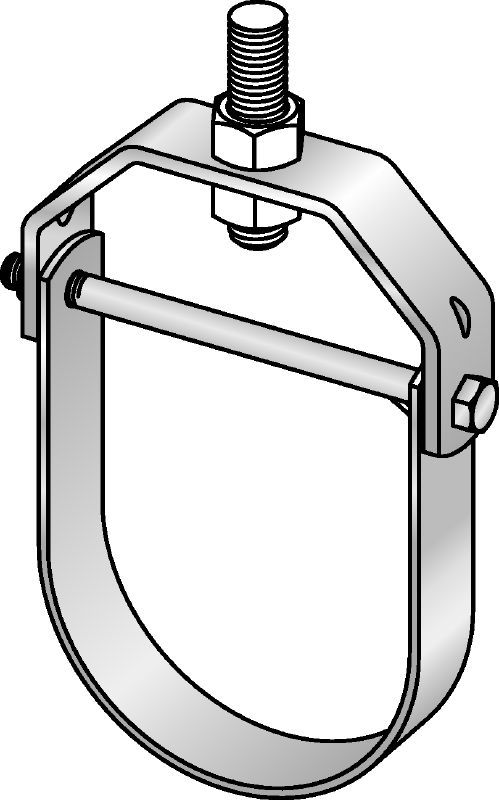

SDC Clevis hanger
Std duty clevis hanger SDC 1/2" EG #388634
Standard galvanised clevis hanger for various piping applications
- Material composition: Q235B - ASTM A36
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Nominal pipe size (imperial)
- 1/2 in
- 1 in
- 1-1/2 in
- 2-1/2 in
- 3 in
- 4 in
- 5 in
- 6 in
- 8 in
- 10 in
- 12 in
Rod size - RS
- M10
- M12
- M16
- M20
- M24
Pack size
- 2 pc
- 5 pc
- 10 pc
- 25 pc
- 50 pc
Quantity
Packs
Total Pieces
50
Discounted net
Technical Data
Material composition
Q235B - ASTM A36
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Rod size - RS
M10
Distance centre pipe to top - h
41 mm
Weight
0.07 kg
Documents
Features & Applications
Features
- Optimised load distribution - evenly distributes the load across the pipe, ensuring stability and reducing stress on the piping system
- Versatile installation - allows for pipes to be installed at inclinations, providing flexibility in design and installation in non-standard configurations
- Easier installation and height adjustment - attachment to a threaded rod facilitates quick installation and allows height adjustment, ensuring precise positioning of the pipe
Applications
- heavy-duty support for piping systems
- All models are for use with ANSI/MSS SP-58 (Type 1) heavy-duty sizes
