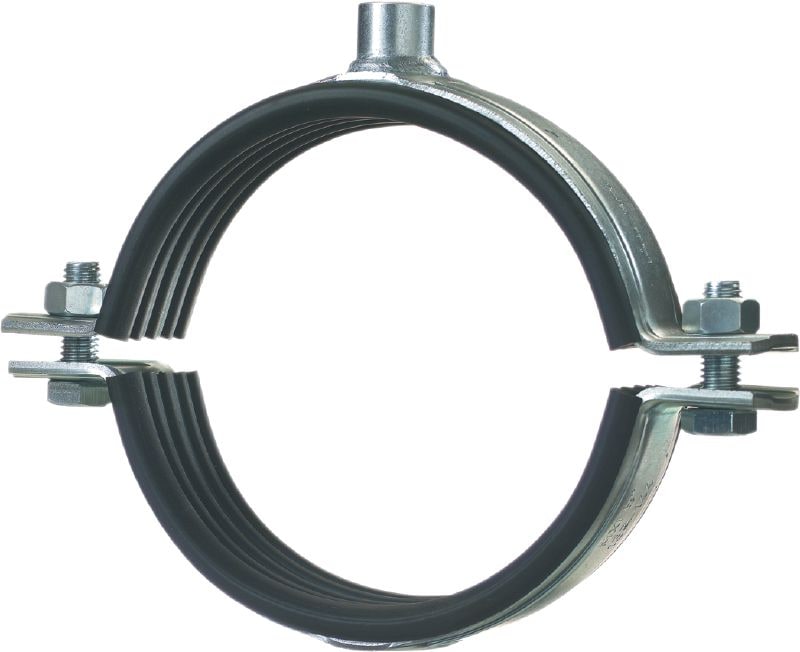

MP-MXI heavy-duty pipe clamp
Galvanised pipe clamp with sound insulation for extra heavy-duty applications
- Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
- Noise reduction: 16 dB (A)
- Temperature resistance: -50 - 120 °C
premium
Customers also searched for pipe clamps, pipe rings, pipe supports, installing pipes or connectors.
Choose options
Clamping range - D
- 108 - 116 mm
- 159 - 166 mm
- 163 - 170 mm
- 210 - 218 mm
- 219 - 228 mm
- 244 - 253 mm
- 315 - 324 mm
Thread connection - M
- 1 in
- M16
Nominal pipe size (imperial)
- 4 in
- 6 in
Pack size
- 1 pc
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From KWD 25.740
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Product class
Premium
Documents
Features & Applications
Features
- Solid connection head, welded all around
- Strong clamping screws for high load values
- Non-slip, pre-fitted profiled rubber inlay
- Suitable for installing pipes under dynamic loading if used with vibration-damping components

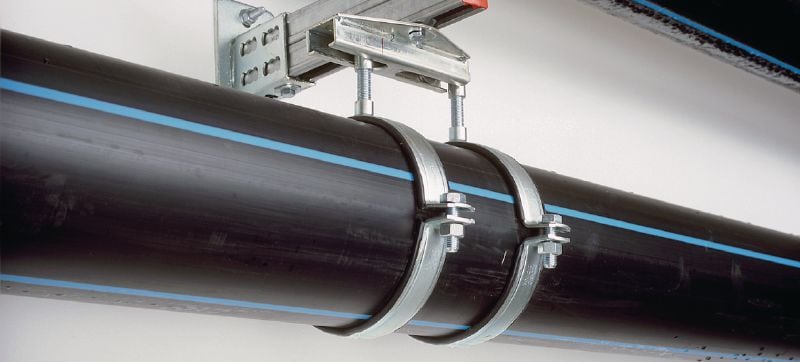

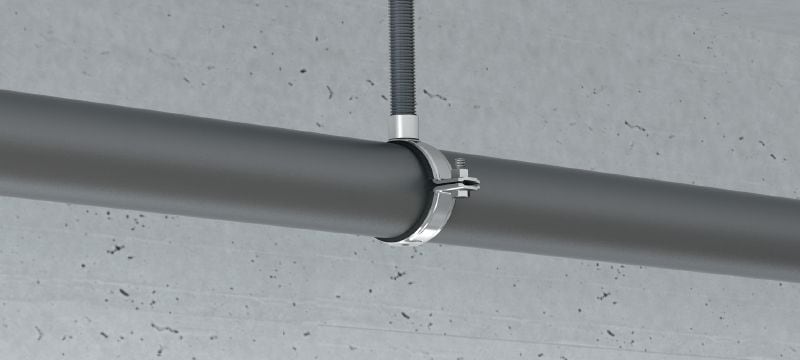

Applications
- heavy-duty pipe installations up to 508 mm
- Installing industrial pipes
- Mounting process and control queues
- Installation of industrial pipework
For approval or certificate information, please see individual items.
