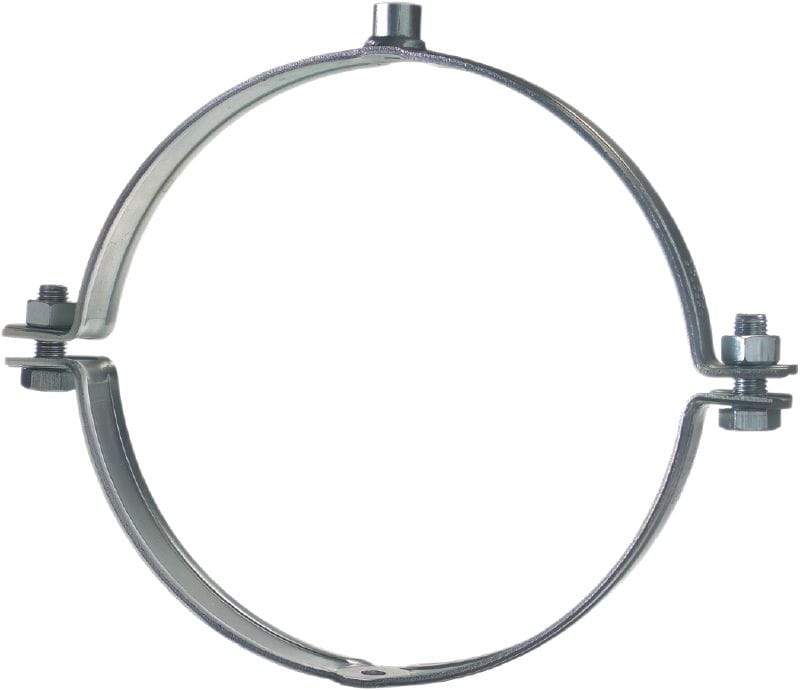

MP-MX heavy-duty pipe clamp
Heavy-d. pipe ring MP-MX 6" M16 #372280
Galvanised pipe clamp without sound insulation for extra heavy-duty applications
- Clamping range - D: 163 - 170 mm
- Nominal pipe size (imperial): 6 in
- Thread connection - M: M16
standard
Choose options
Clamping range - D
- 163 - 170 mm
Thread connection - M
- M16
Nominal pipe size (imperial)
- 6 in
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
KWD 142.350
KWD 14.230 / 1 each
Technical Data
Clamping range - D
163 - 170 mm
Nominal pipe size (imperial)
6 in
Thread connection - M
M16
Maximum load - F
11000 N
Approvals
Fire resistance test IBMB 2101-255-18, FM approved
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M12
Tightening torque
10 Nm
Cross section thickness - s
4 mm
Cross section width - b
40 mm
Width - B
253 mm
Distance between holes - A
215 mm
Product class
Standard
Distance centre pipe to top - h
111 mm
Documents
Features & Applications
Features
- Solid connection head, welded all around
- Strong clamping screws for high load values
- Suitable for installing pipes under dynamic loading if used with vibration-damping components

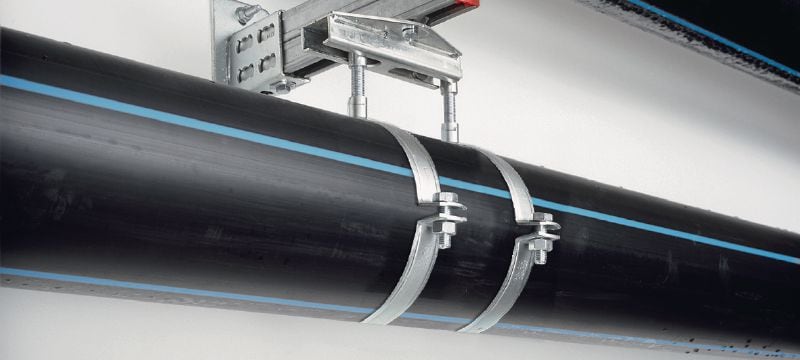

Applications
- heavy-duty pipe installations up to 508 mm
- Installing industrial pipes
- Mounting process and control queues
- heavy-duty plumbing and heating applications
- Suitable for use in conjunction with vibration-reducing elements for pipework under dynamic loading
