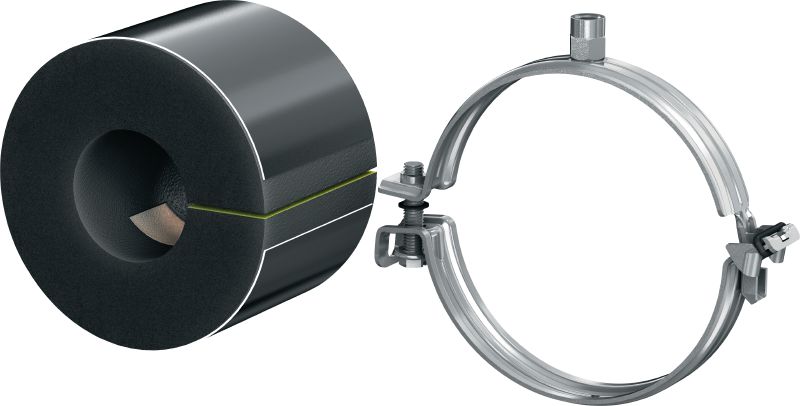

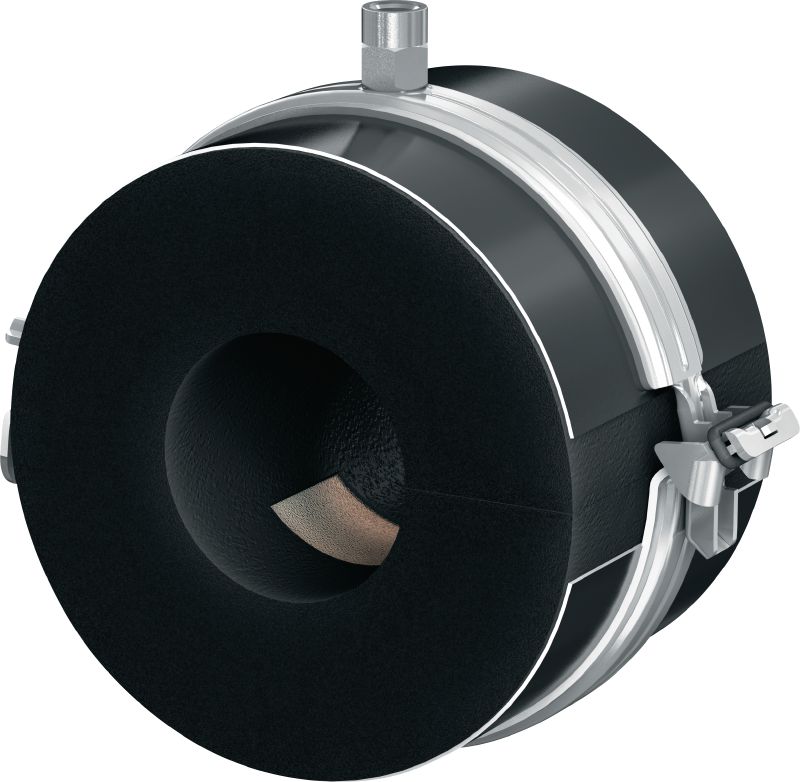

MIP-T Refrigeration pipe clamp (thick insulated)
Refrig. pipe ring MIP-T/89 #314178
.jpg)
Galvanised pipe clamp for maximum productivity in refrigeration applications with an insulation thickness of 31-50 mm
- Clamping range - D: 88 - 90 mm
- Nominal pipe size (imperial): 3 in
- Thread connection - M: M16
ultimate
Choose options
Clamping range - D
- 88 - 90 mm
Thread connection - M
- M16
Nominal pipe size (imperial)
- 3 in
Pack size
- 4 pc
Quantity
Packs
Total Pieces
4
Discounted net

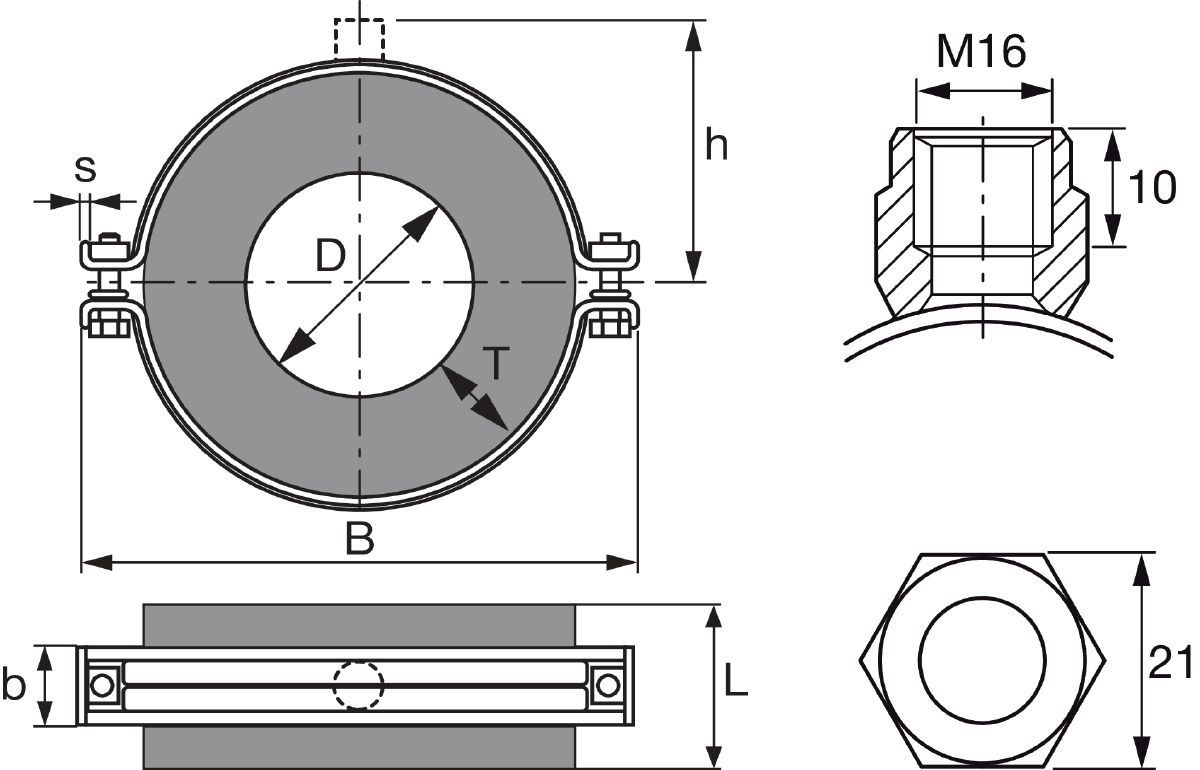

Technical Data
.jpg)
Clamping range - D
88 - 90 mm
Nominal pipe size (imperial)
3 in
Thread connection - M
M16
Maximum load - F
1100 N
Approvals
Fire class B2
Noise reduction
20 dB (A)
Temperature resistance
-40 - 105 °C
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
M8
Tightening torque
3 Nm
Cross section thickness - s
41 mm
Cross section width - b
125 mm
Width - B
223 mm
Product class
Ultimate
Distance centre pipe to top - h
109 mm
Max. extension from centre - b1
111 mm
Diffusion resistance
≥ 7000
Thermal conductivity (λ approx. value)
0.036 W/mK
Approx. density
145 kg/m³
Documents
Features & Applications
Features
- Designed for standard insulation thicknesses (insulation material: elastomeric caoutchouc)
- Continuous joint between refrigeration pipe clamp and pipe insulating material (elastomeric caoutchouc)
- Thermally decoupled system with integrated vapour (diffusion) barrier to help prevent thermal short circuits
- Assembly of the insulation core with a handle thanks to the self-adhesive closure
- Three-stage quick closure with only one screw up to 80 mm; from 88 mm and larger two-screw closure
Applications
- Mounting pipes up to 221 mm diameter in refrigeration and air conditioning applications
- Applications where easy fitting of the insulating unit is required
- No sealants required
