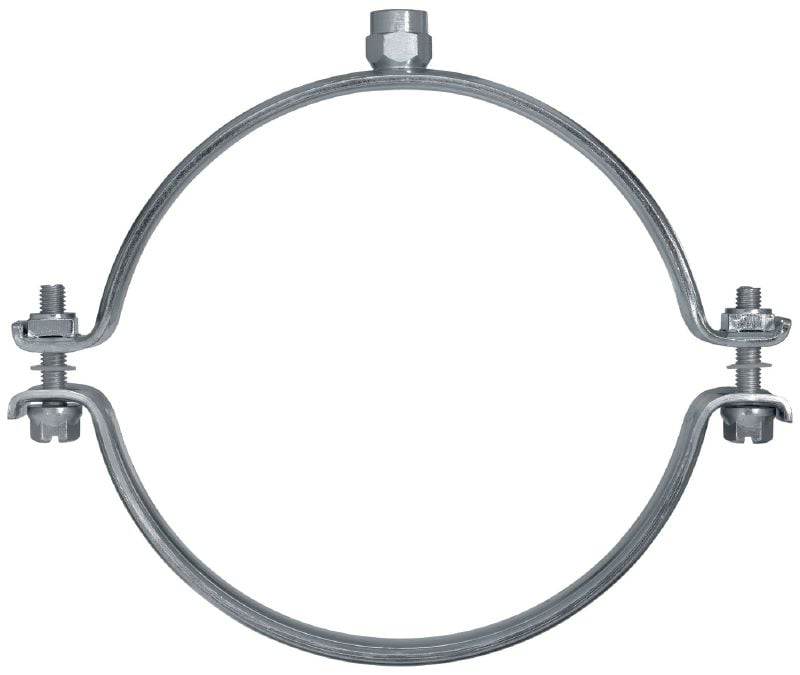

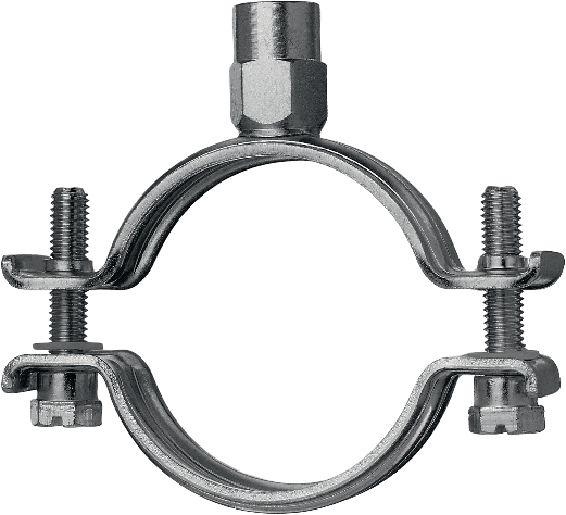

Galvanised sprinkler pipe clamp with VdS, FM and UL approvals for fire sprinkler applications

  • Material composition: S235JRG - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Clamping range - D
  • 20 - 25 mm
  • 25 - 30 mm
  • 32 - 38 mm
  • 57 - 64 mm
  • 82 - 90 mm
  • 162 - 168 mm
Thread connection - M
  • M10
  • M12
  • M8, M10
Nominal pipe size (imperial)
  • 1/2 in
  • 3/4 in
  • 1 in
  • 2 in
  • 3 in
  • 6 in
Pack size
  • 10 pc
  • 25 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

28514_B_H_J.eps
Material composition
S235JRG - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

  • Swaged steel pipe clamp section for greater stiffness
  • Clamping screws (slotted hexagon head, M8) pre-attached to pipe clamp to help prevent loss
  • Sizes up to 2" equipped with M8/M10 flexible connection head
  • Sizes larger than 68/72 mm with solid, welded-on nuts for better mounting of clamping screws
  • Double thread M8/M10 for pipe rings up to 2"

Applications

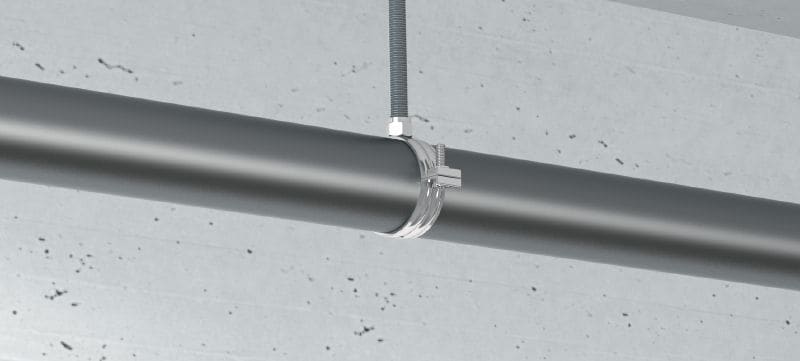

  • single-point fastening for fire sprinkler applications
  • Recommended for use in dry, interior environments

For approval or certificate information, please see individual items.
