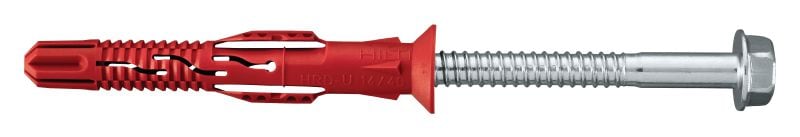

HRD-UGS 14 U Plastic frame anchor
High-performance plastic anchor for frames (carbon steel, hex head)
- Base materials: Concrete (aerated), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
- Head configuration: Hex head
- Approvals / test reports: N/A
Technical Data
Base materials
Concrete (aerated), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration
Hex head
Approvals / test reports
N/A
Material, corrosion
Carbon steel, zinc-plated, Plastic
Environmental conditions
Dry indoor
Type of fastening
Through-fastening
Documents
Features & Applications
Features
- Integrated plastic washer to avoid contact corrosion
- Integrated steel washer for tighter setting
- 70 mm min embedment depth in concrete and hollow brick
Applications

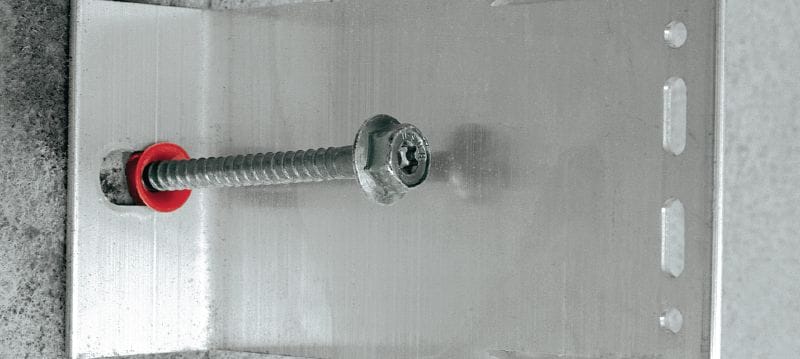

- Fastening metal substructures for ventilated facades
- Typical applications for metal fabricators such as fastening handrails, window bars, railings, balustrades and various ornamental steel elements
For approval or certificate information, please see individual items.
