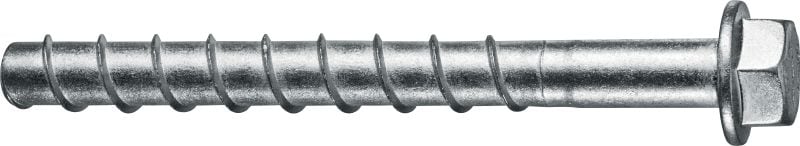

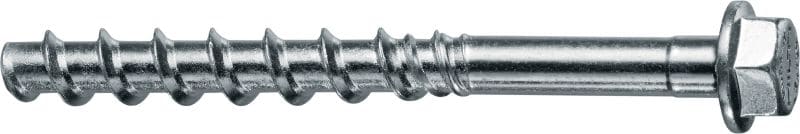

HUS4-H Screw anchor

High-performing hexagonal head screw anchor for fastening to concrete and masonry (carbon steel)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Hex head
Approvals / test reports: ETA, Fire, Seismic

Customers also searched for HUS4 or Screw anchor.

Choose options

Anchor size

8 mm
10 mm
14 mm
16 mm

Anchor length

65 mm
70 mm
75 mm
85 mm
100 mm
130 mm
165 mm

Pack size

16 pc
50 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From KWD 0.851

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Hex head

Approvals / test reports

ETA, Fire, Seismic

Base materials

Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)

Reusable (and removable)

Yes

Cleaning procedures

Manual cleaning, Non-cleaning

PROFIS software

Yes

Environmental conditions

Dry indoor

Material composition

Steel, zinc-plated (min. 5 µm)

Documents

pdf ETA-20/0867, HUS4 for fastening in concrete static loading, ML, English, German, Polish, French [ 38.1 MB ]

Download

pdf ETA-18/1160 HUS4-MAX Bonded screw, English, German, Polish, French [ 7.7 MB ]

Download

pdf aBG-Z-21.8-2137, HUS4 for temporary fastening in concrete, static loading, ML, German [ 1.6 MB ]

Download

pdf UES-ER-969, HUS4 for fastening in concrete, English [ 1.1 MB ]

Download

pdf ETA-23/0936 HUS4 screw anchor in masonry, English, German, Polish [ 22.1 MB ]

Download

Features & Applications

Features

Removable, adjustable (nominal embedment ≥ 60 mm) and reusable – ideal for temporary fastenings

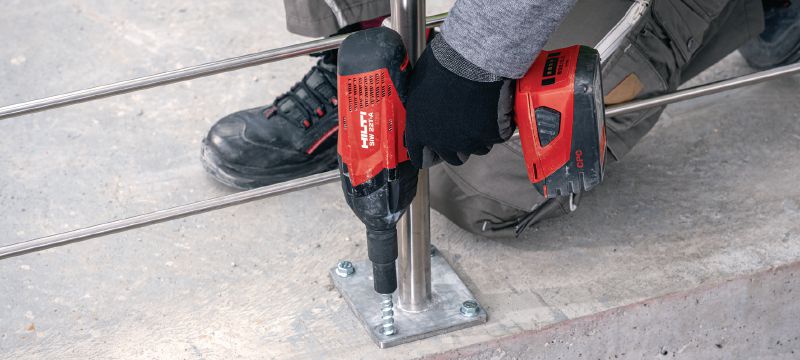

Faster, simpler, safer installation – no cleaning, torque wrench or hammering required, now compatible with the SI-AT-22 Adaptive Torque Module
Improved setting with less blocking – thanks to smaller core diameter and new thread design

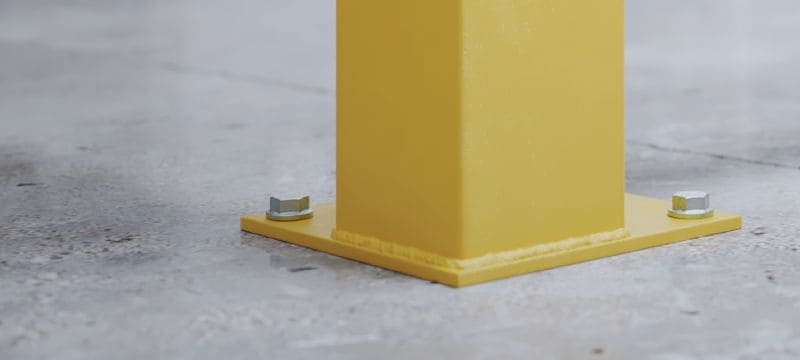

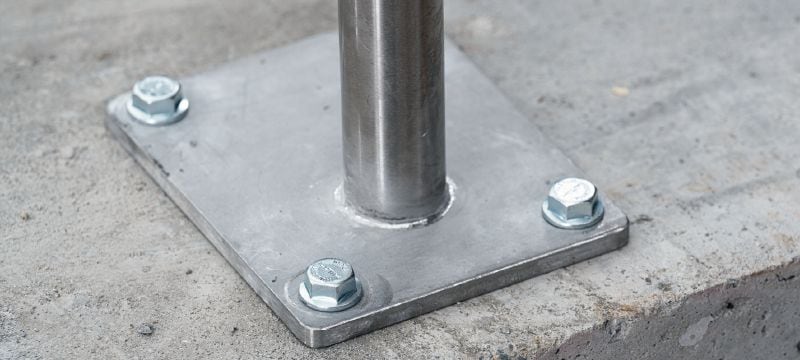

Hexagonal head – with an integrated washer for a neat appearance of through-fastened baseplates
Cost-saving design – pair with PROFIS Engineering software to optimise designs and reduce material costs

Applications

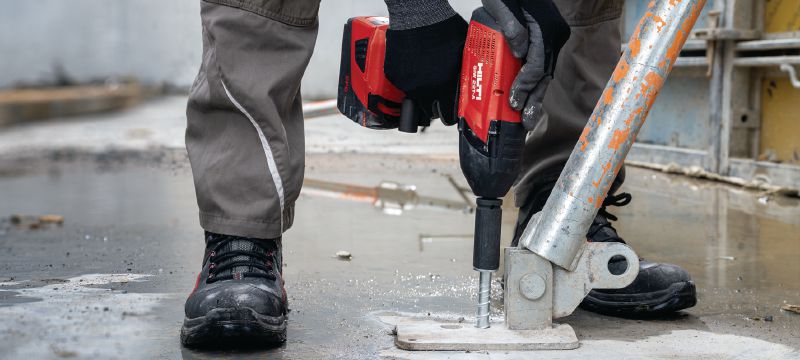

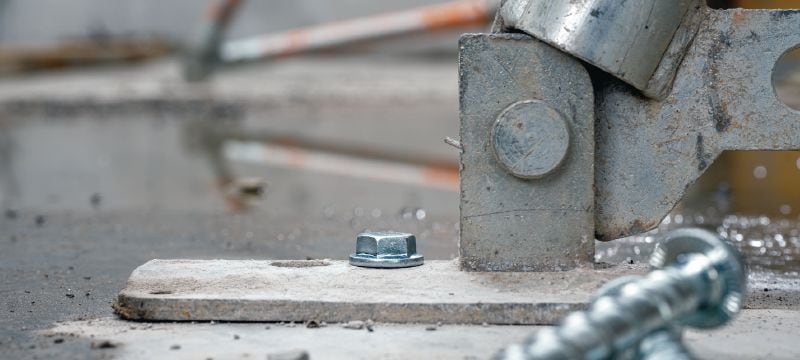

Temporary fastenings to concrete – such as traditional formwork, propping systems and protection barriers
Suitable for use in uncracked and cracked concrete, steel-fibre reinforced concrete, hollow core slabs (size 8-14), metal decks (size 8-10), low-strength concrete and masonry (size 8-10)
Assessed for use in a range of conditions: static, quasi-static, seismic (C1 & C2) and fire
Suitable for permanent fastenings in dry, indoor environments and temporary outdoor use

For approval or certificate information, please see individual items.
