X-FCP-R Checker plate fastener (stainless)

Grating disc X-FCP-R 5/10 #308860

Configurator
Technical Data
Documents
Features & Applications
Related Products
7103.tif
X-FCP, DX 76
X-FCP

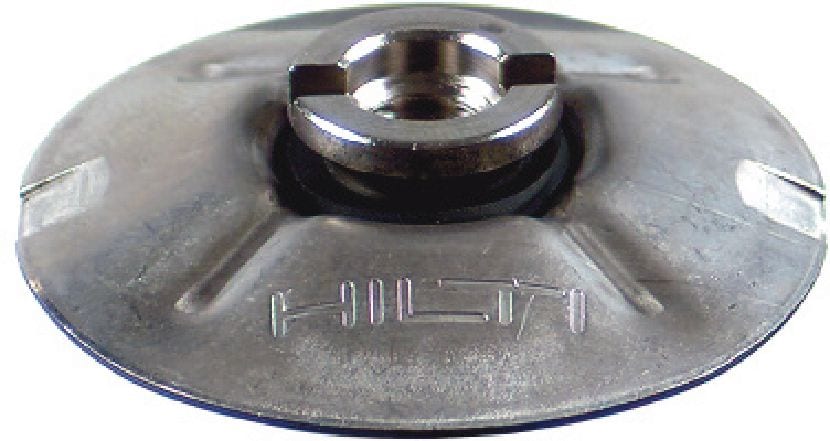

Checker plate fastener disc for threaded studs in highly corrosive environments

  • Application: Grating
  • Approvals: ABS, LR
  • For use with (tools): BX 3, DX 351
ultimate

Customers also searched for grating disc, stainless steel grating discs, fastening grating corrosive environments, industrial fastening or direct fastening.

Choose options

Grating height
  • 5 - 13 mm
Corrosion protection
  • Stainless steel A4(316) or equivalent
Pack size
  • 200 pc
 Product options
Quantity
Packs
Total Pieces
200
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 789.000
KWD 3.940
/
1 each

Technical Data

Application
Grating
Approvals
ABS, LR
For use with (tools)
BX 3, DX 351
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Coastal areas, Outdoor, areas with heavy industrial pollution
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate

Documents

Approval document
Technical information
Documentation
Operating Instruction
pdf ABS Type Approval 22-2285526-PDA for X-FCM-R, X-FCM-F grating and X-FCP checker plate fasteners in marine, off-shore and industrial environments, English [ 110.3 KB ]
pdf ABS Approval 21-2146145-PDA for stainless steel powder-actuated X-CR, X-R and X-ST fasteners, English [ 111 KB ]
pdf LR Approval 97/00078(E4) for stainless steel powder-actuated X-CR fasteners in marine, offshore and industrial application, English [ 1 MB ]

Features & Applications

Features

  • Stainless steel disc for high corrosion resistance
  • Locking tabs on the disc help to prevent self-loosening
  • Non-slip disc surface
  • Cordless solution

Applications

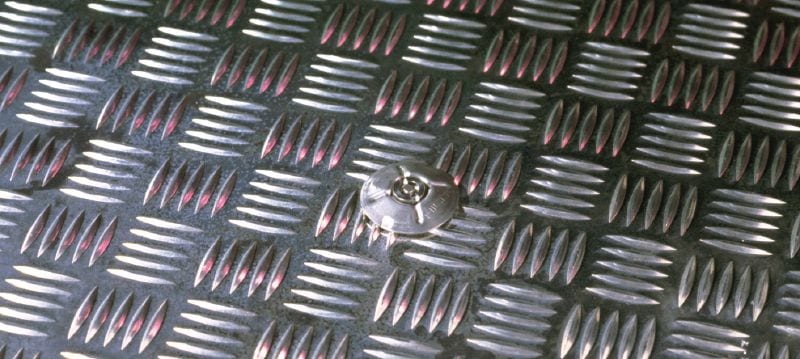

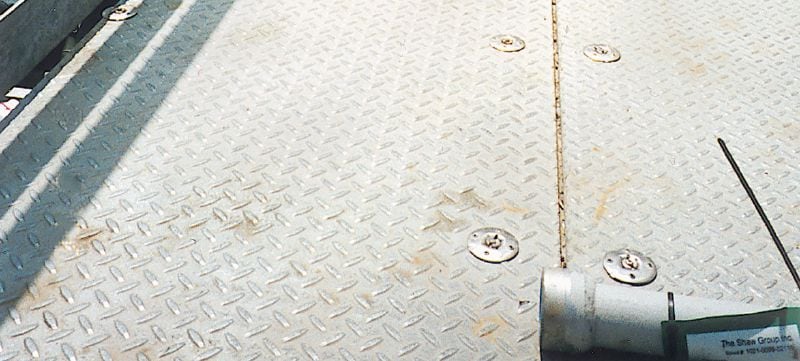

  • Fastening checker plates in highly corrosive environments such as in marine applications, offshore, petrochemical and power plants
  • Fastening checker plates with height of 5-13 mm
