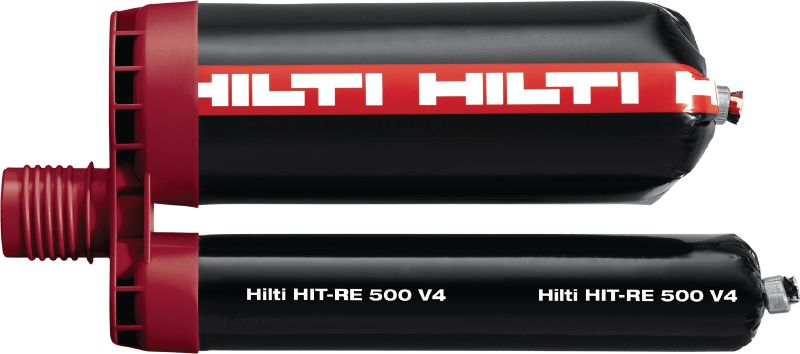

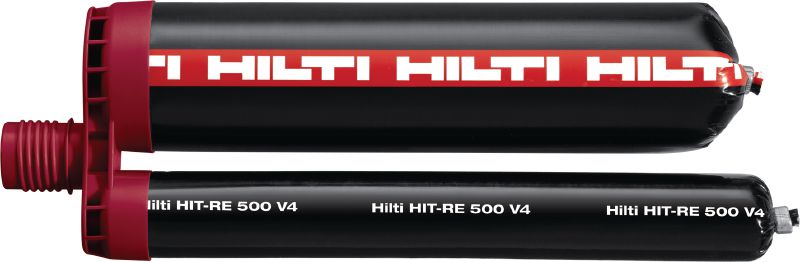

HIT-RE 500 V4 Epoxy anchor
New productItem #r12560055
Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring
- Approvals / test reports: ETA, Fire
- Seismic loading: Yes
- Fatigue loading: Yes
Features
- Ultimate performance and model code-compliant design for virtually any concrete-to-concrete and steel-to-concrete connections – ETA assessment for anchoring inc. C1 and C2 seismic and ETA for rebar inc. fire and seismic
- The first epoxy mortar qualified according to EAD 332402-00-0601 for concrete-to-concrete connections – rigid connections can now be designed and executed with post-installed rebars without splices according to the newest design method TR069
- Suitable for the toughest jobsite conditions – works even in diamond-cored, wet or underwater holes (depending on rod specification and approvals), extremely deep injections, large diameters and at temperatures down to -5°C / 23°F
- Improved bond strength in the most demanding applications – such as cracked concrete and seismic C2 conditions
- Easier to specify and order – use PROFIS Engineering to design baseplate connections and PROFIS Rebar to design concrete-to-concrete connections according to EC2, TR069 or the Hilti Design Method
Applications

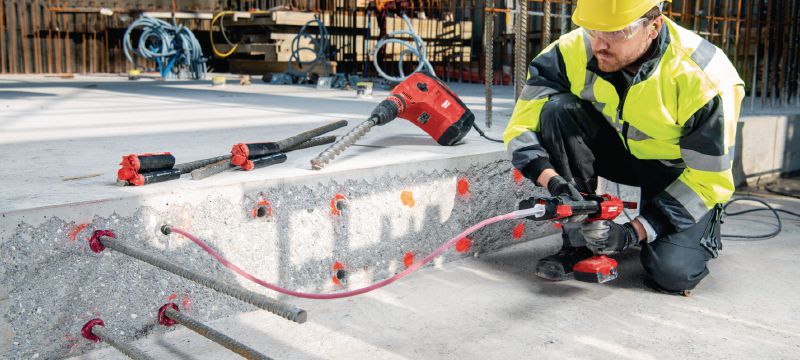

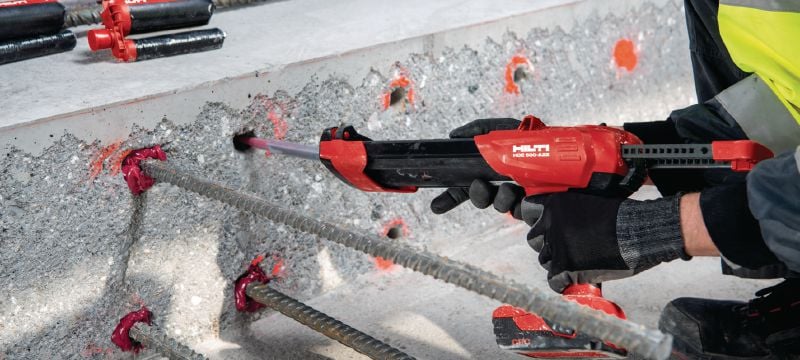

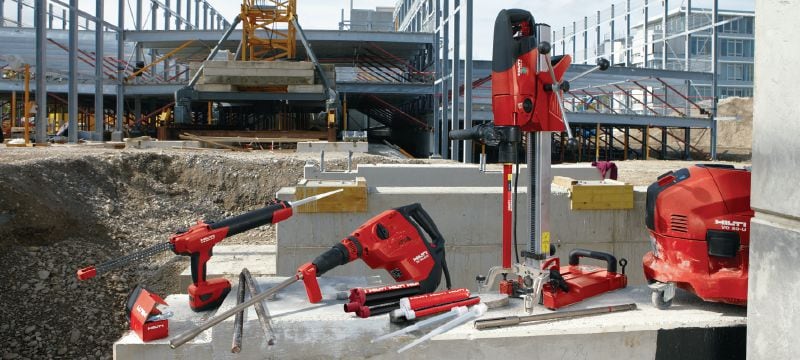

- Structural connections with post-installed rebar (e.g. slab extensions, wall/column connections, stairs, foundations, etc.)
- Structural renovation of buildings, bridges and other civil works, retrofitting and re-strengthening of concrete members

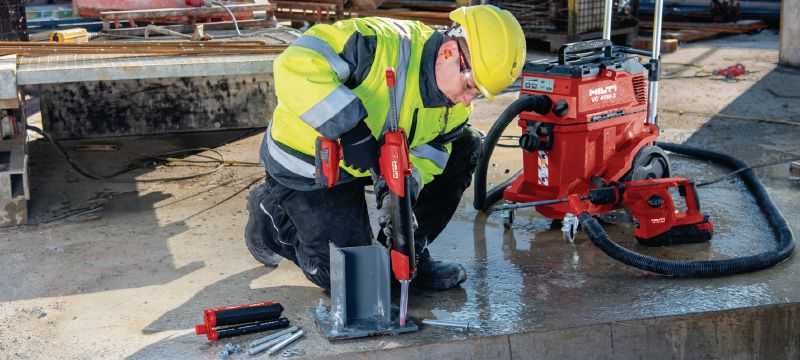

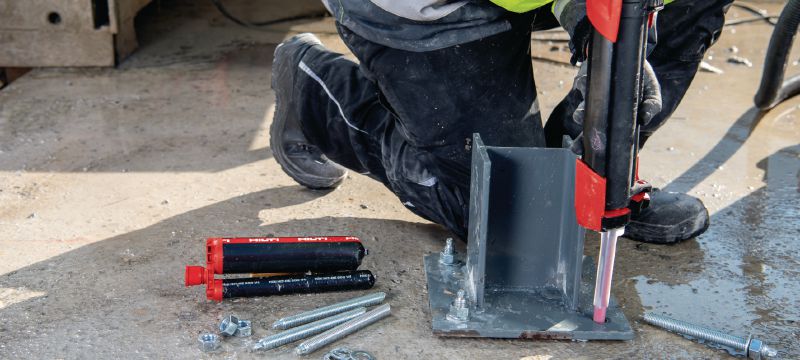

- Anchoring structural steel connections (e.g. steel columns, beams, etc.)

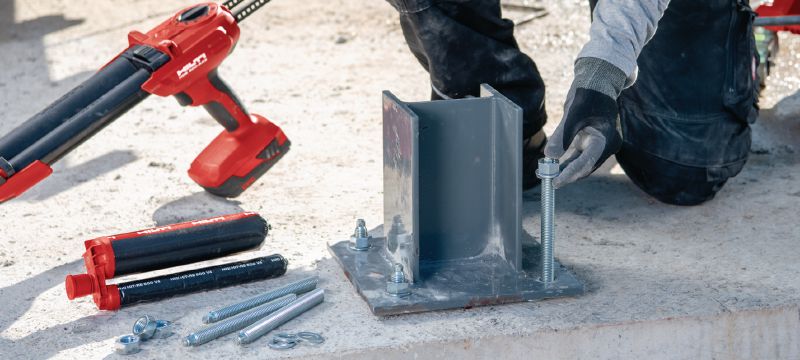

- Fastening structural baseplates, including in cracked concrete and challenging seismic conditions

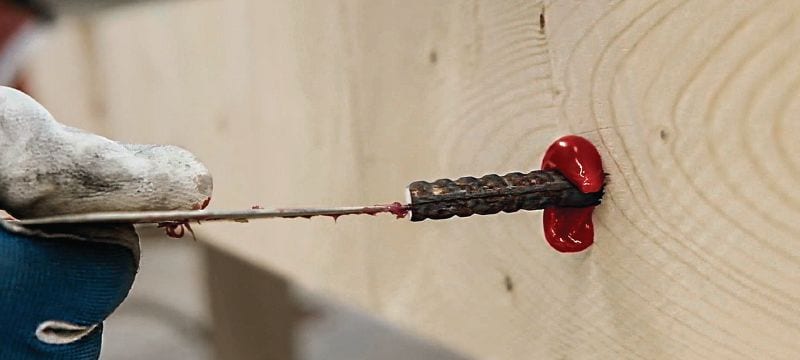

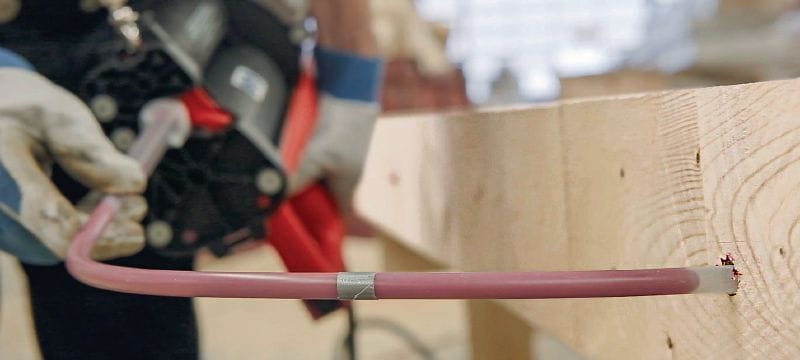

- Fastening in natural stone and wood, including GLT and CLT made from spruce, pine or fir
For approval or certificate information, please see individual items.
Product Information
Technical Data
Documents
-
- ETA-20/0475 HCC-K, English, German, Polish, French, [ 3.8 MB ]
- ETA-20/0697 HCC-U, English, German, French, [ 14.9 MB ]
- ETA-20/0541_HIT-RE 500 V4_Anchor_EC2_100years_112021, English, German, Polish, French, [ 8.9 MB ]
- ETA-20/0793_HIT-RE 500 V4_Rebar_EC2_Seismic_112020, English, French, [ 6.9 MB ]
- ETA-23/0277 HAS-U A4 Fatigue, English, German, Polish, [ 3.9 MB ]
- ETA-20/0539_HIT-RE 500 V4_07/022, English, German, French, Polish, [ 3.7 MB ]
- ETA-20/0540_HIT-RE 500 V4_Rebar_EC2_100years_112020, English, German, French, Polish, [ 11.5 MB ]
-
- Technical data sheet for HIT-RE 500 V4 injectable mortar in concrete, English, [ 918.5 kB ]
- Technical data sheet for HIT-RE 500 V4 injectable mortar in Steel to Concrete, English, [ 722.2 kB ]
- Concrete-to-Concrete Handbook for EU framework, English, [ 18.7 MB ]
- White paper EOTA TR 069 in Post-installed Reinforcement, English, [ 1.3 MB ]
- White Paper Bridges Post-Installed Solution, English, [ 3.4 MB ]
- White paper post installed rebar in Tunnelling, English, [ 1.6 MB ]
- White Paper Tips & Tricks On-site Anchor Testing, English, [ 1.5 MB ]
- White paper Anchor On-site Testing, English, [ 1.2 MB ]
- White paper Ungrouted stand-off base plates EU, [ 1.2 MB ]
- Whitepaper SOFA W4607: Improved design for anchors undershear loading, English, [ 1.8 MB ]
- White Paper Grouted stand-off base plates EU, English, [ 894.9 kB ]
- TR 066 White paper W4595 (EN), English, [ 2.3 MB ]
Instructions for use videos
-
RE 500 V4 How-To Installation with HDB (16:9, EN)
-
RE 500 V4 How-To Underwater Injection (16:9, EN)
-
RE 500 V4 How-To Installation with hammer drill (16:9, EN)
