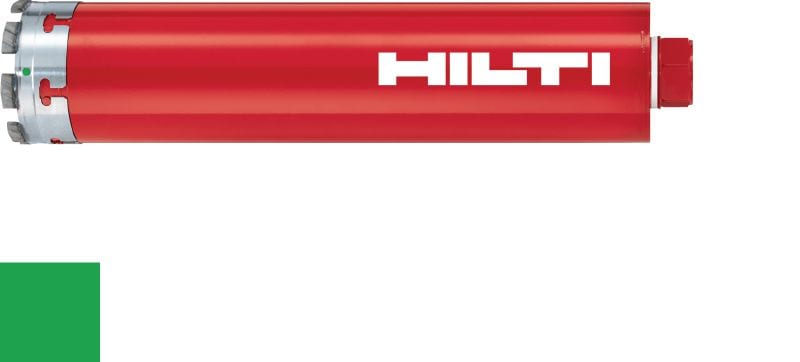

SPX-L abrasive core bit

Ultimate core bit for coring in very abrasive concrete – for <2.5 kW tools (without connection end)

  • Base materials: Concrete (abrasive)
  • Drilling mode: Rig-mounted
  • Wet or dry operation: Wet

Choose options

Diameter
  • 12 mm
  • 14 mm
  • 16 mm
  • 18 mm
  • 20 mm
  • 22 mm
  • 24 mm
  • 25 mm
  • 28 mm
  • 30 mm
  • 32 mm
  • 35 mm
  • 37 mm
  • 40 mm
  • 42 mm
  • 47 mm
  • 52 mm
  • 77 mm
  • 102 mm
  • 132 mm
  • 152 mm
  • 202 mm
Working length
  • 320 mm
  • 430 mm
Connection end
  • BI (Hilti)
  • No connection end
Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From KWD 61.230

Technical Data

Base materials
Concrete (abrasive)
Drilling mode
Rig-mounted
Wet or dry operation
Wet
X-Change module
Yes (52-202 mm)
Laser-welded segments
Yes
Segment height
10 mm

Features & Applications

Features

  • Hilti Equidist technology (35 mm diameter and above) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit
  • Unique Hilti X-Change module system (52-202 mm diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
  • Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
  • Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content

Applications

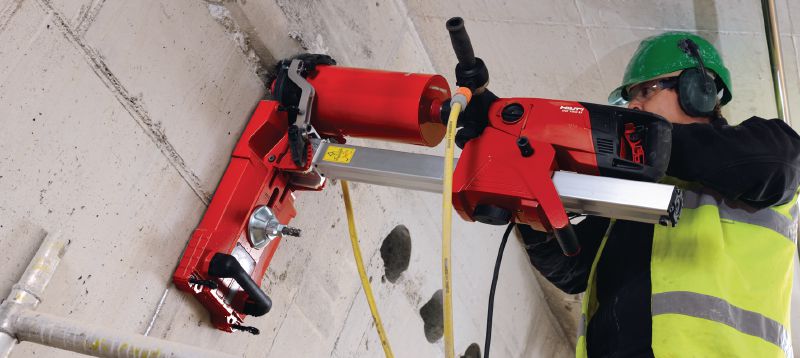

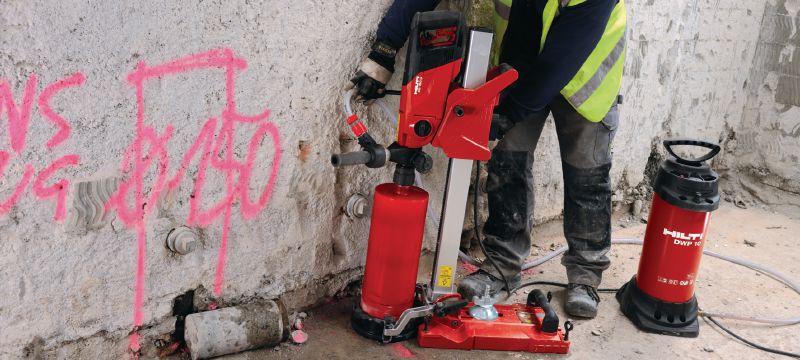

  • Rig-based wet coring in very abrasive concrete

For approval or certificate information, please see individual items.
