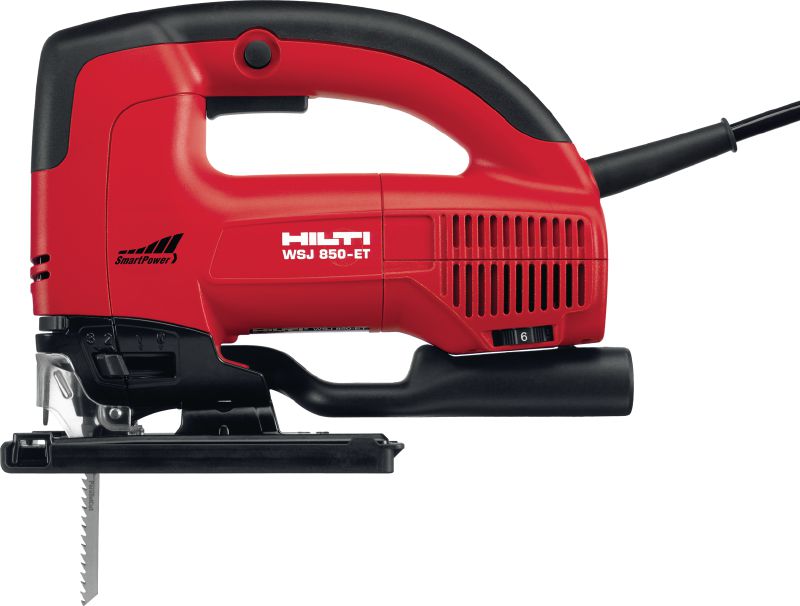

WSJ 850-ET D-handle orbital jig saw

850W orbital jig saw with top handle

  • Handle: Hoop grip
  • Weight according to EPTA-Procedure 01/2003 without battery: 2.7 kg
  • Base material: Wood, Metal, Sandwich panel

Customers also searched for jig sawcutting wood or tools & equipment.

Technical Data

Handle
Hoop grip
Weight according to EPTA-Procedure 01/2003 without battery
2.7 kg
Base material
Wood, Metal, Sandwich panel
Stroke length
28 mm
Stroke rate
3000 strokes/minute
Max. bevel angle
45 °
Max. cutting depth in mild steel
10 mm
Max. cutting depth for wood
150 mm
Dust removal system available
WSJ DRS
A-weighted emission sound pressure level
87 dB (A) 1
Triaxial vibration value for cutting board (ah,B)
9.0 m/s² 2
Uncertainty (K) for triaxial vibration value for cutting board (ah,B)
1.8 m/s² 3
Triaxial vibration value for cutting sheet metal (ah,M)
4.0 m/s² 4
Uncertainty (K) for triaxial vibration value for sawing in metal (ah)
1.5 m/s² 5
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)
  5. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Virtually dustless operation – for faster progress and a more precise result
  • Extremely high cutting performance with a minimum of dust
  • On-board dust removal system – provides an unobstructed view of the cutting line without the need for a bulky extractor hose or vacuum
  • The dust container can be attached or removed in seconds (no tools required)
  • Hilti Smart Power technology automatically adjusts power output to suit the material being cut – delivering consistently high cutting performance and protecting the motor from overload

Applications

  • Wood and wood composites up to 150 mm
  • Timber, wood with nails
  • Metals and metal alloys
  • Plastics
  • Sandwich materials

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services
Lifetime_1_en_us_line.eps

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
