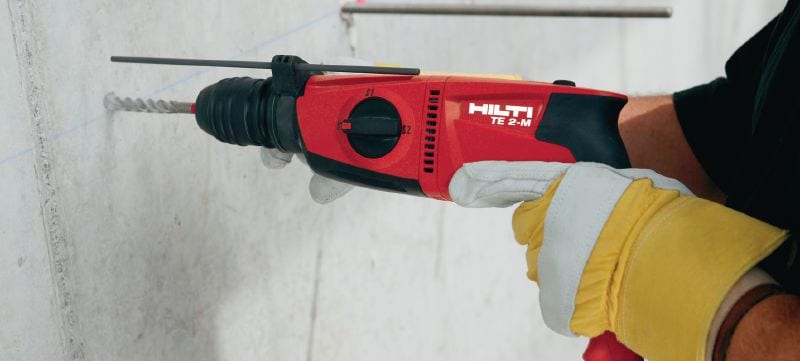

TE 2-M Rotary hammer

Compact, multi-purpose triple-mode SDS Plus (TE-C) rotary hammer – for hammer drilling and rotary-only drilling

Weight according to EPTA-Procedure 01/2003 without battery: 2.9 kg
Optimum hammer drilling range: 4 - 12 mm
Single impact energy: 1.8 J

Customers also searched for hammer drilling, drilling concrete, drilling masonry, drilling wood and steel or tools & equipment.

Choose options

Pack size

1 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From KWD 141.000

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

2.9 kg

Optimum hammer drilling range

4 - 12 mm

Single impact energy

1.8 J

Working mode

Hammer drilling, Drilling

Hammer drilling diameter range

4 - 22 mm

Hammer drilling RPM

1200 rpm

Full hammering frequency

4600 impacts/minute

Functionality

2nd gear for drilling in metal, Removable chuck, Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.1 m/s² ¹

Triaxial vibration for chiselling in concrete

13.5 m/s² ²

A-weighted emission sound pressure level

91 dB (A) ³

Dimensions (LxWxH)

360 x 89 x 203 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

Three-mode SDS Plus (TE-C) rotary hammer – for hammer drilling plus 2 gears for rotary-only drilling
Sturdy motor with high load rating for maximum reliability
Quick-change TE-C Click chuck and user-friendly selector switch for high working convenience
Electronic switch for precise hole-starting
360° side handle adjusts easily for preference or for use in tight spaces

Applications

Everyday hammer drilling in concrete, masonry and natural stone
2 gears for optimal drilling in steel, wood and plastics using optional Quick-Release Chuck
Driving screws using the optional bit holder
Reverse feature assists in the removal of stuck drill bits

For approval or certificate information, please see individual items.
