TE 1 Rotary hammer

Name: TE 1 Rotary hammer
Brand: Hilti
SKU: r321

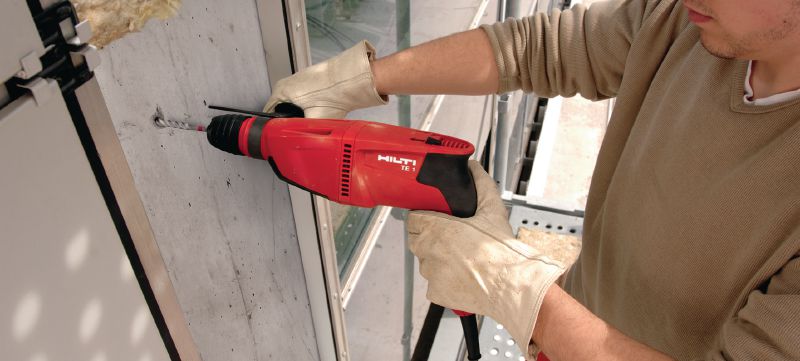

Compact and light-weight single-mode, pistol-grip SDS Plus (TE-C) rotary hammer – for drilling in concrete

Customers also searched for hammer drilling, drilling concrete, drilling masonry, drilling or tools & equipment.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery

2.4 kg

Optimum hammer drilling range

4 - 12 mm

Single impact energy

1.5 J

Working mode

Hammer drilling

Hammer drilling diameter range

4 - 16 mm

Hammer drilling RPM

930 rpm

Full hammering frequency

4500 impacts/minute

Functionality

Reverse mode, Depth gauge

Triaxial vibration value for hammer drilling into concrete (ah,HD)

12.6 m/s² ¹

A-weighted emission sound pressure level

92 dB (A) ²

Dimensions (LxWxH)

330 x 79 x 203 mm

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

For approval or certificate information, please see individual items.

3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
After the no-cost period, repair costs are capped
Product warranty against parts and manufacturing irregularities for as long as we service the tool
Product warranty against parts and manufacturing irregularities for 20 years

No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
After the no-cost period, repair costs are capped for as long as we service the tool
3-month no-repair-cost period again after every paid repair
Materials and workmanship warranty over the entire life of the tool
Pick-up and delivery service
