Nuron

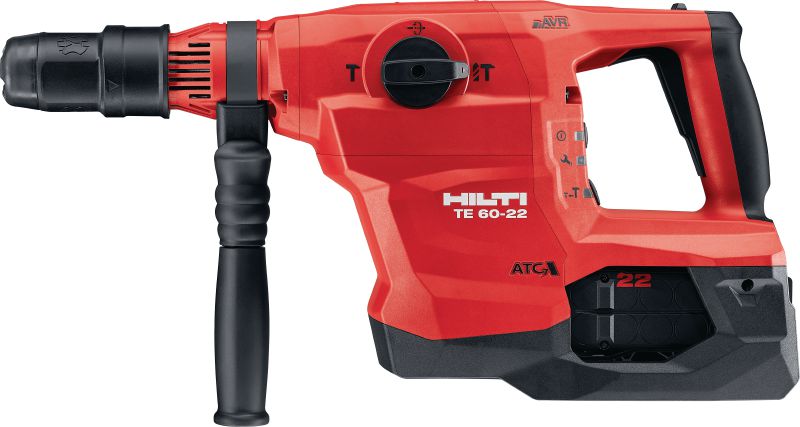

TE 60-22 Cordless rotary hammer

Cordl. combihammer TE 60-22 case #2253098

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
L125199 (222905)
L125198 (222907)
L141697_cropped (225716)
L141683_cropped (225715)
L142087_cropped (2209354)
L142711_HNA_cropped (1913086)
L142702_HNA_cropped (1913077)
L142575_cropped (227399)
L142355_cropped (227378)
L141559_cropped (225705)
L141527_cropped (225696)

Cordless SDS Max (TE-Y) rotary hammer with Active Vibration Reduction and Active Torque Control for heavy-duty concrete drilling and chiselling (Nuron battery platform)

  • Weight according to EPTA-Procedure 01/2003 without battery: 6.3 kg
  • Optimum hammer drilling range: 18 - 40 mm
  • Hammer drilling diameter range: 12 - 100 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 1,020.000
KWD 1,020.000
/
1 each

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
6.3 kg
Optimum hammer drilling range
18 - 40 mm
Hammer drilling diameter range
12 - 100 mm
Rated voltage
21.6 V
Single impact energy
8.1 J
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Hammer drilling, Chiselling, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.7 m/s² 1
Triaxial vibration for chiselling in concrete
9.1 m/s² 2
Dust removal system available
TE DRS-Y, TE DRS-D
A-weighted emission sound pressure level
98 dB (A) 3
A-weighted emission sound power level
106 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see Operating Instruction for more details)
  4. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction TE 60-22 (04), Arabic, Czech, Danish, English, Estonian, Finnish, Japanese, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Chinese [ 6.1 MB ]

Features & Applications

Features

  • Outsized performance – weighing in at just 8.1 kg (inc. B 22-170 battery), TE 60-22 has the drilling and chipping power you’d expect from a much heavier cordless rotary hammer
  • Maximised working time per charge – brushless motor and more efficient Nuron batteries help you get up to 3x more battery run time
  • Upgraded safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams, and Active Vibration Reduction (AVR) for increased shielding from vibration
  • Longer trigger time – minimal vibration so you can work with fewer interruptions
  • On the Nuron battery platform – cordless rotary hammers without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow

Applications

  • Extremely versatile rotary hammer drill for heavy-duty concrete construction work as well as building services installation
  • Drilling holes for post-installed rebar connections in concrete (recommended diameter range 20-40 mm)

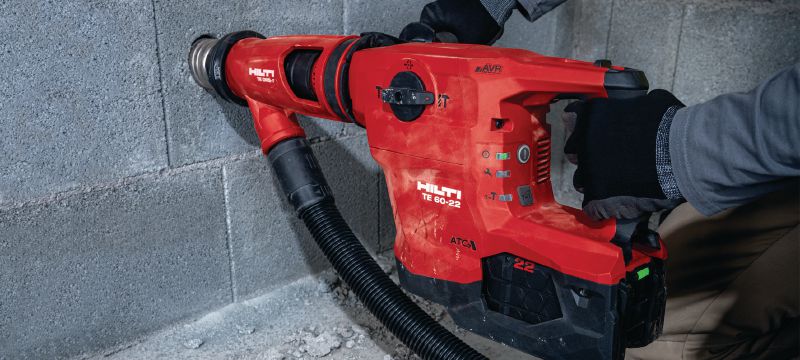

  • Drilling holes for pipe penetrations or electrical outlets through concrete and masonry.

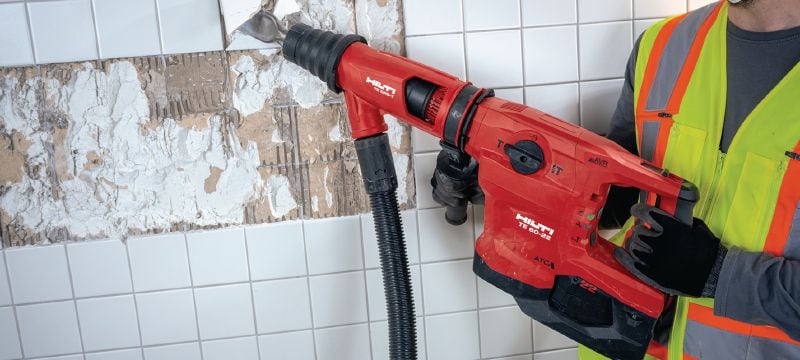

  • Chiselling openings and channels in concrete or masonry
  • Digging holes in earth – SDS Max clay spade available separately

Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
