SIW 22T-A 1/2" Cordless impact wrench

Cordl. impact wrench SIW 22T-A kit #409459

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
SIW 22T-A (25225)
L030685_HNA (202860)
Impact Wrench
L032974.tif
33454.tif
SIW 22T-A (26318)

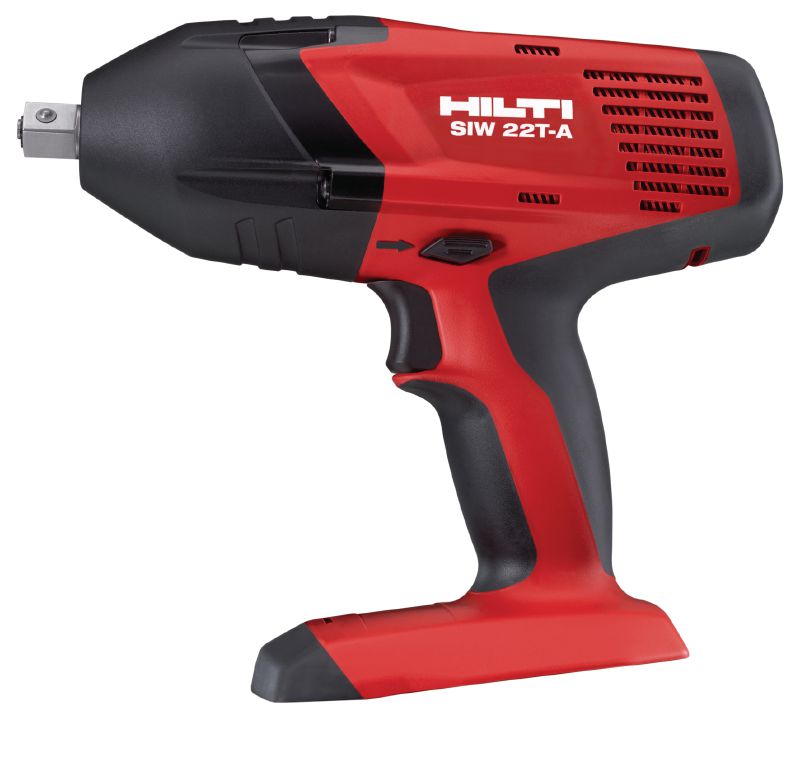

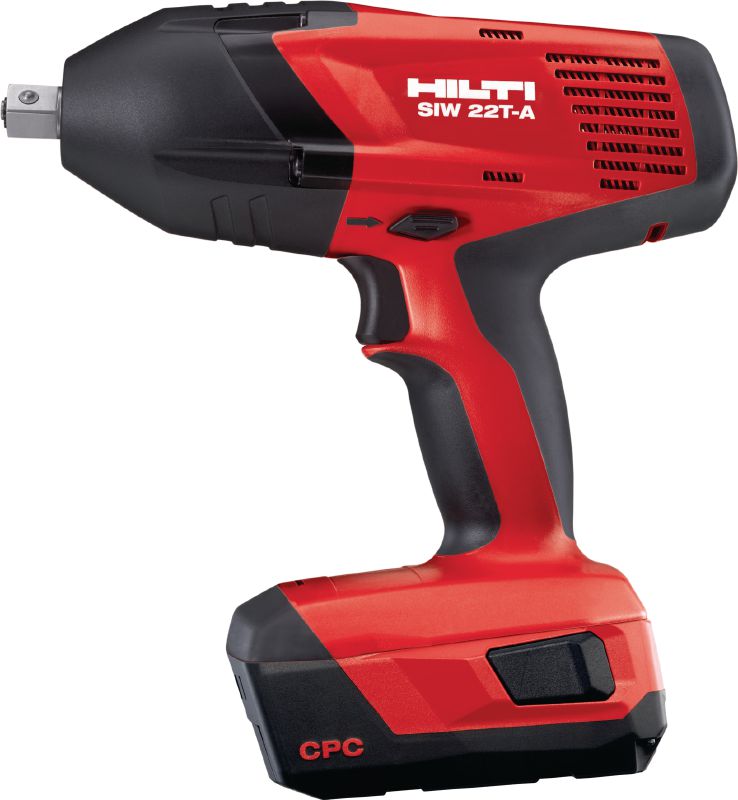

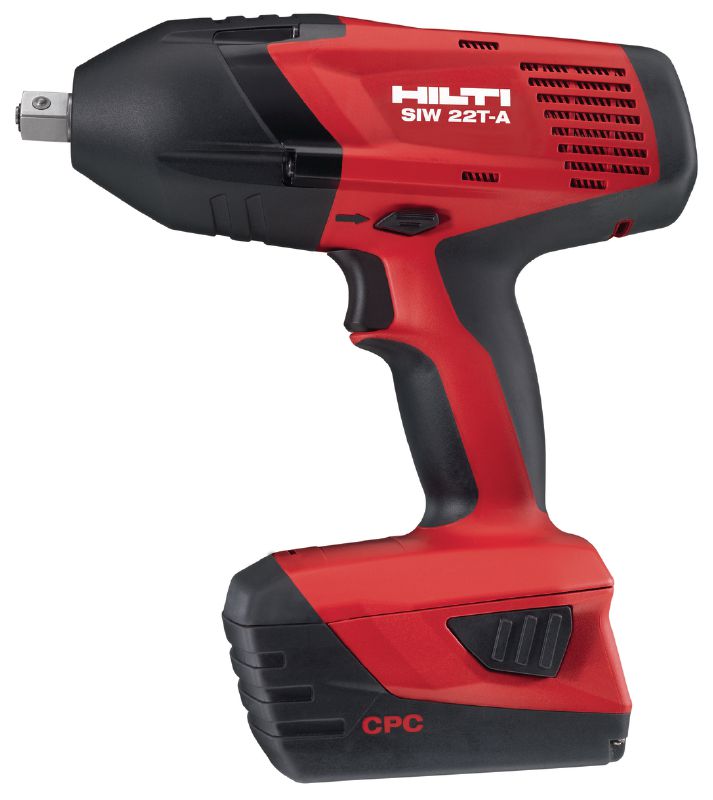

Ultimate-class 22V high-torque cordless impact wrench with 1/2" detent pin anvil for anchoring and bolting

  • Anvil type: 1/2" detent pin
  • Maximum torque: 450 Nm (1)
  • Full hammering frequency: 2500 impacts/minute

Customers also searched for setting anchors, tightening bolts, driving screws, cordless tools or tools & equipment.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Anvil type
1/2" detent pin
Maximum torque
450 Nm (1) 1
Full hammering frequency
2500 impacts/minute
Number of gears
1
No load RPM
gear 1: 2000 rpm
Dimensions (LxWxH)
232 x 94 x 258 mm
Tool body weight
2.17 kg
A-weighted emission sound pressure level
95.5 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 22T-A (01), Arabic, cn, Danish, English, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 8.2 MB ]
pdf Operating Instruction China RoHS II, cn, English, Chinese [ 14.2 KB ]

Features & Applications

Features

  • ½" square drive with heavy-duty detent pin retention for security and quicker socket changing
  • Reduce uncontrollable spinning thanks to tangential impact – helps to make electric impact wrenches less tiring to use
  • High-grade steel anvil featuring special heat treatment for extra-long life
  • Optimised as a system for driving Hilti HUS screw anchors and HRD frame anchors
  • Finely-tuned impact mechanism – for maximised efficiency from a battery-powered impact wrench

Applications

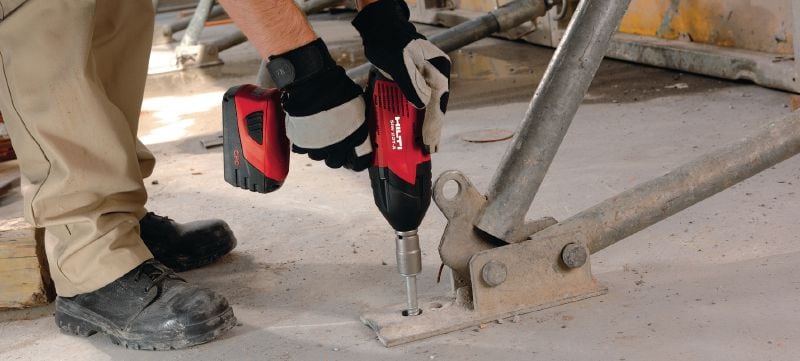

  • Driving HUS3 screw anchors from 8 mm to 14 mm diameter in concrete

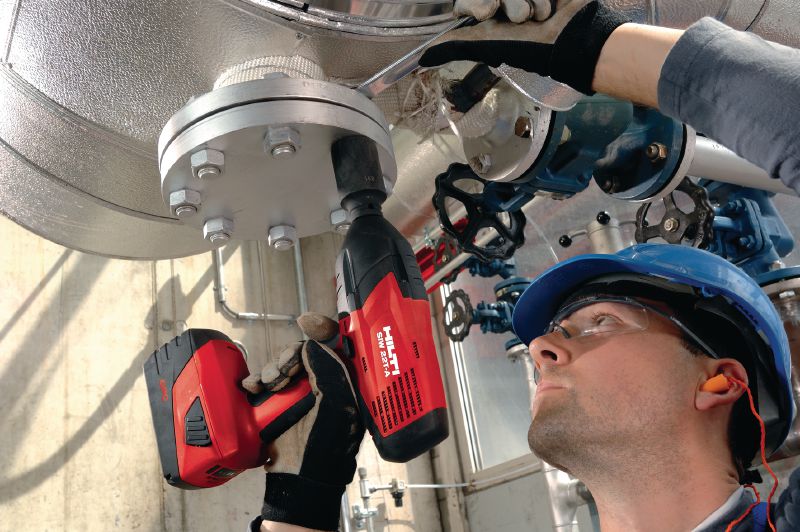

  • Tightening and releasing nuts and bolts from M12 to M20
  • Assembling steel profiles, timber or pre-cast concrete components
  • Installing HCA coil anchors in concrete
  • Driving lag bolts and chipboard screws up to 5/8" in wood (pre-drilling may be necessary)

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
