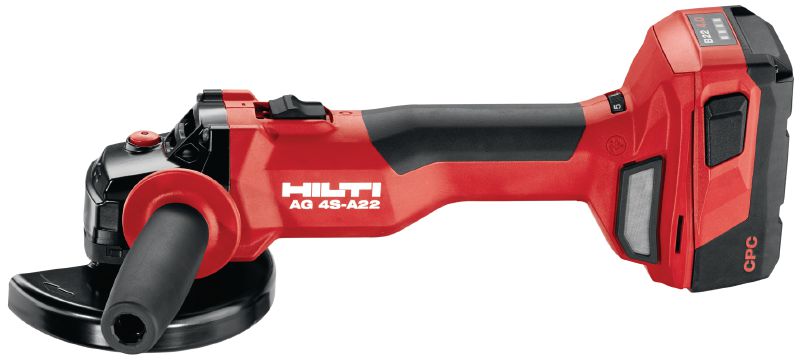

AG 4S-A22 Cordless angle grinder

Cordl. angle grinder AG 4S-A22-125 box #2206010

22V cordless angle grinder with electronic speed control and brushless motor for everyday cutting and grinding with discs up to 5" or 125 mm

  • Rated voltage: 21,6 V
  • Disc diameter: 125 mm
  • Max. cutting depth: 34 mm

Choose options

Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Rated voltage
21,6 V
Disc diameter
125 mm
Max. cutting depth
34 mm
No load RPM
gear 1: 3400 rpm; gear 2: 3800 rpm; gear 3: 4400 rpm; gear 4: 5200 rpm; gear 5: 6300 rpm; gear 6: 7600 rpm
Trigger type
Lockable on / off
Dimensions (LxWxH)
306 x 85 x 138 mm
A-weighted emission sound pressure level
81.5 dB (A) 1
Triaxial vibration value for angle grinding (ah,AG)
4.7 m/s² 2
Disclaimer
Use the specified guard for the type of disc selected
Weight according to EPTA-Procedure 01/2003 without battery
3.11 kg
  1. According to the applicable product standard (see Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Brushless motor – lasts up to three times longer (no commutator to damage and no carbon brushes to change)
  • Very slim design with lock-on switch – this cordless angle grinder fits firmly in your grip, for more comfortable handling and precise control even in hard-to-reach places
  • Precise speed control from 3400-7600 rpm – you can use higher speeds to cut and grind very quickly, while the lower speeds help you to achieve a perfect surface finish
  • Active Torque Control (ATC) stops the tool body from spinning uncontrolledly if the disc jams – helping to reduce a common safety hazard
  • Cordless tool platform – the same battery for all your 22V Hilti tools

Applications

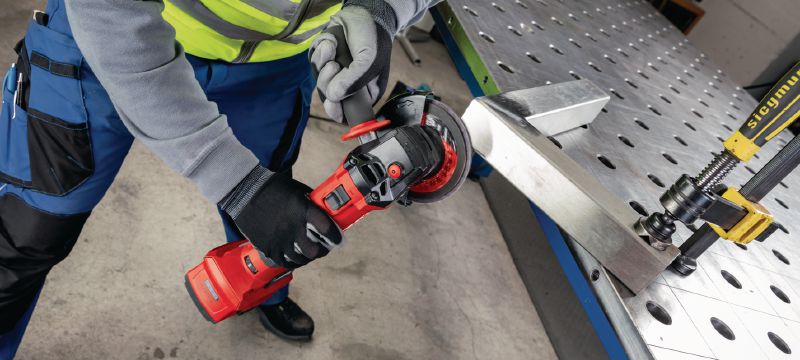

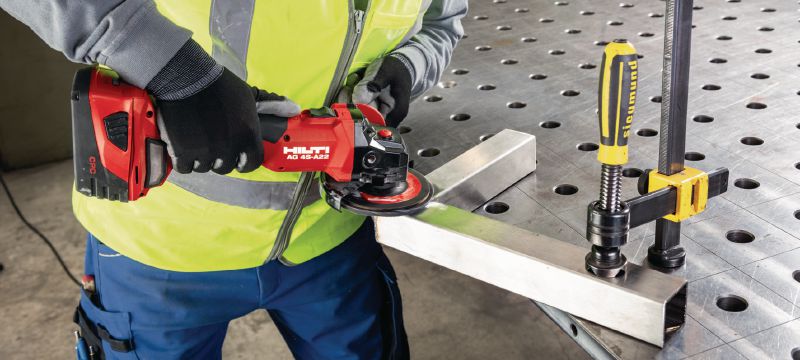

  • Cutting and grinding steel, stainless steel and other metals
  • Finishing metal
  • Deburring and polishing metal

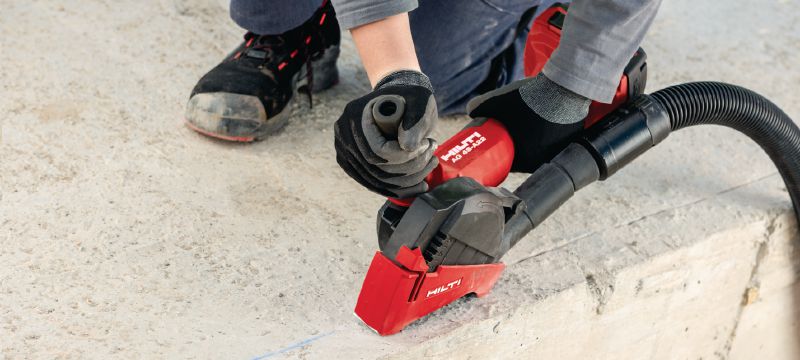

  • Cutting and grinding mineral materials
  • Cutting tiles using continuous-rim diamond discs

Services

Lifetime_2_en_us_line.eps

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
