SF 6H-A22 Cordless hammer drill driver

Cordl. ham. dr. driver SF 6H-A22 case #2184337

Configurator
Technical Data
Documents
Features & Applications
Related Products
L116190 (197159)
L116207 (197168)
L116808_cropped (199919)
L116824_cropped (199922)
L116827_cropped (199894)
L116844_cropped (199948)
L116850_cropped (199942)
L117233_cropped (199914)
L117242_cropped (199956)
L117246_cropped (199909)
L117262_cropped (199895)
L117264_cropped (199907)
L117342_cropped (199912)
L117465_cropped (199955)
L117471_cropped (199915)

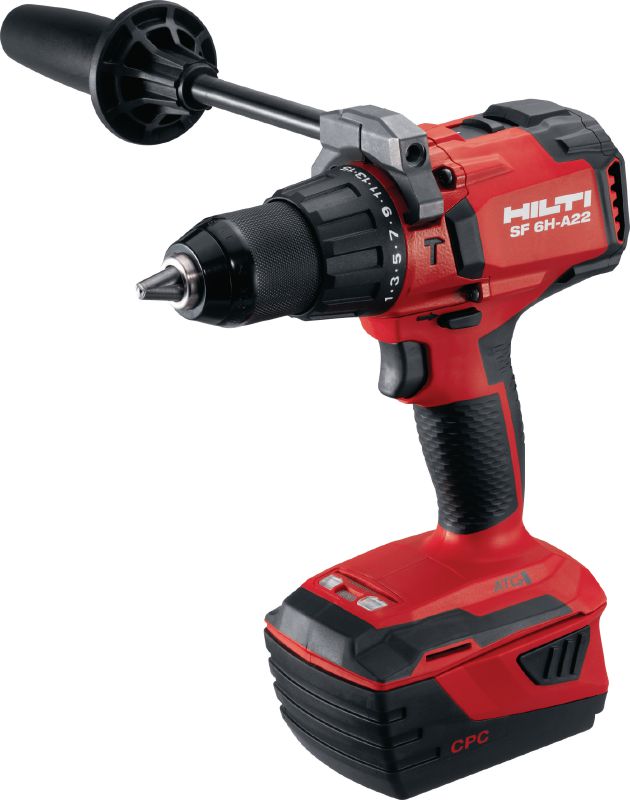

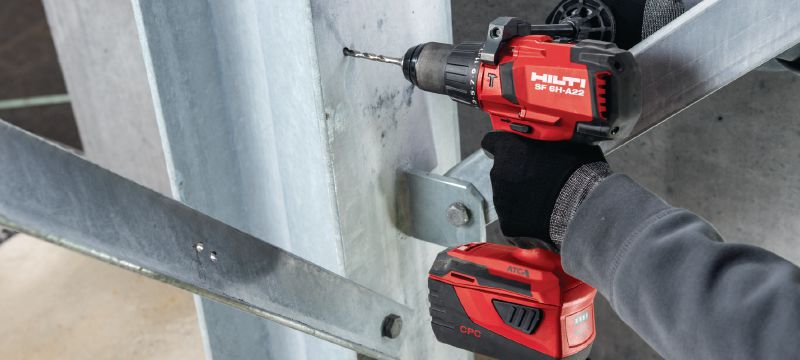

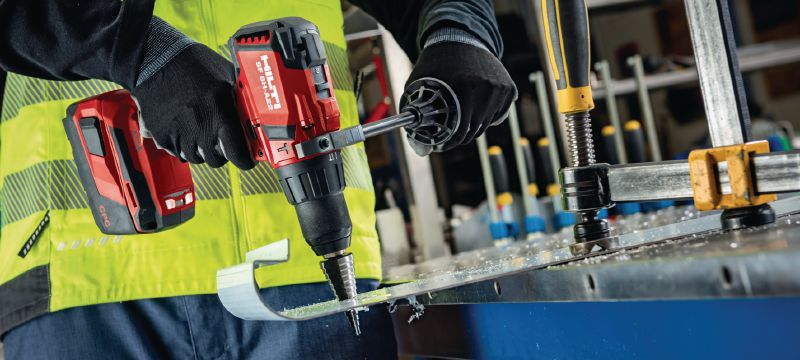

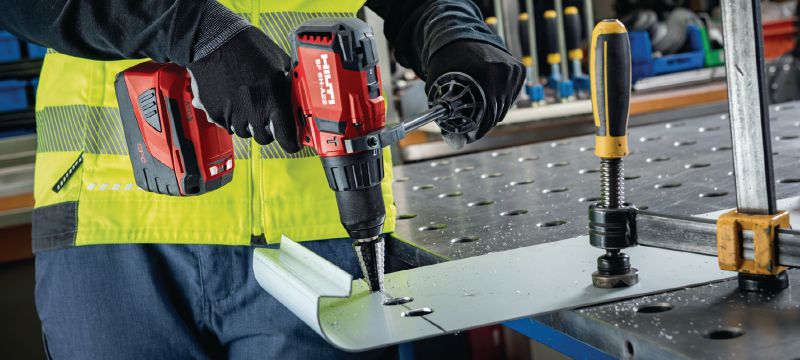

Power-class cordless 22V hammer drill driver with Active Torque Control and electronic clutch for universal use on wood, metal, masonry and other materials

  • Maximum torque (soft/hard joint): 65 Nm (soft joint), 80 Nm (hard joint)
  • No load RPM: gear 1: 490 rpm; gear 2: 2000 rpm
  • Chuck clamping range: 2 - 13 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Maximum torque (soft/hard joint)
65 Nm (soft joint), 80 Nm (hard joint)
No load RPM
gear 1: 490 rpm; gear 2: 2000 rpm
Chuck clamping range
2 - 13 mm
Number of gears
2
Torque increments
15
Dimensions (LxWxH)
209 x 87 x 212 mm
Tool body weight
1.686 kg
A-weighted emission sound pressure level
91 dB (A) 1
Rated voltage
21.6 V
  1. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction SF 6-A22/SF 6H-A22 (02), Arabic, Bulgarian, cn, Greek, English, Japanese, Kazakh, Korean, Romanian, Russian, Turkish, Ukrainian, Chinese, Serbian [ 9.7 MB ]
pdf Operating Instruction SF 6-A22, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.6 MB ]
pdf Operating Instruction SF 6H-A22, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 1.6 MB ]

Features & Applications

Features

  • Outstanding performance-to-size ratio
  • Hilti’s exclusive Active Torque Control provides additional protection from tool over-rotation when bits stick
  • All metal gearbox, rubber bumpers and glass fibre reinforced housing ensure maximum robustness
  • Brushless motor provides high torque and application speeds while efficiently using battery power
  • Dual LED work lights in the tool foot illuminate your work area with minimal shadows

Applications

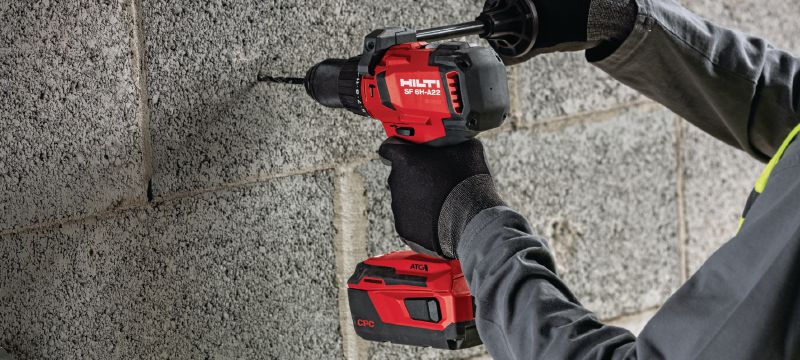

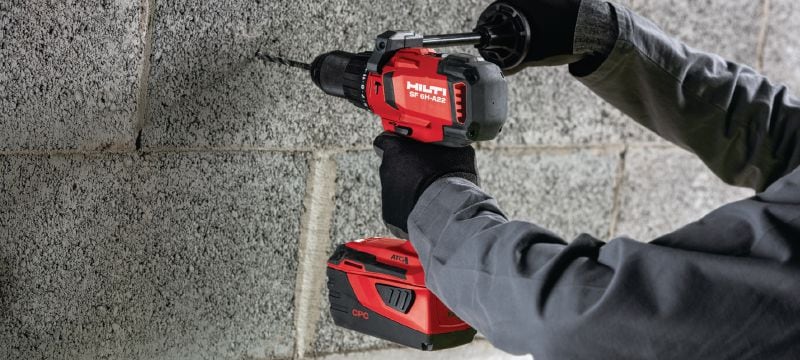

  • Hammer drilling in diameters up to 1/2" in brick, masonry and aerated concrete
  • Hammer drilling in diameters up to 14 mm in brick, masonry, sand-lime block and aerated concrete

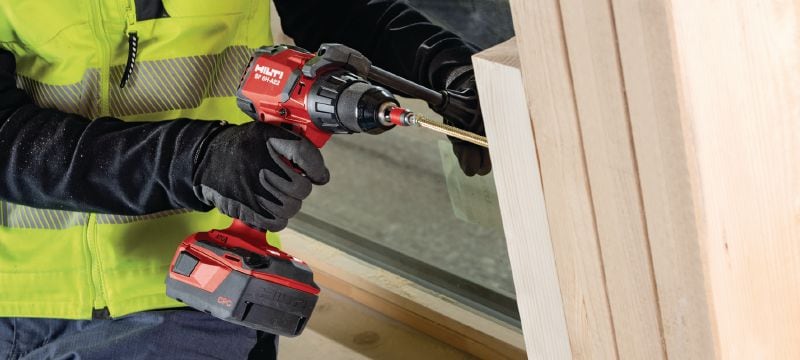

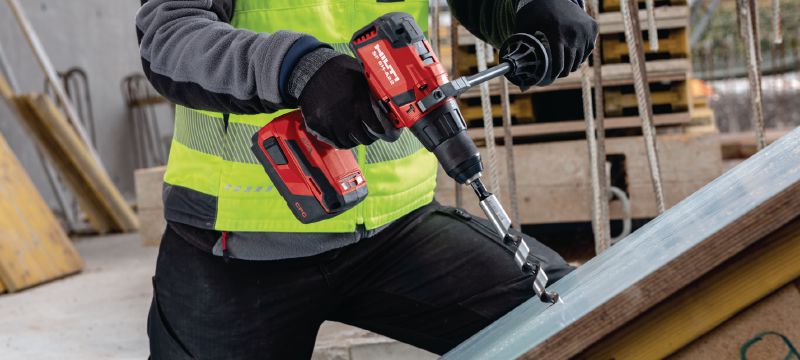

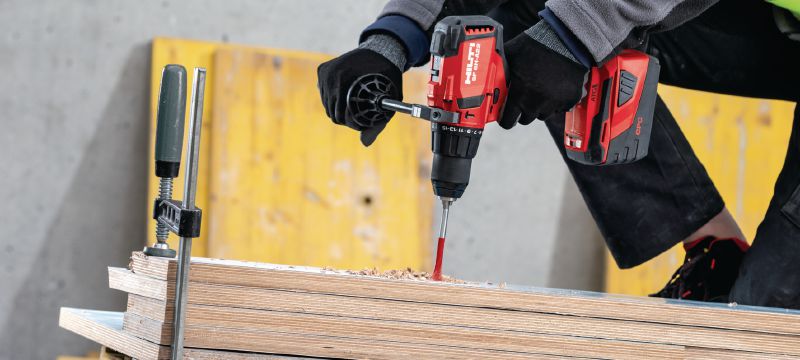

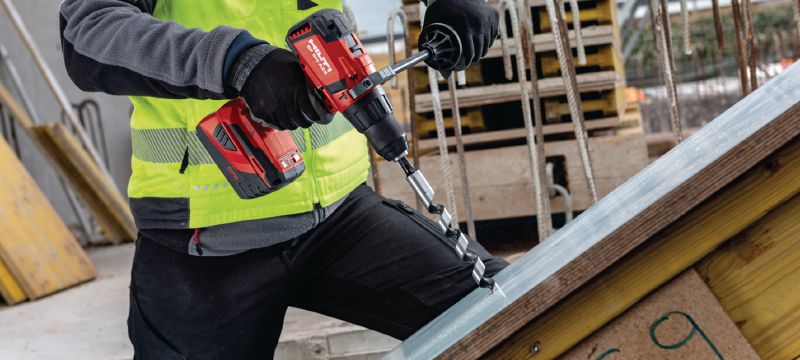

  • Drilling with auger and spade bits up to 32 mm diameter in wood

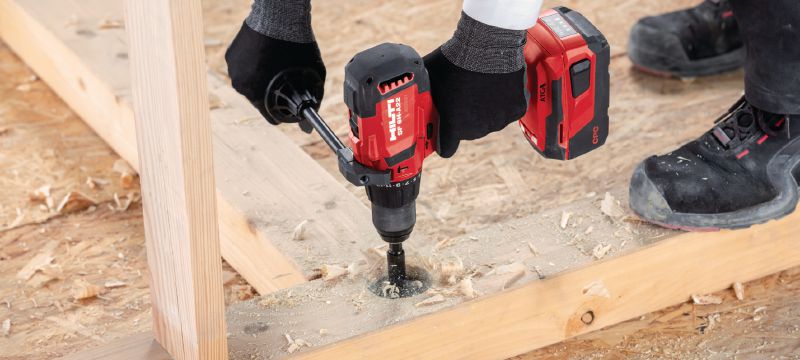

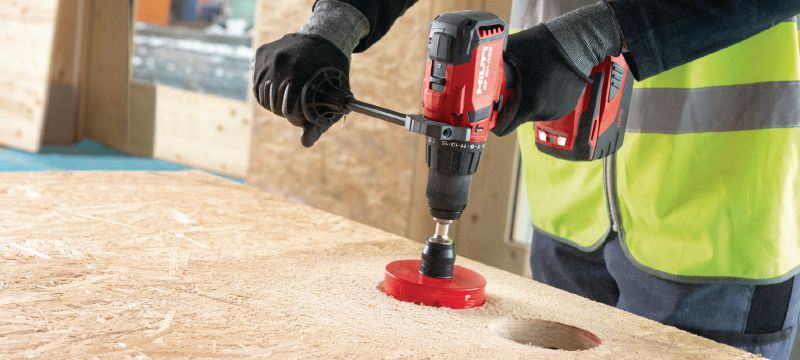

  • Cutting recesses and through-holes with hole saws up to 5" diameter
  • Cutting recesses and through-holes with hole saws up to 125 mm diameter
