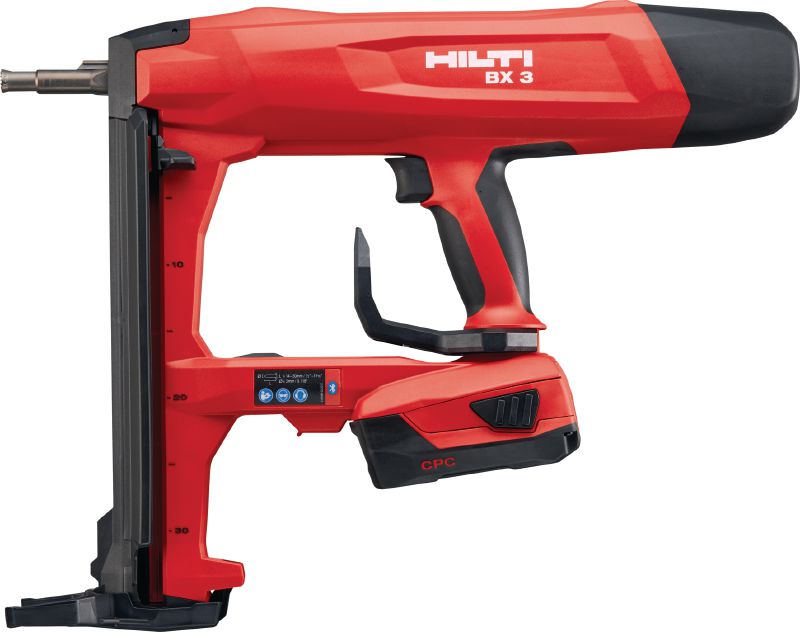

22V cordless nailer for interior finishing applications

  • Dimensions (LxWxH): 474 x 134 x 368 mm
  • Tool body weight: 3.478 kg
  • Fastener intake: Collated

Choose options

Hilti Connect
  • Yes
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Dimensions (LxWxH)
474 x 134 x 368 mm
Tool body weight
3.478 kg
Fastener intake
Collated
Fastener length range
14 - 30 mm
Bluetooth
Yes
Power source type
22 V battery platform
Rated voltage
21.6 V

Documents

Technical information
Operating Instruction
pdf [PDS_T_002_BX] BX 3 Battery-actuated tool - Data Sheet 05/2025, English [ 1.3 MB ]

Features & Applications

Features

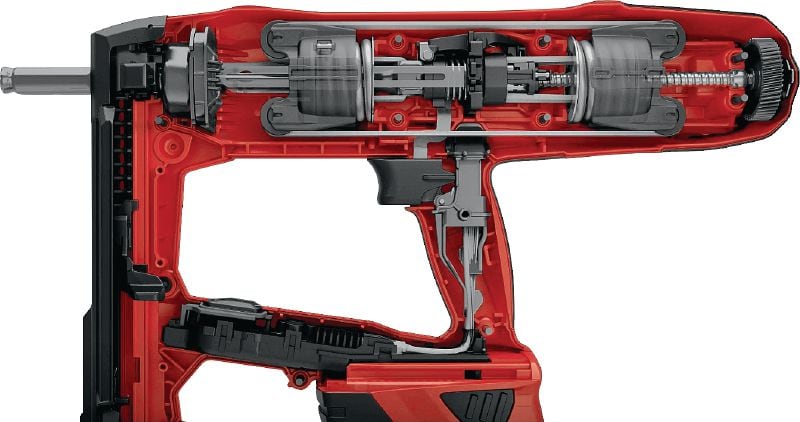

  • Second generation of Hilti's combustion-free direct fastening technology – for high-quality, reliable fastening on concrete, steel and some types of solid masonry
  • Combustion-free operation – no gas cans or powder cartridges to store and dispose of
  • Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2 Ah, 3.0 Ah or 2.6 Ah)
  • Magazine capacity of 30 nails
  • Engineered for high productivity – fastening rate of 1.3 nails per second

Applications

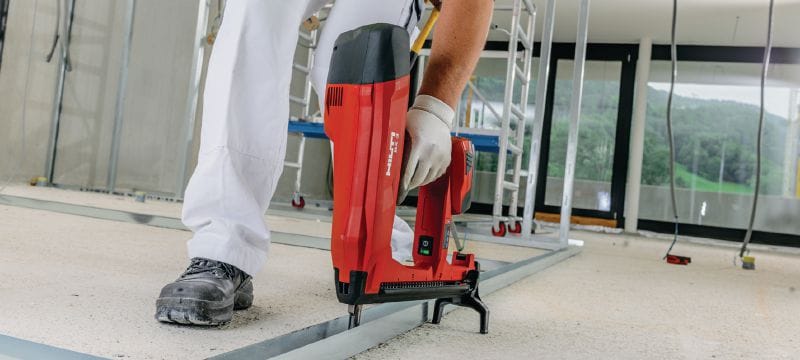

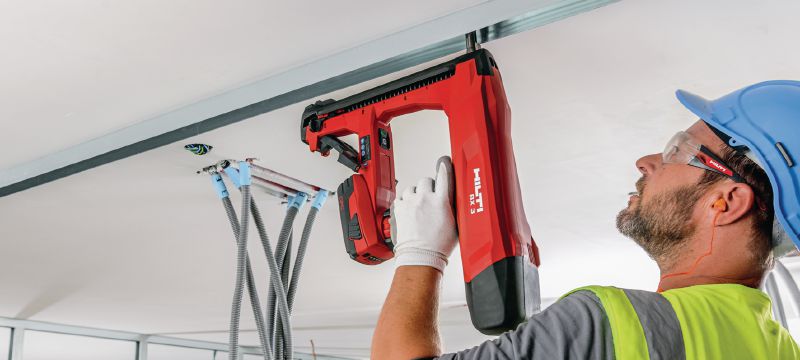

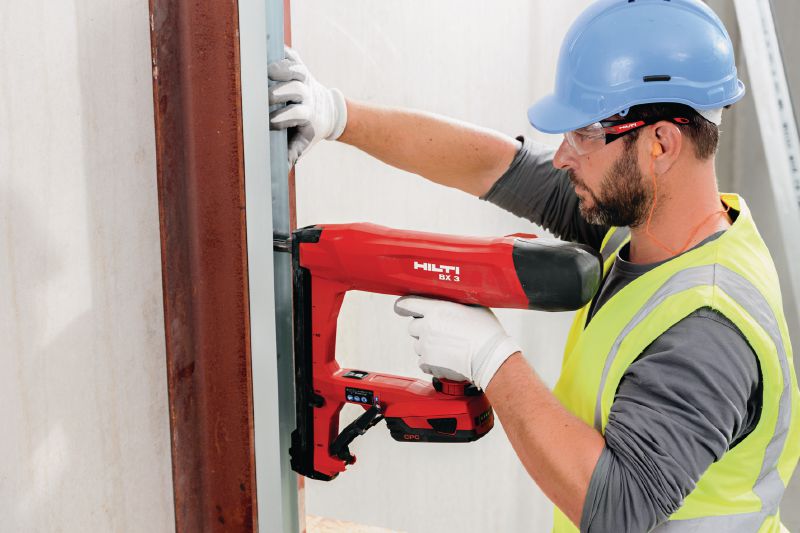

  • Fastening metal stud/track for plasterboard walls to floors, walls and ceilings on concrete, solid masonry or steel

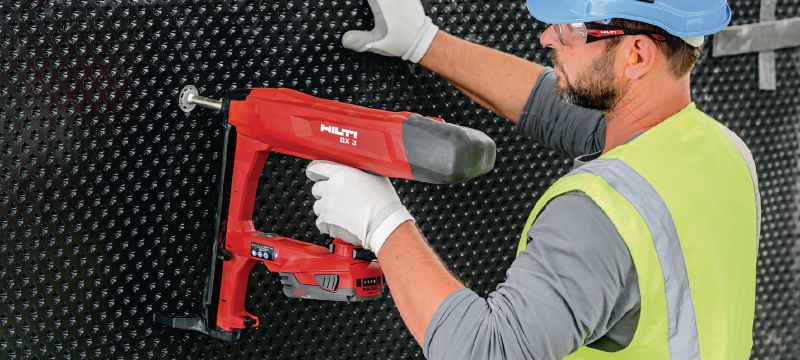

  • Fastening mesh, membranes or foil with special washer holders to concrete walls
  • Fastening wall tie connections to concrete, solid masonry or steel – use of the special washer holder is recommended
  • Suitable for various light-duty fastening applications on concrete, solid masonry or steel
  • Fastening cables, conduits or various light electrical installations – use of the ME nailer nose is recommended

For approval or certificate information, please see individual items.
