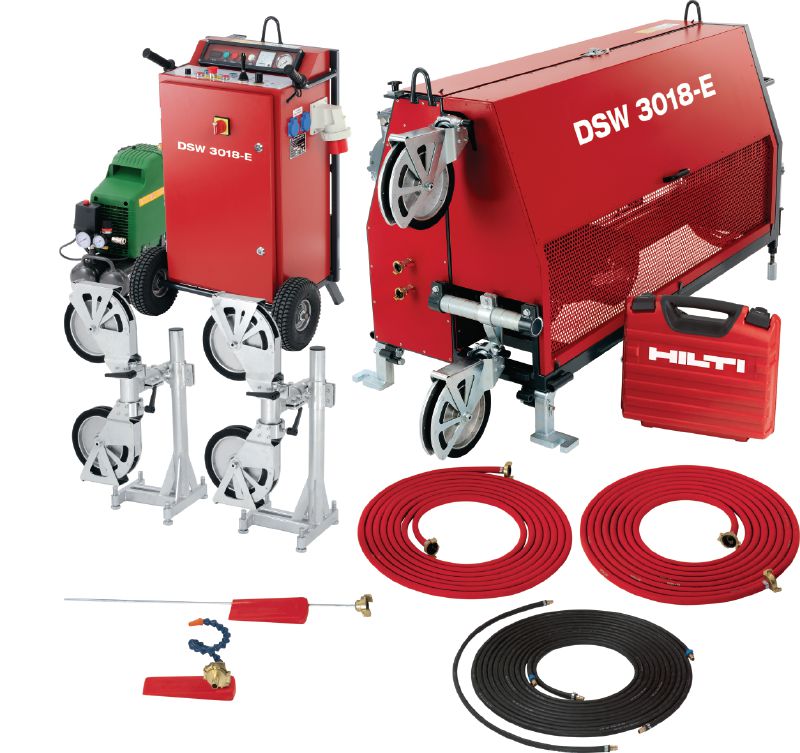

DSW 3018-E Wire saw
High power (30 kW) electric wire saw for outstanding heavy-duty cutting performance
- Motor power: 30 kW
- Power source: Electric
- Min. generator power: 80 kVA
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From KWD 71,500.000
Technical Data
Motor power
30 kW
Power source
Electric
Min. generator power
80 kVA
Wire storage capacity
18.4 m
Weight
550 kg
A-weighted emission sound pressure level
86.1 dB (A) 1
IP protection class
IP 65 (EN 60529), IP 54 (EN 60529)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- High sawing performance thanks to two powerful motors, each with 15 kW power output
- High starting torque reduces effort required to "grind-in" the wire
- Wire tension damping system reduces stress on the wire
- Steplessly variable cutting speed with visual indicator
- Easily adjustable guide pulley system for fast set-up
Applications
- Controlled demolition or dismantling of structures
- Applications that must be completed within a very short time frame, demanding highest sawing performance
- Cutting heavily-reinforced concrete, masonry, stone or steel
- Underwater applications (where the sawing wire runs partly under water)
- Dry wire sawing applications (e.g. decommissioning of power plants)
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
