new

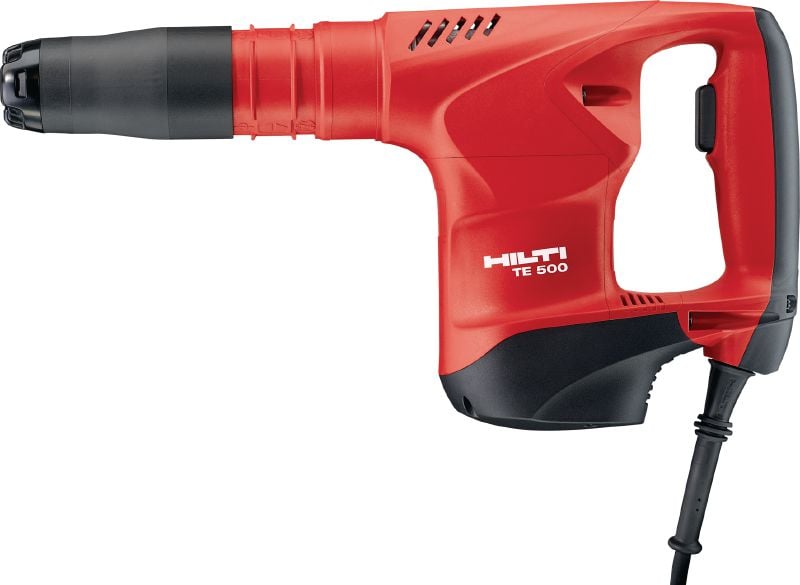

TE 500 SDS-Max chipping hammer

Robust SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry

Technical Data

Working direction

Wall

Tool chuck type

TE-Y (SDS-max)

Weight according to EPTA-Procedure 01/2003 without battery

4.9 kg

Single impact energy

7.1 J

Full hammering frequency

3228 impacts/minute

Max. chiselling performance

850 cm³/min

Dimensions (LxWxH)

419 x 105 x 240 mm

Triaxial vibration for chiselling in concrete

13.5 m/s² ¹

Dust removal system available

TE DRS-B

A-weighted emission sound pressure level

92 dB (A) ²

According to the applicable product standard (see the Operating Instruction for more details)
According to the applicable product standard (see Operating Instruction for more details)

Robust tool with extra protection against heat and dust – prolonging the lifetime and lowering repair costs
Low weight and compact design for easy handling
Great performance to weight ratio – so you get a powerful breaker which is much less tiring to use
Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

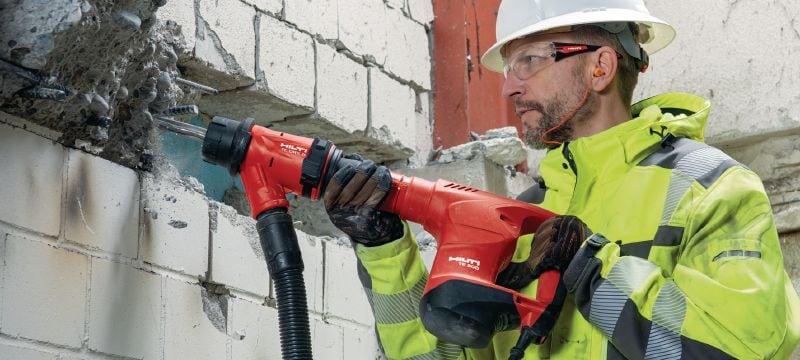

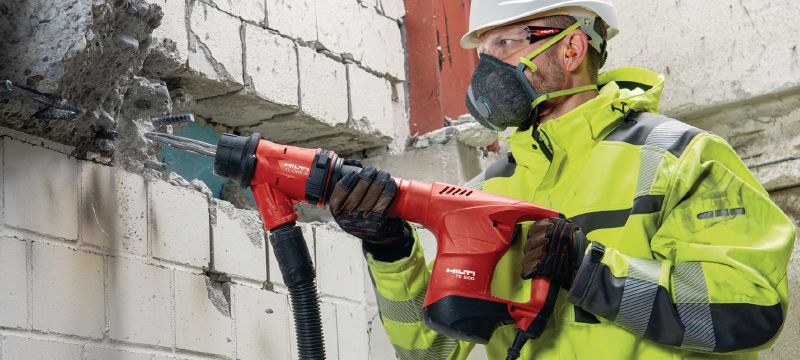

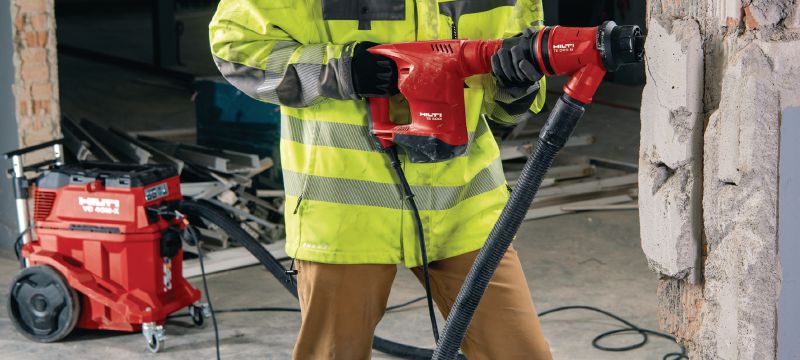

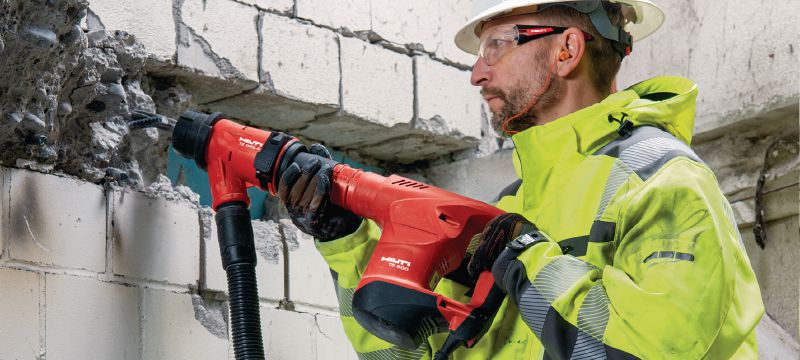

Optional DRS-B dust removal system collects up to 95% of dust

For approval or certificate information, please see individual items.

No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
After the no-cost period, repair costs are capped for as long as we service the tool
3-month no-repair-cost period again after every paid repair
Materials and workmanship warranty over the entire life of the tool
Pick-up and delivery service
