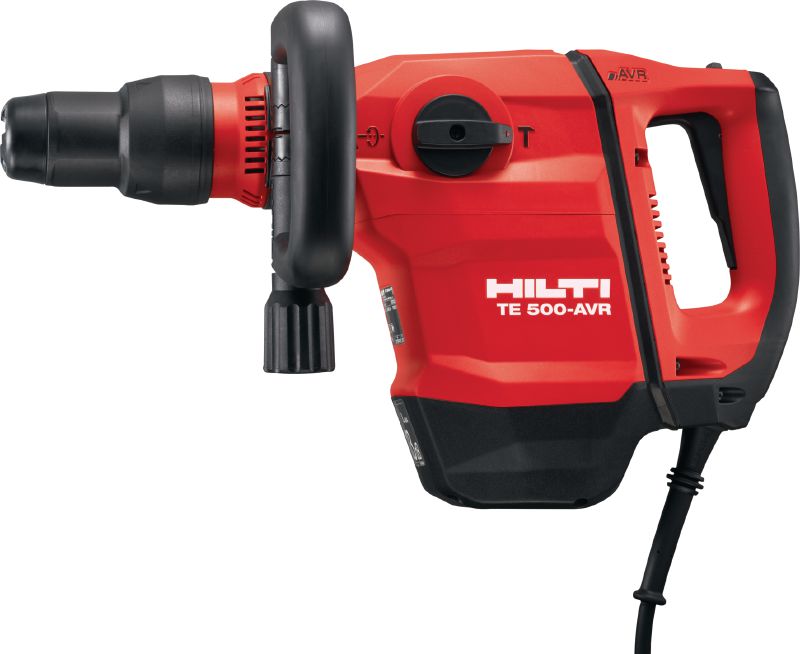

TE 500-AVR SDS-Max chipping hammer

Versatile SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry, with Active Vibration Reduction (AVR)

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS-max)
  • Weight according to EPTA-Procedure 01/2003 without battery: 6.3 kg

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS-max)
Weight according to EPTA-Procedure 01/2003 without battery
6.3 kg
Single impact energy
8.5 J
Full hammering frequency
3510 impacts/minute
Max. chiselling performance
1000 cm³/min
Dimensions (LxWxH)
467 x 118 x 265 mm
Triaxial vibration for chiselling in concrete
8.2 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
96 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • High versatility for a wide range of chiseling applications
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High robustness and long lifetime due to separate lubrication chambers

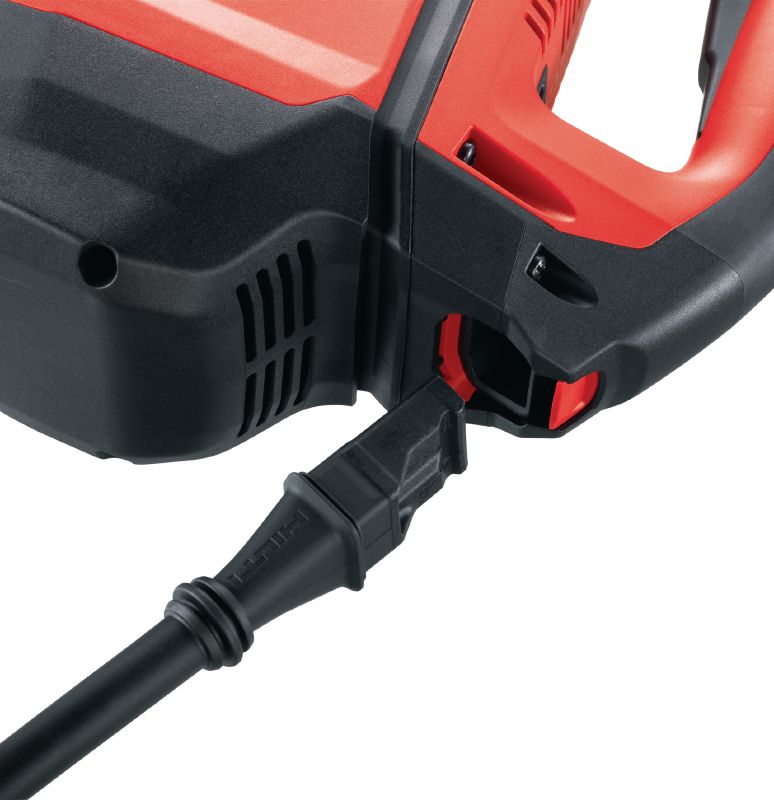

  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

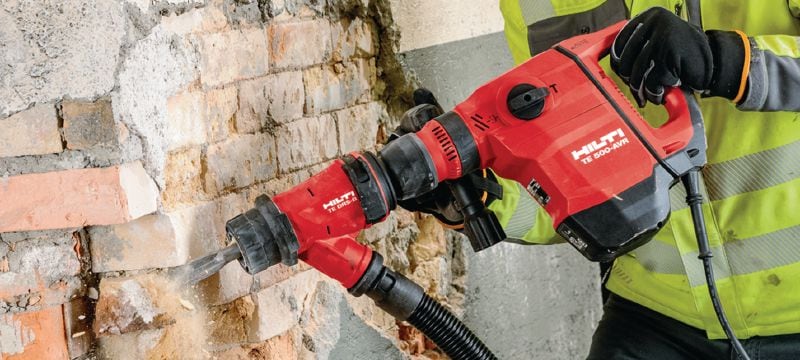

  • Optional DRS-B dust removal system collects up to 95% of dust

Applications

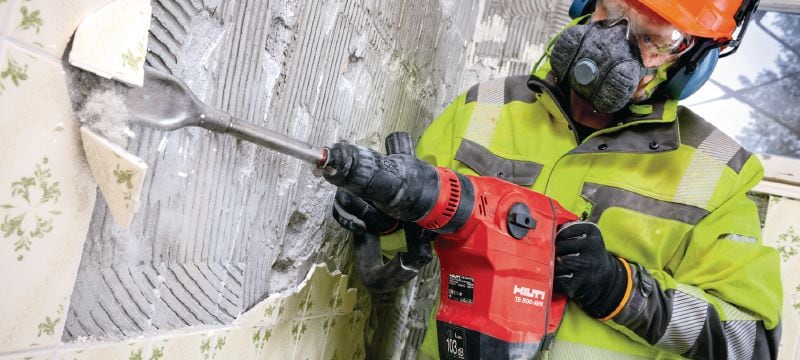

  • Chiseling on concrete and masonry walls

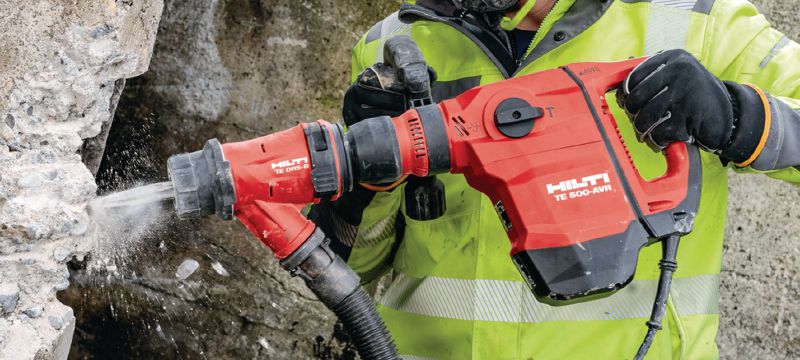

  • Channeling on concrete and masonry
  • Repairing concrete
  • Enlarging breaches
  • Light chipping on concrete or masonry

For approval or certificate information, please see individual items.
