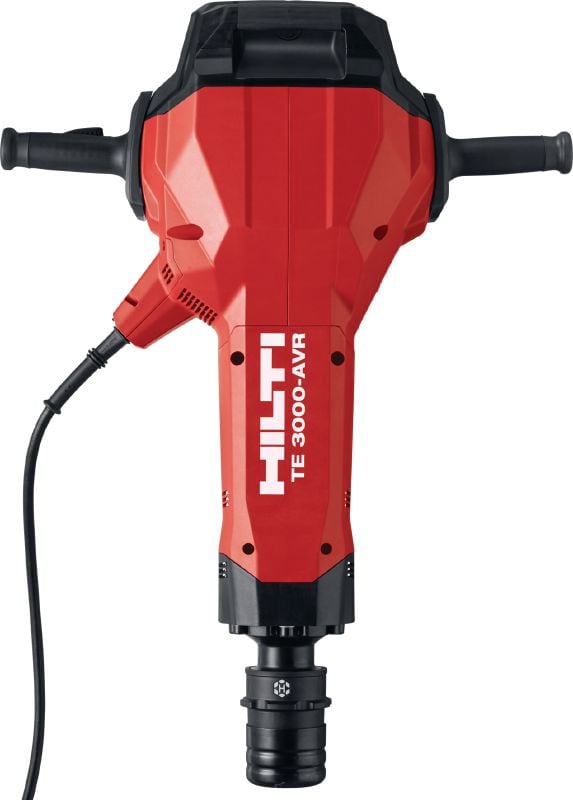

TE 3000-AVR Heavy-duty electric jackhammer

Breaker TE 3000-AVR 230V #2229064

Configurator
Technical Data
Documents
Features & Applications
Related Products
L125747 (225540)
L146103_cropped (2298832)
L146121_cropped (2298830)
L146133_cropped (2298821)
L142388_cropped (227881)
L140937_cropped (222053)
L140957_cropped (222062)

Exceptionally powerful breaker for heavy-duty concrete demolition, asphalt cutting, earthwork and driving ground rods

  • Working direction: Floor
  • Tool chuck type: TE-H (Hilti HEX 28)
  • Weight according to EPTA-Procedure 01/2003 without battery: 27.1 kg

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 2,292.000
KWD 2,292.000
/
1 each

Technical Data

Working direction
Floor
Tool chuck type
TE-H (Hilti HEX 28)
Weight according to EPTA-Procedure 01/2003 without battery
27.1 kg
Single impact energy
85 J
Full hammering frequency
858 impacts/minute
Max. chiselling performance
60000 cm³/min
Dimensions (LxWxH)
820 x 588 x 218 mm
Triaxial vibration for chiselling in concrete
6.3 m/s² 1
Dust removal system available
TE DRS-H
A-weighted emission sound pressure level
98 dB (A) 2
Rated input power
2100 W
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

pdf Operating Instruction TE 3000 (03) + TE-H, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 2.6 MB ]
pdf Operating Instruction TE 3000-AVR (03), Arabic, cn, Danish, English, Estonian, Finnish, French, Japanese, Kazakh, Korean, Lithuanian, Latvian, Norwegian, Russian, Swedish, Turkish, Ukrainian, Chinese [ 3.1 MB ]

Features & Applications

Features

  • Upgraded performance – the TE 3000 now delivers demolition power comparable to 45 kg air-powered breakers
  • Improved handling – 10% weight reduction and new top handle make the jackhammer easier to control and transport
  • Active Vibration Reduction (AVR) – vibration-damped jackhammer with two fully decoupled handles and -10% lower vibration than previous TE 3000 models
  • Redesigned quick change chuck – takes new Hilti TE-H chisels
  • Virtually maintenance-free brushless motor and triple-chamber lubrication systems for less downtime and longer lifetime

Applications

  • Demolishing reinforced concrete slabs and foundations

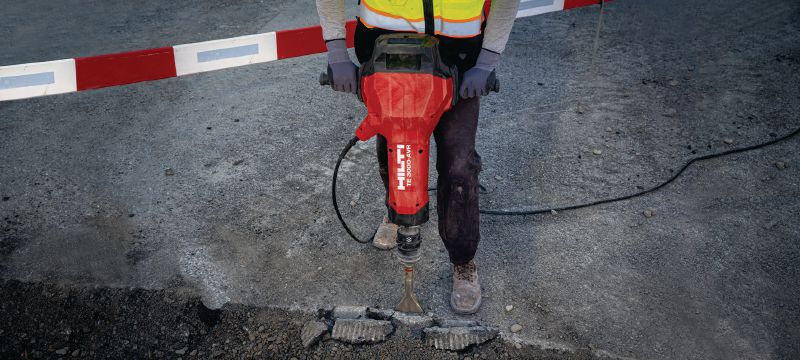

  • Breaking/cutting asphalt in civil road construction, pipe laying and pavement repair
  • Removing concrete for structural restoration, slab extensions, rebar reinforcement and repair
  • Digging, trenching and tamping in rocky, hard clay and other dense earthwork
  • Setting ground rods in hard soils for a safer, ladder-free installation of earthing rods (optional TE-H PD Power Driver required)
