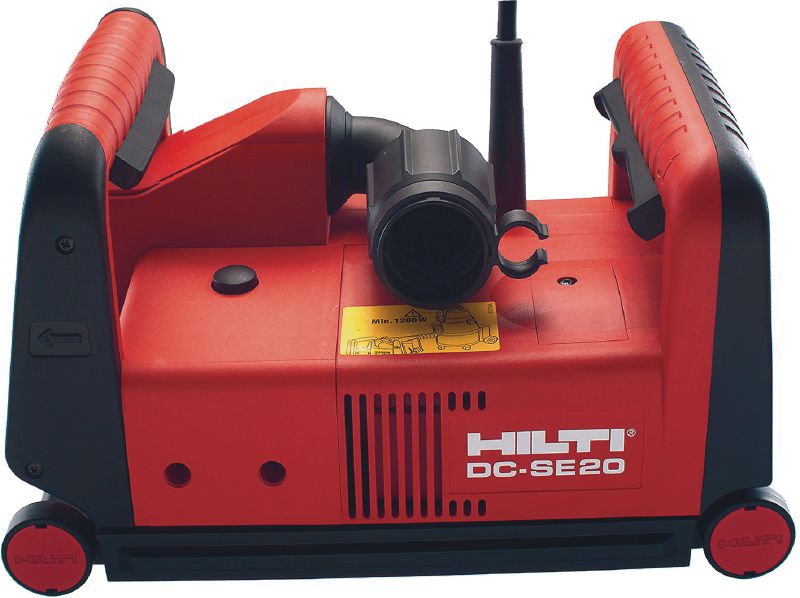

DC-SE 20 Wall chaser
Slitting machine DC SE20 230V #2020563
Diamond slitting machine for chasing cable, conduit and pipe installations into walls
- Disc diameter: 125 mm
- Weight according to EPTA-Procedure 01/2003 without battery: 6.9 kg
- No load RPM: gear 1: 7500 rpm
Customers also searched for electrical conduit installation, cutting into concrete, diamond cutting machine, slitting machine or cutting.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
KWD 1,368.000
KWD 1,368.000 / 1 each
Technical Data
Disc diameter
125 mm
Weight according to EPTA-Procedure 01/2003 without battery
6.9 kg
No load RPM
gear 1: 7500 rpm
Arbor size
22.2 mm
A-weighted emission sound pressure level
104 dB (A) 1
Triaxial vibration value for cutting concrete slab (ah)
5.8 m/s² 2
Rated input power
1950 W
- According to the applicable product standard (see Operating Instruction for more details)
- According to the applicable product standard (see Operating Instruction for more details)
Documents
Features & Applications
Features
- Dedicated slitting system – purpose-built wall chaser for fast slitting and high productivity
- Achieve slitting depths up to 40 mm and groove widths up to 46 mm with 125 mm slitting discs
- Robust design and motor for long lifetime
- Ergonomic handle design – for a more secure, comfortable grip when working in any position
- Virtually dust-free when used with a compatible Hilti vacuum cleaner
Applications
- Equipped with Ø 125 mm discs, the wall chaser can slit up to 40 mm depths and 46 mm widths in all widely used construction materials, such as concrete, flint, hard stone, etc.
- In-wall installation of pipes and tubes
Services
Hilti Tool Service
- 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
