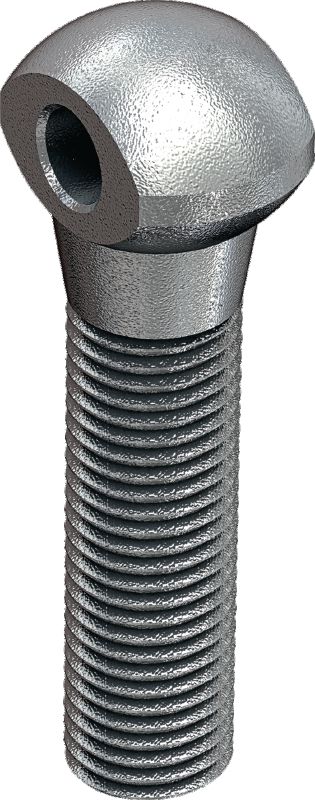

MW-EB Eyebolt

Eye bolt MW-EB M8x26 #2277563

Galvanised eyebolt for connecting suitable fixtures to MW wire rope suspension systems

Material composition: Steel
Surface finish: Indoor Coated - Electro galvanised
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Length - L

Thread connection - M

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

KWD 10.400

KWD 0.420 / 1 each

Material composition

Steel

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Thread connection - M

Diameter

4.5 mm

Length

26 mm

Easy to use – fully threaded eyebolts are a simple, versatile interface between MEP or architectural fixtures and wire rope suspension systems
CE mark (DIN EN 13964)

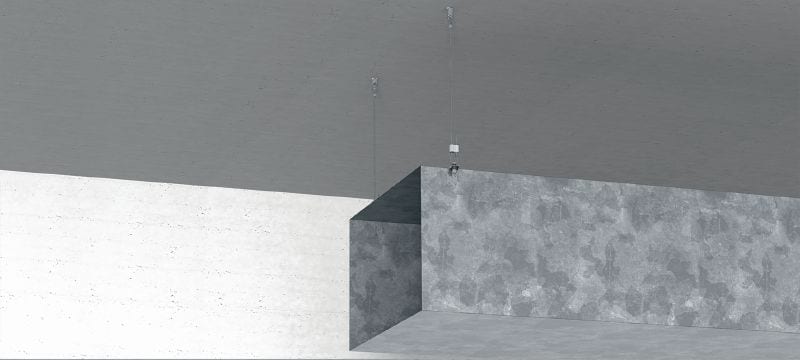

Attaching HVAC fixtures to MW wire rope – including spiral and rectangular ductwork (using compatible MVA duct hangers)
Attaching architectural elements to MW wire rope – including acoustic, heating and cooling panels, as well as overhead grids
Suitable for use in dry, indoor environments only
