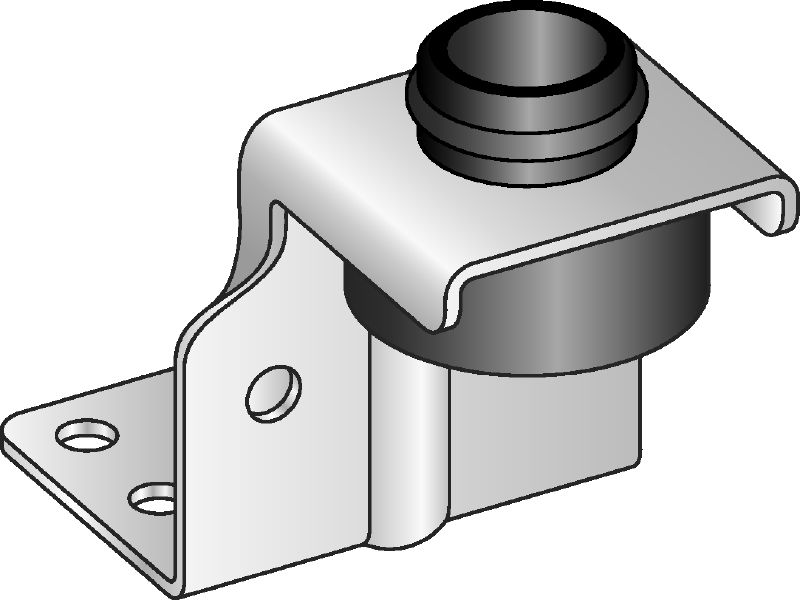

Galvanised air duct bracket for fastening light ventilation ducts overhead

  • Thread connection - M: M8, M10
  • Noise reduction: 18 dB (A)
  • Maximum load - F: 500 N

Choose options

Thread connection - M
  • M8, M10
Maximum load - F
  • 500 N
Pack size
  • 50 pc
Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

KWD 41.100

KWD 0.820 / 1 each

Technical Data

Thread connection - M
M8, M10
Noise reduction
18 dB (A)
Maximum load - F
500 N
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

Features & Applications

Features

  • Easy-to-install threaded rod suspension system for ventilation ducts
  • Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
  • Height adjustment possible even after installation
  • Insulation can be installed over the bracket
  • Hole size/shape suitable for self-drilling screws (4.2) and blind rivets

Applications

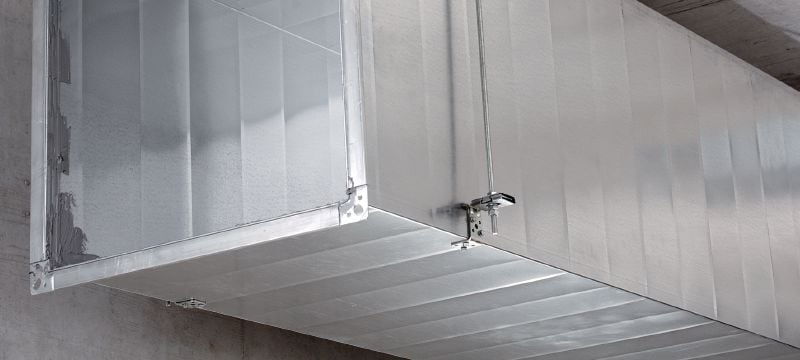

  • Fastening rectangular air ducts to ceilings
