MV-SI

Perforated band hanger MV-SI #386530

Configurator
Technical Data
Documents
Features & Applications
Related Products
MV-SI
13810.tif

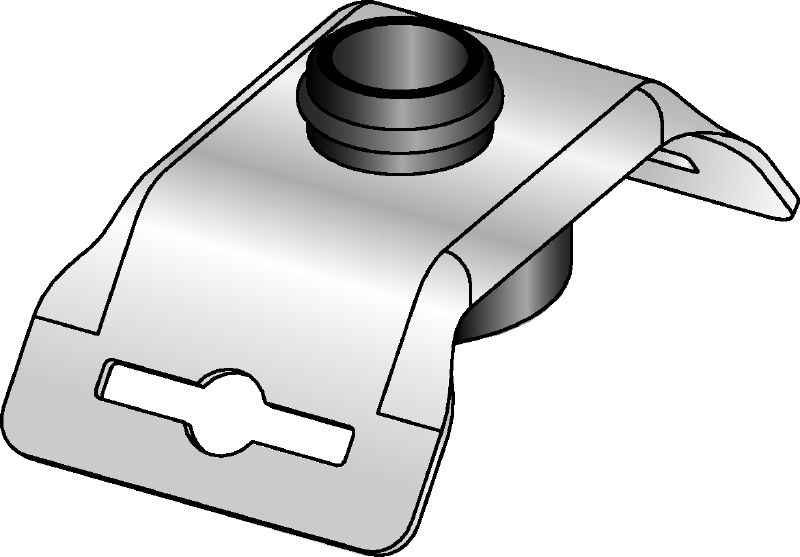

Galvanised perforated band hanger for fastening ventilation ducts

  • Noise reduction: 18 dB (A)
  • Maximum load - F: 600 N
  • Maximum tensile load - Fz: 0.6 kN

Choose options

Maximum load - F
  • 600 N
Maximum tensile load - Fz
  • 0.6 kN
Pack size
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Noise reduction
18 dB (A)
Maximum load - F
600 N
Maximum tensile load - Fz
0.6 kN
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

pdf Instruction for use MV-SI [ 430 KB ]

Features & Applications

Features

  • Fits all folded spiral-seam tube sizes
  • Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
  • Height adjustment possible even after installation
  • Preassembly helps to prevent lost or dropped parts during installation
  • Insulation piece does not drop out during installation

Applications

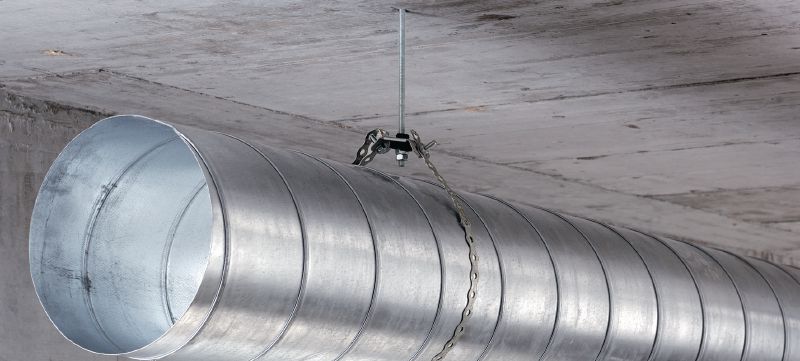

  • Installing round air ducts to the ceiling
