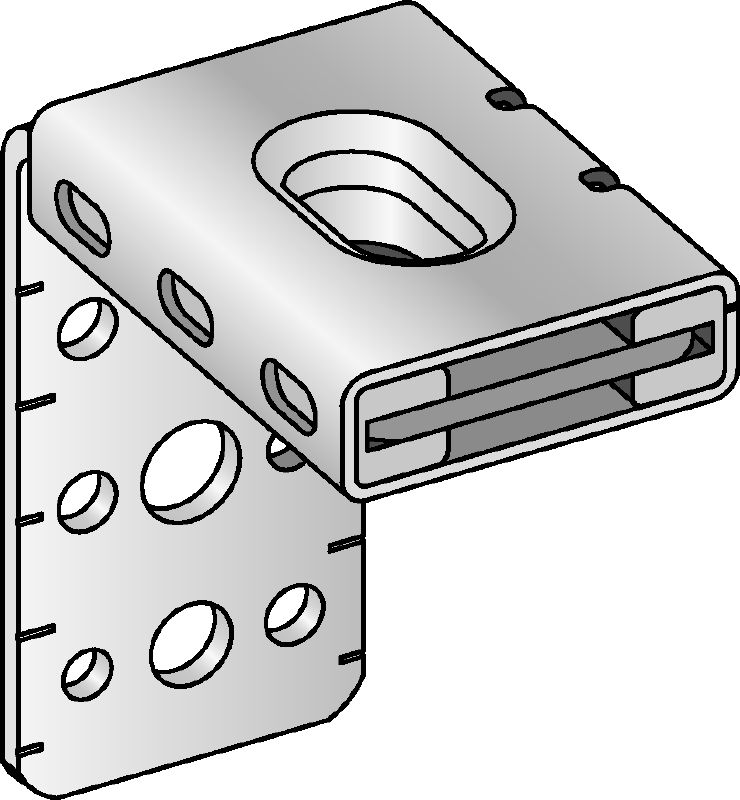

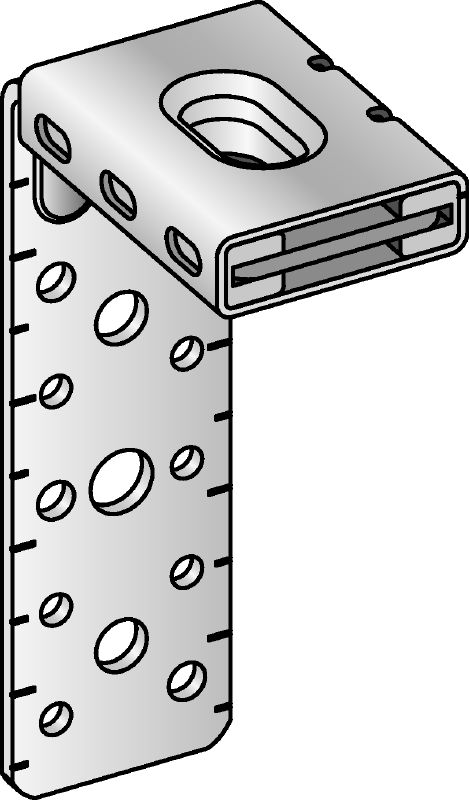

Galvanised air duct bracket for fastening or hanging ventilation ducts

  • Approvals: Acustic insulaton DIN 4109 inspected
  • Thread connection - M: M8, M10
  • Noise reduction: 12 dB (A)

Choose options

Thread connection - M
  • M8, M10
Maximum load - F
  • 600 N
Pack size
  • 25 pc
Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

13817.eps
Approvals
Acustic insulaton DIN 4109 inspected
Thread connection - M
M8, M10
Noise reduction
12 dB (A)
Maximum load - F
600 N
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
40° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

Features & Applications

Features

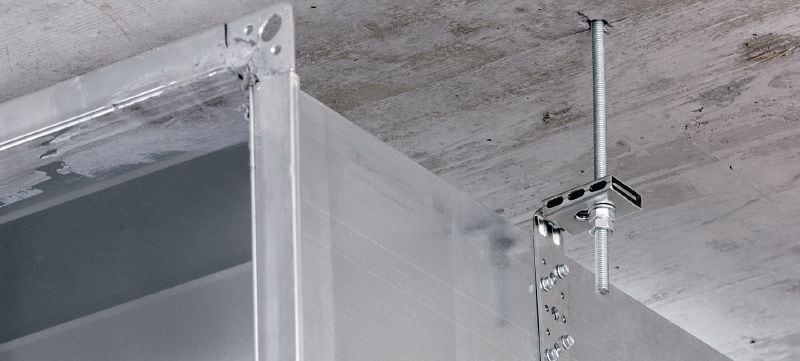

  • Convenient solution for fastening ventilation ducts directly to ceilings, suspending from threaded rods or in conjunction with MQ strut channels for rising ducts
  • Scale for precise alignment and stand-off installation
  • Movable cage – compensates for structural tolerances and allows repositioning to help avoid drilling into rebar
  • 30 mm space between the threaded rod and the duct – for easier subsequent addition of insulation
  • Can be fastened to MQ strut channels or directly to the base material

Applications

  • Fastening rectangular air ducts to ceilings
