MQZ-F Channel tie
Shear brace MQZ-SS-F #304207

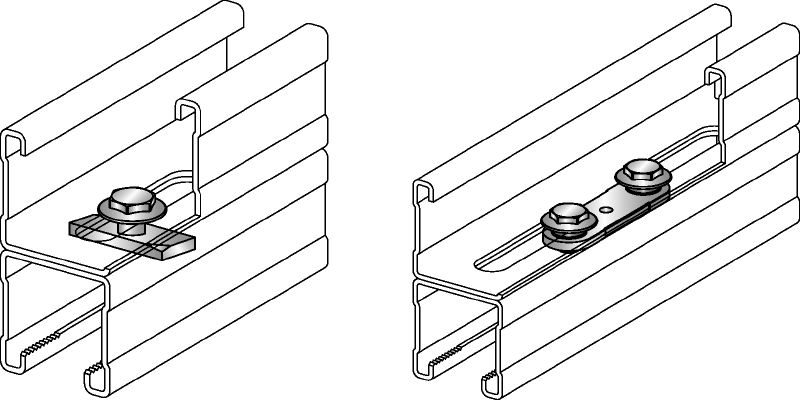

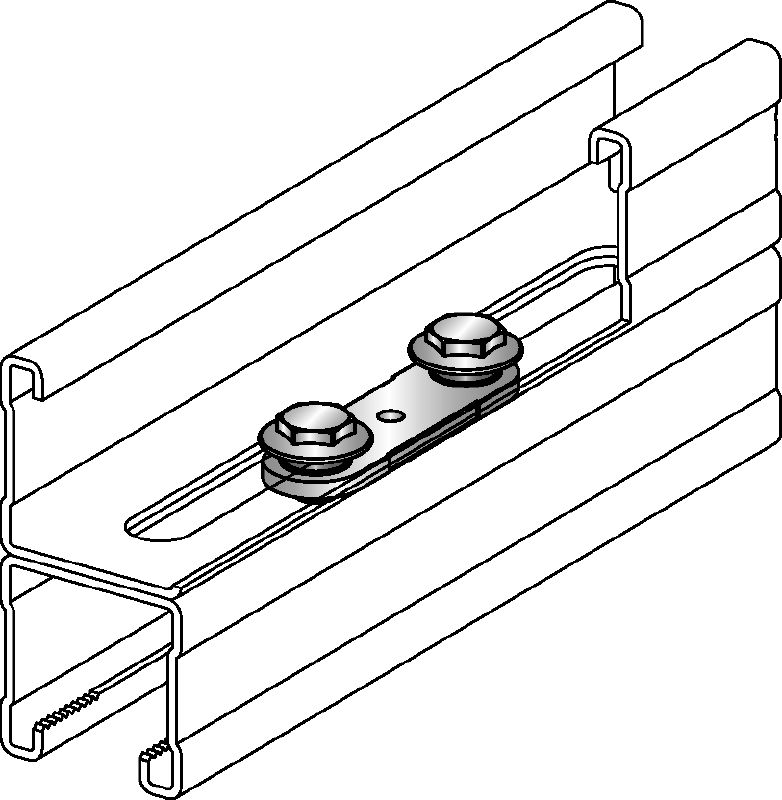

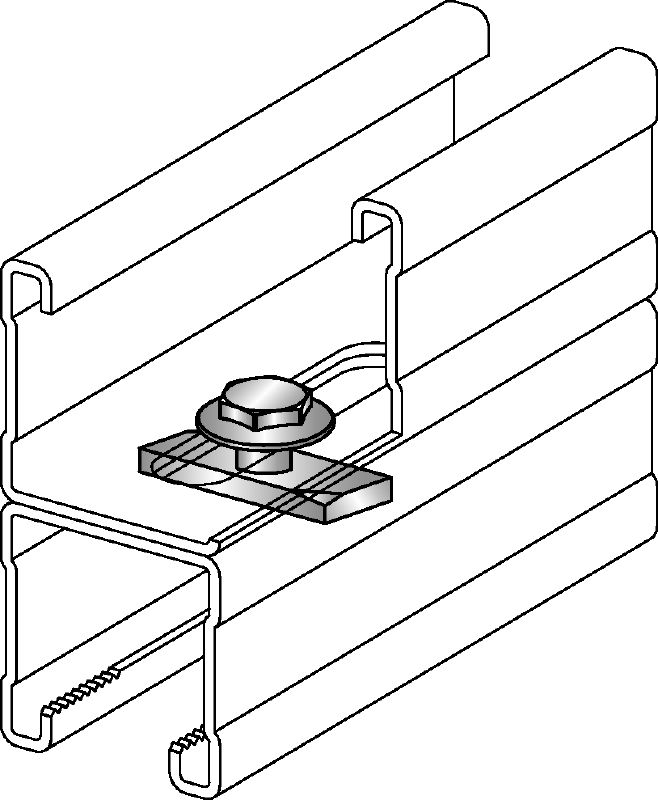

Hot-dip galvanised (HDG) channel tie to create double channels
- Tightening torque: 20 Nm
- Thread connection - M: M10
- Material composition: S235JR - DIN EN 10025
Choose options
Thread connection - M
- M10
Pack size
- 40 pc
Quantity
Packs
Total Pieces
40
Discounted net
Technical Data
Tightening torque
20 Nm
Thread connection - M
M10
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Wrench size
13 mm
Weight
64 g
Features & Applications
Features
- Simple construction of double channels with channel ties
- Easy to fit in the elongated holes in strut channels
- Can be used by the installer to create double channels
Applications
- Assembling accurately aligned double channels
- Connecting installation channels back to back
- Recommended for use in moderately corrosive outdoor and indoor environments
