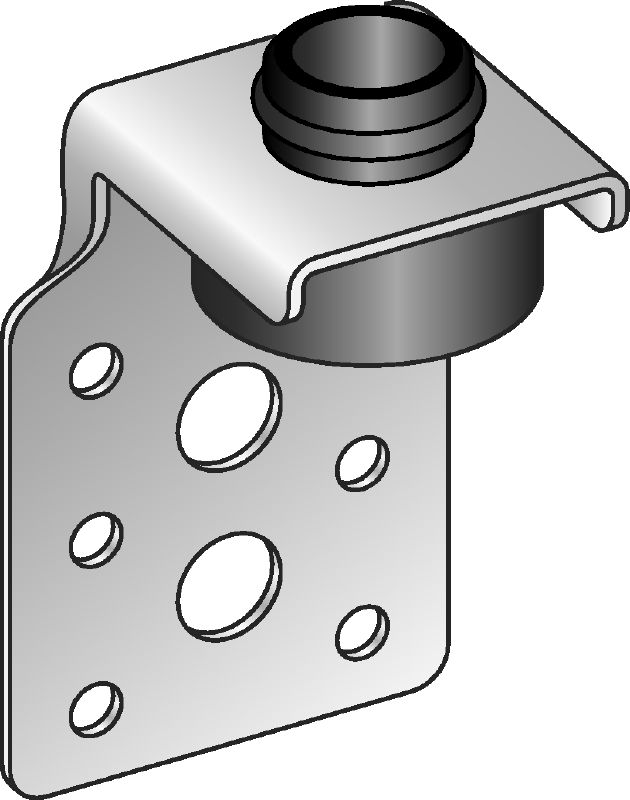

MVA-L Air duct bracket
Galvanised air duct bracket for fastening ventilation ducts directly to ceilings
- Noise reduction: 16 dB (A)
- Material composition: DD11 - DIN EN 10111, EPDM
- Surface finish: Indoor Coated - Electro galvanised
Choose options
Thread connection - M
- M8, M10
Maximum load - F
- 500 N
Pack size
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From KWD 40.950
Technical Data
Noise reduction
16 dB (A)
Material composition
DD11 - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C
Documents
Features & Applications
Features
- Universal solution for fastening ventilation ducts directly to ceilings
- Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
- Suitable for fastening in vertical shafts
- Insulation can be installed over the bracket
- Hole size/shape suitable for fastening to ducts using self-drilling screws (4.2, 4.8, 6.3), blind rivets and metric screws/M8 threaded rods
Applications
- Fastening rectangular air ducts to ceilings
For approval or certificate information, please see individual items.
