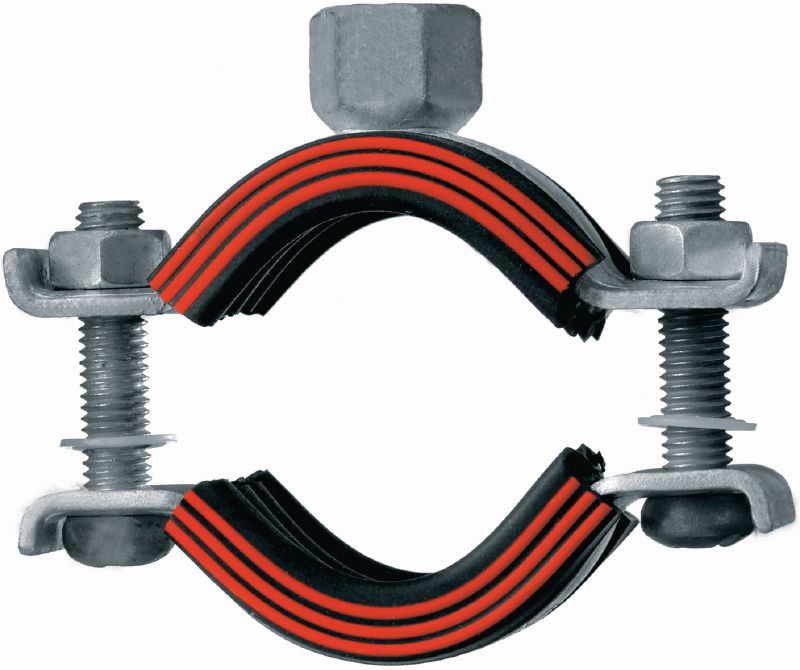

MP-MI-F heavy-duty pipe clamp
hot-dip galvanised (HDG) pipe clamp with sound insulation for heavy-duty applications
- Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
- Noise reduction: 18 dB (A)
- Temperature resistance: -50 - 120 °C
premium
Customers also searched for pipe clamps, pipe rings, pipe supports, installing pipes or connectors.
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction
18 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Product class
Premium
Documents
Features & Applications
Features
- Closure screws secured to help prevent loss
- Solid welded-on connection head
- Clamping screws secured against loss
- Profiled clamp band for higher rigidity
- High resistance to corrosion
Applications

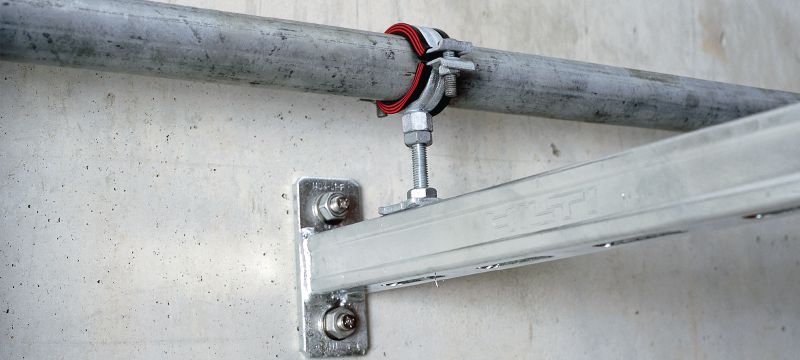

- heavy-duty pipe installations up to 3"
- Installing industrial pipes
- Mounting process and control queues
For approval or certificate information, please see individual items.
