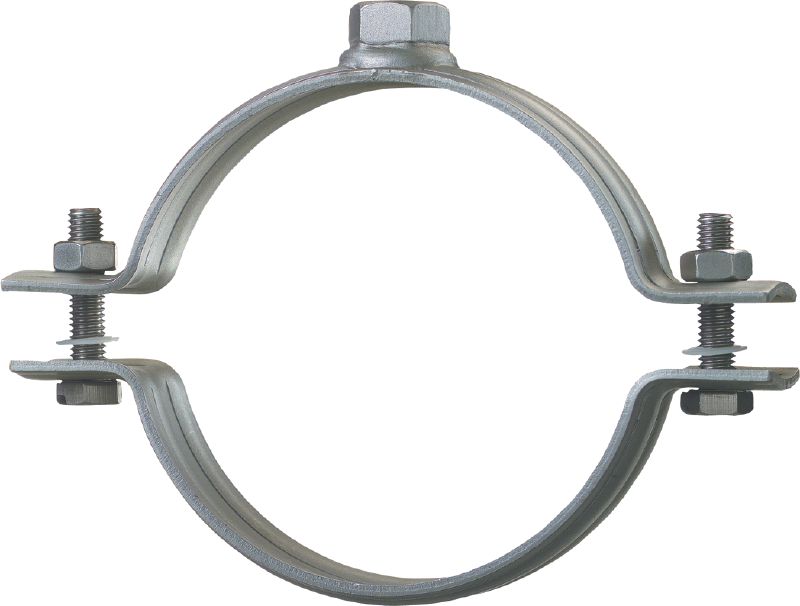

MP-MR heavy-duty pipe clamp

Stainless steel (A4) pipe clamp without sound insulation for heavy-duty applications

Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish: Outdoor Plus - Stainless Steel
Environmental conditions: Outdoor high pollution (C4 – high / C5)

standard

Choose options

Clamping range - D

87 - 93 mm
109 - 114 mm
125 - 131 mm
156 - 162 mm
162 - 168 mm

Thread connection - M

Nominal pipe size (imperial)

3 in
4 in
6 in

Pack size

5 pc
10 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From KWD 117.650

Technical Data

Material composition

Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L

Surface finish

Outdoor Plus - Stainless Steel

Environmental conditions

Outdoor high pollution (C4 – high / C5)

Product class

Standard

Documents

Features & Applications

Features

Increased rigidity due to profiled clamping band
Solid connection head, welded all around
Pipe ring with verified fire resistance as per DIN 4102, part 2
High resistance to corrosion (A4 stainless steel)

Applications

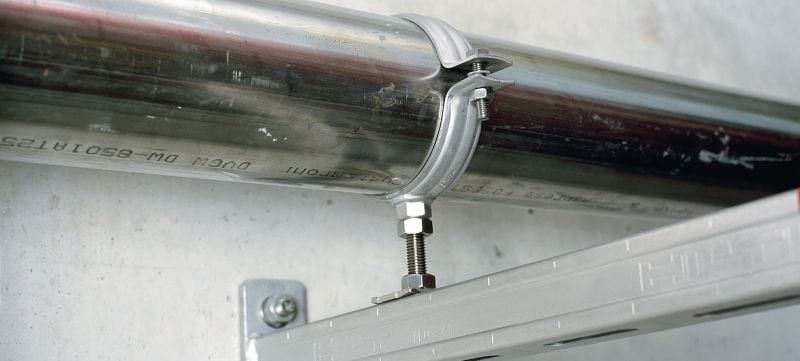

heavy-duty pipe installations up to 224 mm
Installing industrial pipes
Mounting pipes in food industry and in water treatment
heavy-duty plumbing and heating applications
Fastening of heavy-duty pipes in corrosive environments

For approval or certificate information, please see individual items.
