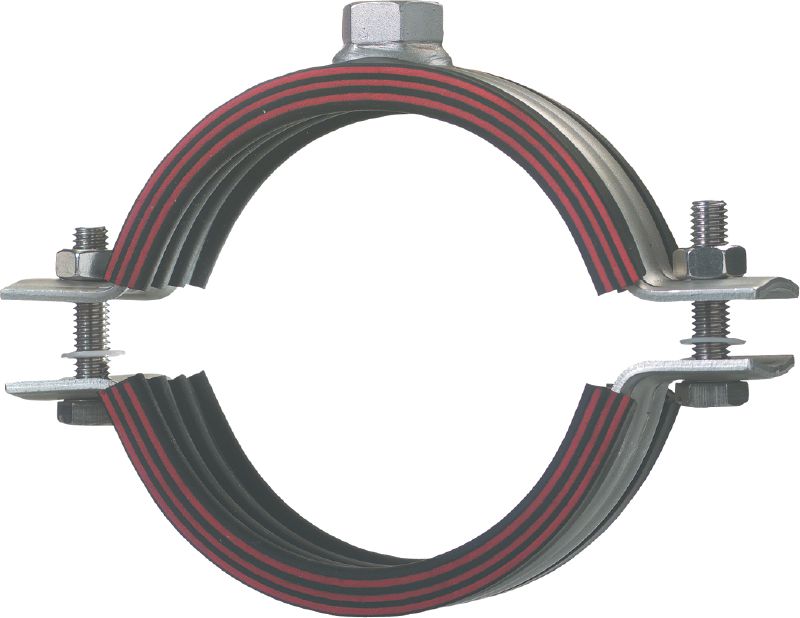

MP-MRI heavy-duty pipe clamp

Stainless steel (A4) pipe clamp with sound insulation for heavy-duty applications

Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction: 18 dB (A)
Temperature resistance: -50 - 120 °C

premium

Customers also searched for pipe clamps, pipe rings, pipe supports, installing pipes or connectors.

Choose options

Clamping range - D

82 - 90 mm
97 - 103 mm
114 - 119 mm
156 - 162 mm

Thread connection - M

Nominal pipe size (imperial)

3 in

Pack size

5 pc
10 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Approvals

Acustic insulaton DIN 4109 inspected, Fire class B2

Noise reduction

18 dB (A)

Temperature resistance

-50 - 120 °C

Material composition

Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L

Surface finish

Outdoor Plus - Stainless Steel

Environmental conditions

Outdoor high pollution (C4 – high / C5)

Insulation material

EPDM rubber

Hardness insulation material

50° ±5° Shore A

Product class

Premium

Documents

Features & Applications

Features

Increased rigidity due to profiled clamping band
Solid connection head, welded all around
Pipe ring with verified fire resistance as per DIN 4102, part 2
High resistance to corrosion (A4 stainless steel)

Applications

heavy-duty pipe installations up to 224 mm
Installing industrial pipes
Mounting pipes in food industry (except production) and in water treatment
heavy-duty plumbing and heating applications
Fastening of heavy-duty pipes in corrosive environments

For approval or certificate information, please see individual items.
