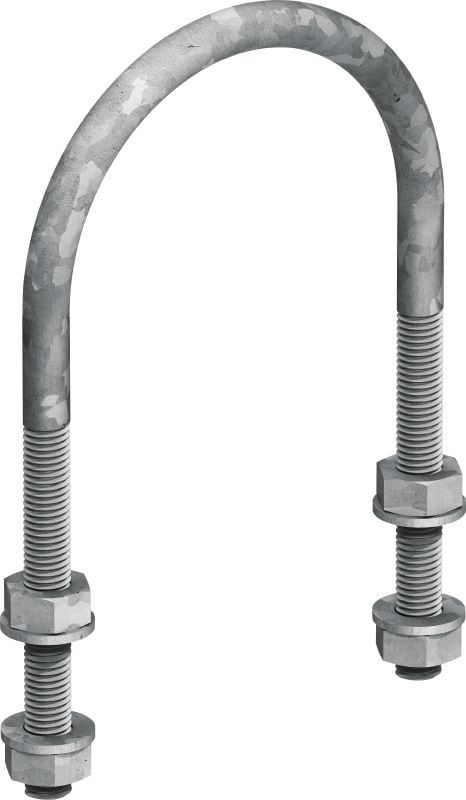

MP-UB u-bolt (metric)
U-bolt MP-UB 114 4" M12 #2288390
Galvanised u-bolt for universal piping applications
- Diameter - D: 117.2 mm
- Nominal pipe size (imperial): 4 in
- Thread connection - M: M12
standard
Choose options
Diameter - D
- 117.2 mm
Thread connection - M
- M12
Nominal pipe size (imperial)
- 4 in
Nominal pipe size
- 100 mm
Pack size
- 10 pc
Quantity
Packs
Total Pieces
10
Discounted net
KWD 4.095
KWD 4.090 / 1 each
Technical Data
Diameter - D
117.2 mm
Nominal pipe size (imperial)
4 in
Thread connection - M
M12
Approvals
FM approved, UL approved EX15279
Thread length - L
85 mm
Height - H
192 mm
Material composition
Q235 or better steel
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Tightening torque
14 Nm
Width - B
129 mm
Product class
Standard
Documents
Features & Applications
Features
- Suitable for suspended or standing installation applications
- Small contact surface between u-bolt and pipe
- Approved for sprinkler applications under VdS
- Approved for sprinkler applications under UL / NFPA

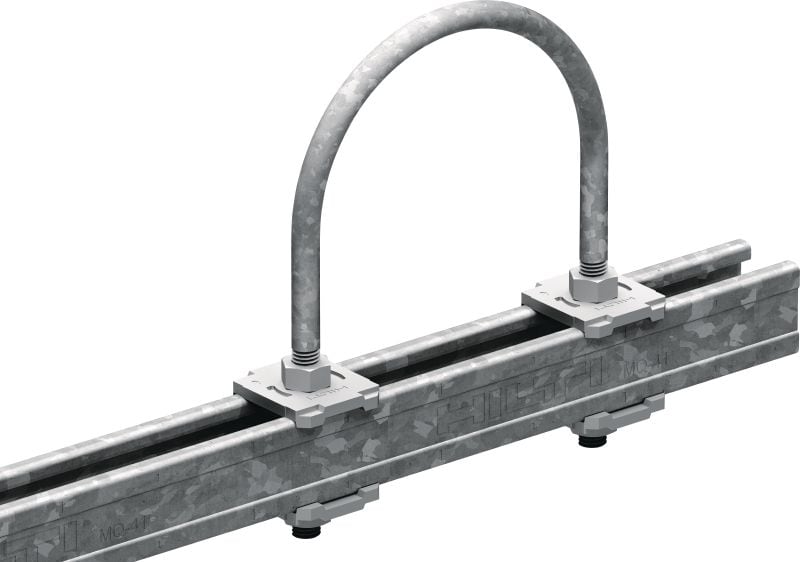

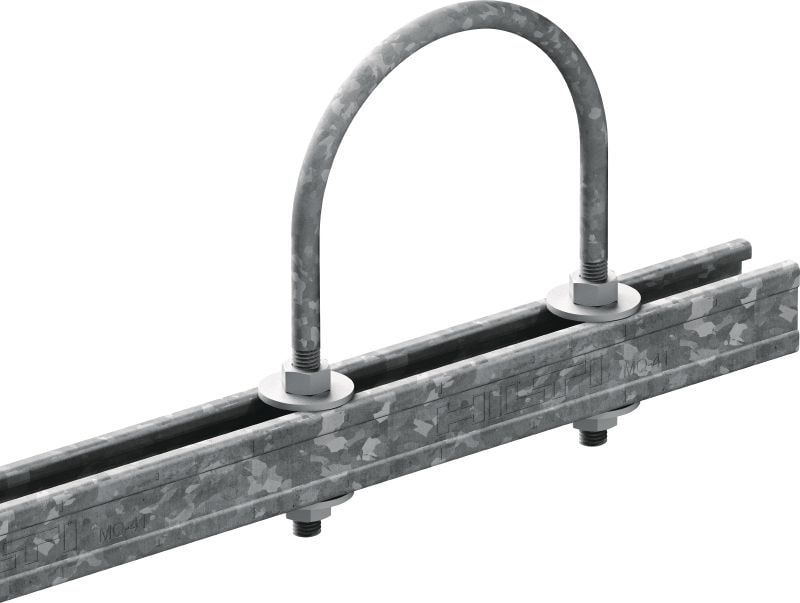

- Channel through bolting up to a diameter of 324mm / 12"
Applications

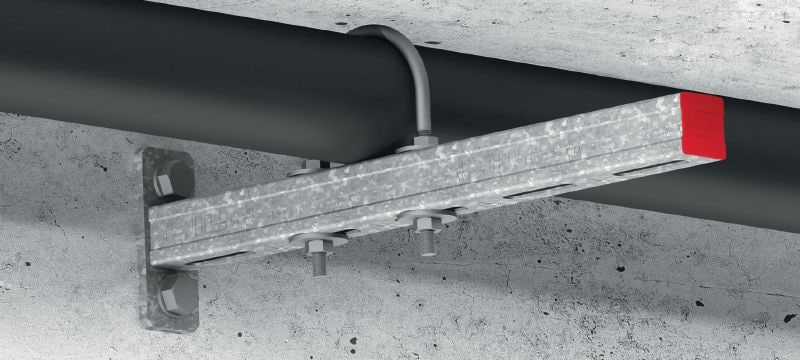

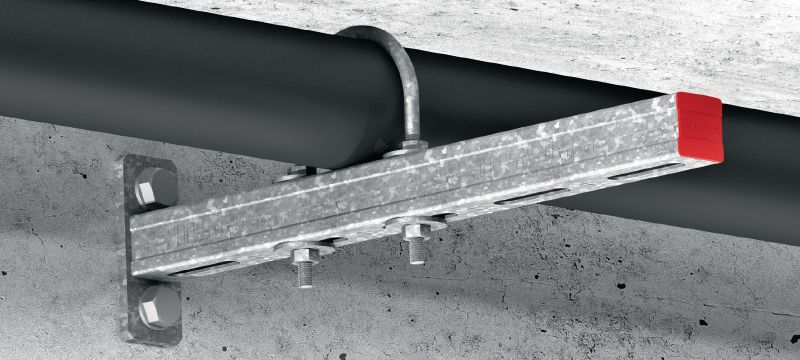

- Universal pipe fixation up to 24"
- single-point fastening for sprinkler applications up to 324mm / 12"
- Recommended for use in dry, interior environments
