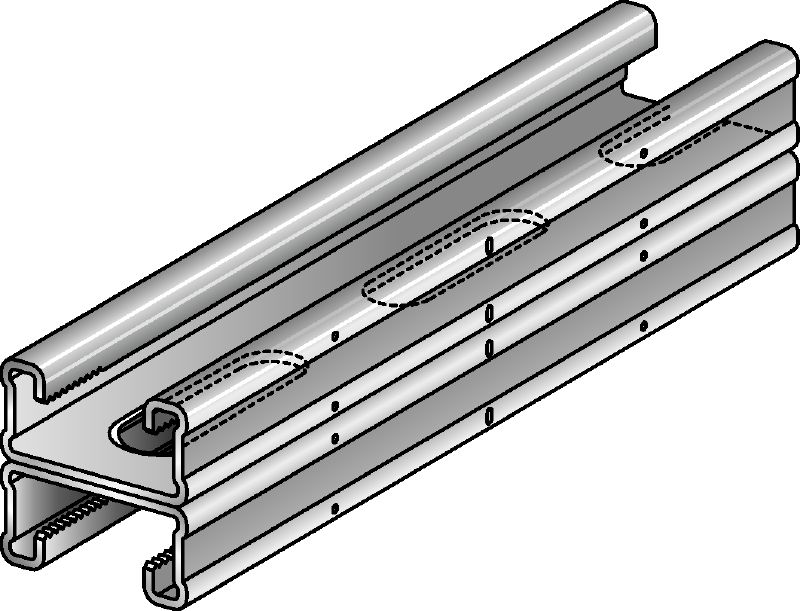

MQ-21 D-F C-Channel profile
I.-channel MQ-21 D-F 6m #304108
hot-dip galvanised (HDG) double C-Channel profile for medium-duty applications
- Height: 41.2 mm
- Material thickness: 2 mm
- Material composition: S250GD - DIN EN 10346
Choose options
Length
- 6 m
Pack size
- 6 m
Quantity
Packs
Total m
6
Discounted net
Technical Data
Height
41.2 mm
Material thickness
2 mm
Material composition
S250GD - DIN EN 10346
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Weight
17820 g
Documents
Features & Applications
Features
- C-profile with serrated edges – for higher pull-out and shear capacity
- Installation on both sides possible – for high application flexibility
- Pre-marked dimensions – for rapid installation, assembly and cutting
- Versatile and flexible due to modular channel system
- Sound insulation elements available for all MQ installation channels
Applications
- Recommended for use in moist interiors, on exteriors exposed to slight or no weathering and on back-ventilated facades
- Modular support systems for piping
- Modular support systems for air ducts and cable trays
- Modular support systems for 3D structures
- Wall-mounted installation
