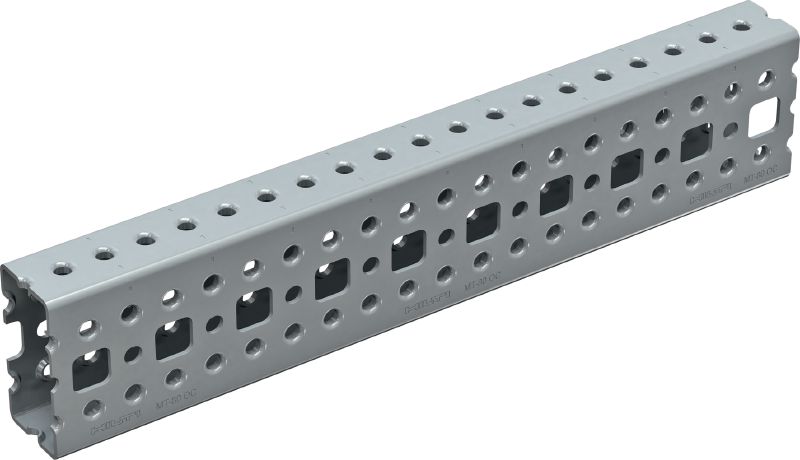

MT-80 OC Box profile

I.-Girder MT-80 OC 6M #2268367

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003284_v1 (217078)
L140650_cropped (213618)
11_IS_MT-80_0001 (218620)

heavy-duty box profile for use with MT-TFB components in outdoor environments

  • Material composition: S350 or better steel
  • Surface finish: Zinc-Magnesium - for outdoor use
  • Material thickness: 3 mm

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total m
6
You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

0.16666666666666666 Packs (Total pieces 1)

Discounted net
KWD 86.125
KWD 86.130 / 1 m

Technical Data

Details
Technical illustrations
Material composition
S350 or better steel
Surface finish
Zinc-Magnesium - for outdoor use
Material thickness
3 mm
Weight
36.35 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Approval document
Certificate
Documentation
Sustainability Documentation
pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio make MT girders an efficient alternative to welding for virtually any heavy-duty MEP supports and modular structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to instal – compatible with the innovative MT thread-forming bolt, enabling the use of a wide range of MT connectors and baseplates and avoiding the need for nuts
  • Enables direct girder-to-girder fixation, without connectors for a highly efficient solution

Applications

  • Floor-mounted MEP support structures with heavy loads and extra-long spans
  • Ceiling-mounted MEP support structures with heavy loads and extra-long spans
  • Wall-mounted cantilever brackets for heavy-duty, industrial pipes
  • Modular 3D framing to support industrial pipes and other heavy-duty building services
  • Suitable for use in moderately corrosive environments
