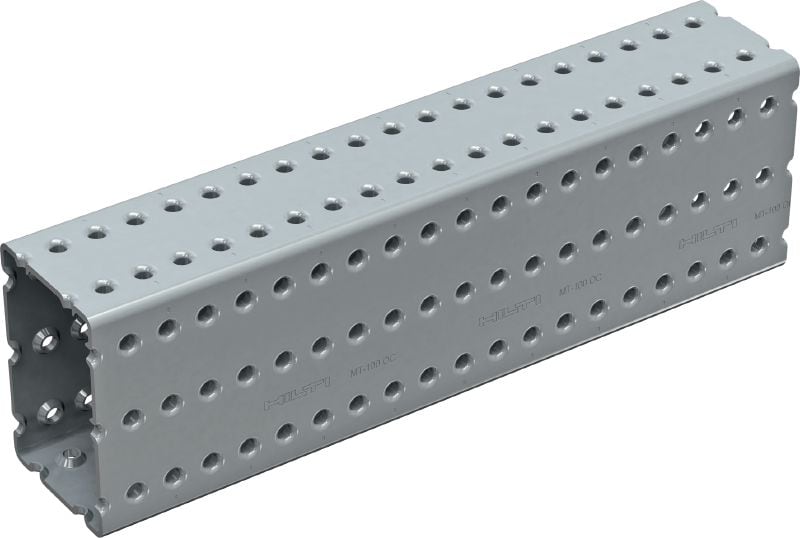

MT-100 OC Box profile

I.-Girder MT-100 OC 6M #2268491

Pack size

Product options

Quantity

Packs

Total m

You can not see your company prices

Please Log in or register to see your company prices.

Price displayed for minimum order quantity:

0.16666666666666666 Packs (Total pieces 1)

Discounted net

KWD 161.525

KWD 161.530

1 m

Technical Data

Material composition

S350 or better steel

Surface finish

Zinc-Magnesium - for outdoor use

Material thickness

4 mm

Weight

90.58 kg

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

Economical – high load/weight ratio make MT girders an efficient alternative to welding for virtually any heavy-duty MEP supports and modular structures
Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
Simpler to instal – compatible with the innovative MT thread-forming bolt, enabling the use of a wide range of MT connectors and baseplates and avoiding the need for nuts
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
