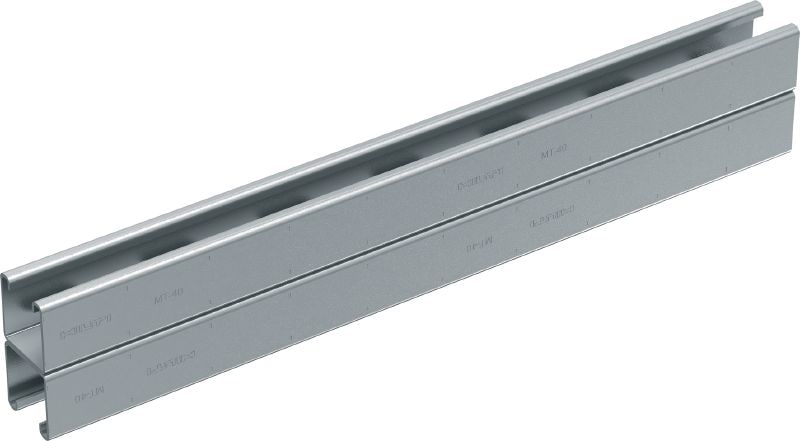

MT-40D C-Channel profile

I.-Channel MT-40D 6M #2268518

Pack size

Product options

Quantity

Packs

Total m

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

KWD 158.730

KWD 26.450 / 1 m

Technical Data

Material composition

S280 or better steel

Surface finish

Indoor Coated - Pre-galvanised

Material thickness

2 mm

Weight

25.79 kg

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

pdf ETA-23-0105 Static Fire MT Channels, English, French [ 4.4 MB ]

pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
Simpler to instal – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
