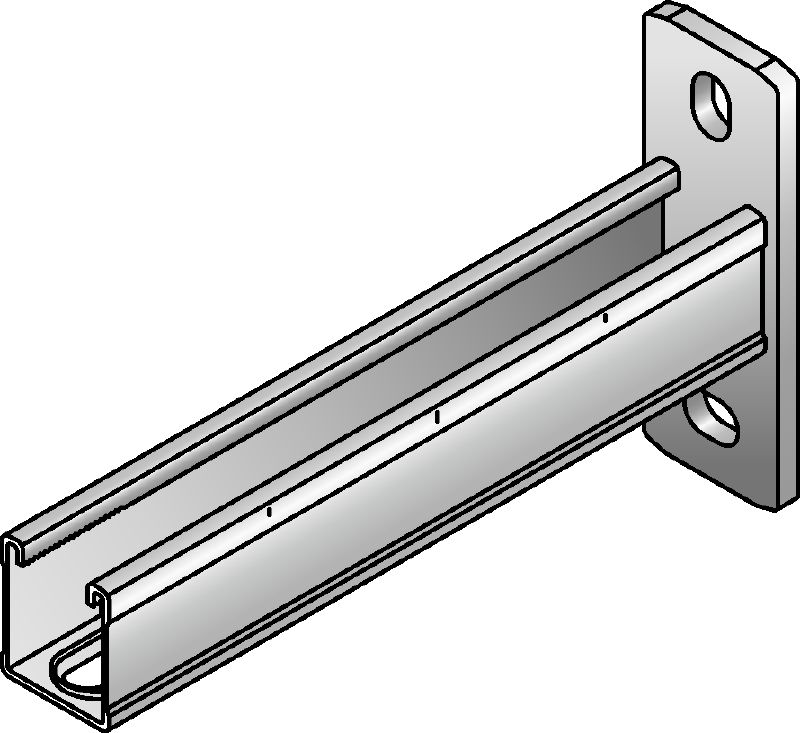

MM-B-36
Bracket
- Material thickness: Channel: 1.75 mm, Baseplate: 6 mm
- Material composition: Material channel: S235 JR - DIN EN 10025-2, Material plate: S355 MC - DIN EN 10149-2
- Surface finish: Galvanized
Customers also searched for brackets, connecting channels to concrete floors, connecting channels to concrete ceilings, metal connectors or installation channel.
Technical Data
Material thickness
Channel: 1.75 mm, Baseplate: 6 mm
Material composition
Material channel: S235 JR - DIN EN 10025-2, Material plate: S355 MC - DIN EN 10149-2
Surface finish
Galvanized
Profile
MM-C-36
Features & Applications
Features
- C-profile with serrated edge
- Elongated holes with flanged edges for greater versatility and strength
- Optimised design to match anchor loads
- Grid dimensions serve as an installation aid

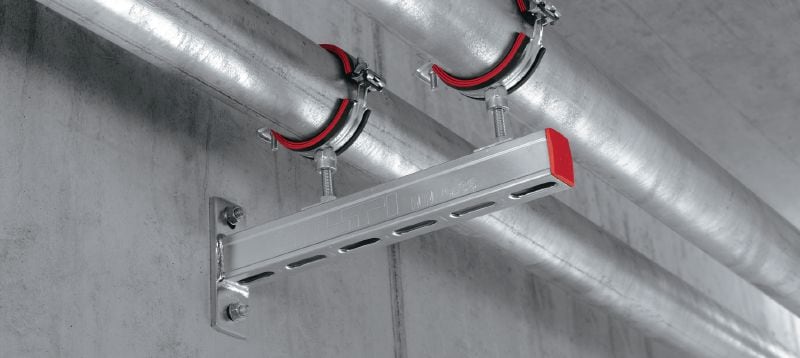

Applications
- Fastening light- to medium-duty pipe runs
- Fastening ventilation ducts and cable trays
- Recommended for use in dry interiors
For approval or certificate information, please see individual items.
