MQK-41/3 bracket

Bracket MQK-41/3/600 #370597

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_MQK_41_3_o.eps (75422)

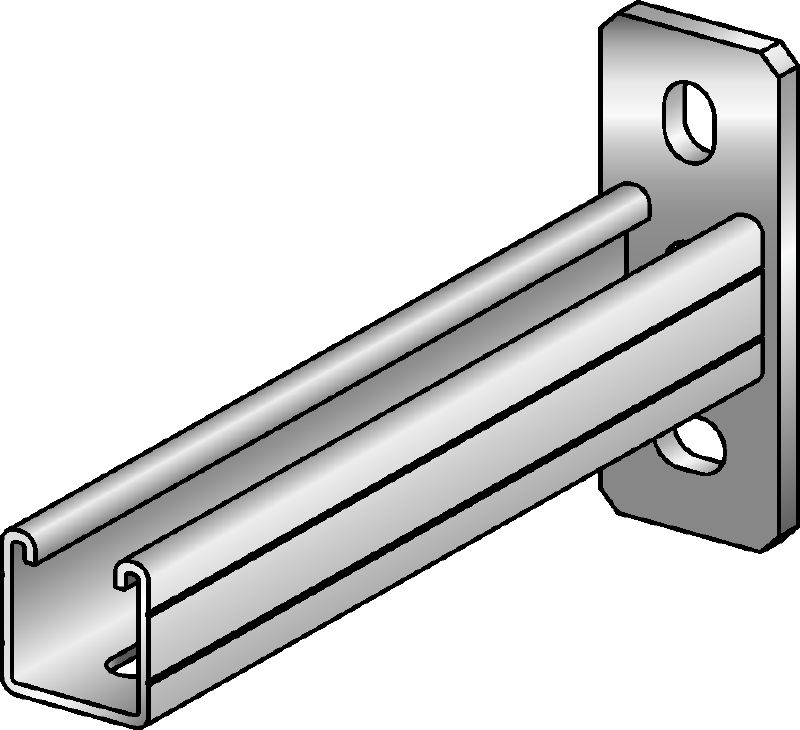

Galvanised C-Channel bracket for medium-duty applications

  • Approvals: ETA
  • Material thickness: Channel: 3 mm, Baseplate: 8 mm
  • Material composition: S235JR - DIN EN 10025

Choose options

Profile
  • MQ-41-3
Length - L
  • 600 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Approvals
ETA
Material thickness
Channel: 3 mm, Baseplate: 8 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Profile
MQ-41-3
Weight
2060 g

Documents

Approval document
Documentation
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Grid dimensions serve as an installation aid
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Single channel, slotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Recommended for installation in dry interiors
  • Installing cable trays, air ducts and pipe supports
