MQK-41 D-F bracket

Bracket MQK-41 D/1000-F #304127

Configurator
Technical Data
Documents
Features & Applications
Related Products
IS_HNA_205_o.eps

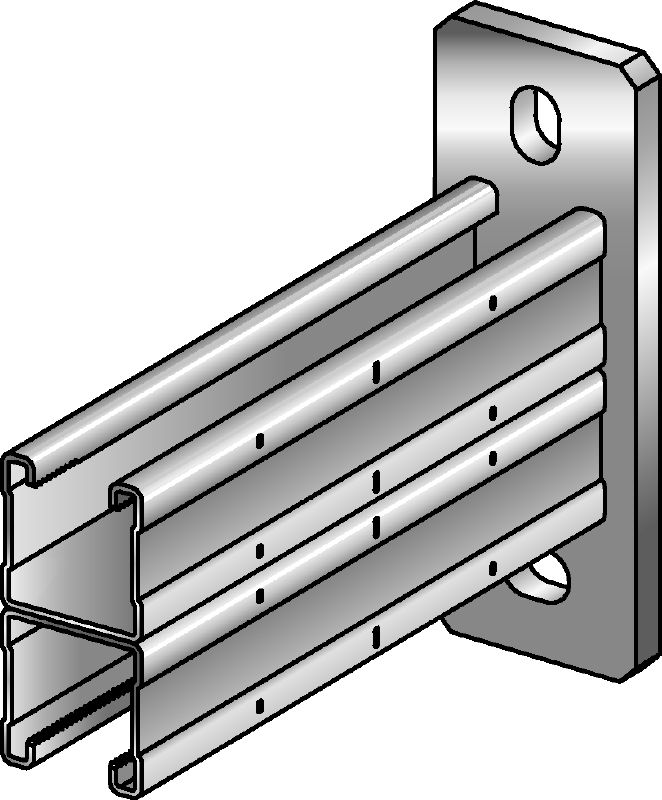

hot-dip galvanised (HDG) C-Channel double-bracket for medium-duty applications

  • Material thickness: Channel: 2 mm, Baseplate: 10 mm
  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Outdoor Coated - HDG

Choose options

Profile
  • MQ-41-D-F
Length - L
  • 1000 mm
Pack size
  • 6 pc
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material thickness
Channel: 2 mm, Baseplate: 10 mm
Material composition
S235JR - DIN EN 10025
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Profile
MQ-41-D-F
Weight
5080 g

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Double channel, unslotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Installations in ventilated façades, damp interiors and outdoor areas with little or no exposure to the weather
  • Installing cable trays, air ducts and pipe supports
  • Recommended for use in moderately corrosive outdoor and indoor environments
