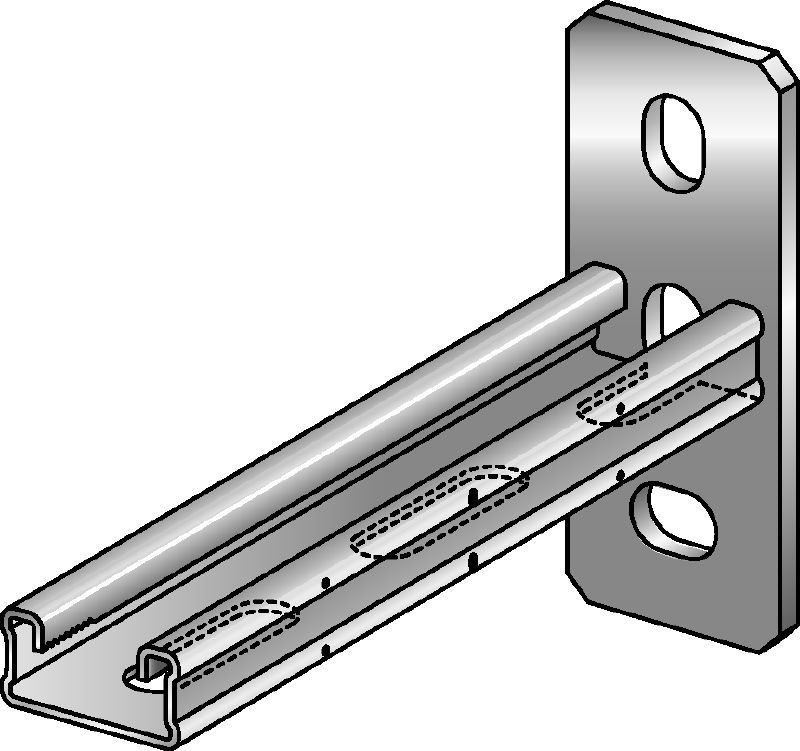

Stainless steel (A4) C-Channel bracket for medium-duty applications

  • Material thickness: Channel: 2 mm, Baseplate: 6 mm
  • Material composition: Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
  • Surface finish: Outdoor Plus - Stainless Steel

Choose options

Profile
  • MQ-21-R
Length - L
  • 300 mm
  • 450 mm
Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Material thickness
Channel: 2 mm, Baseplate: 6 mm
Material composition
Stainless steel, 1.4404 (A4) – EN 10088, AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Profile
MQ-21-R

Features & Applications

Features

  • C-profile with serrated edges – for higher pull-out and shear capacity
  • Engineered for higher shear load capacity and easier assembly
  • Rectangular base plate – strengthens the connection to the supporting material and increases rigidity
  • Pre-marked dimensions – for quicker installation, assembly and measurement
  • Single channel, slotted

Applications

  • Stand-alone use on ceilings, walls and floors or in conjunction with strut channel systems
  • Installations in industrial areas or environments with high levels of condensation
  • Installing cable trays, air ducts and pipe supports

For approval or certificate information, please see individual items.
