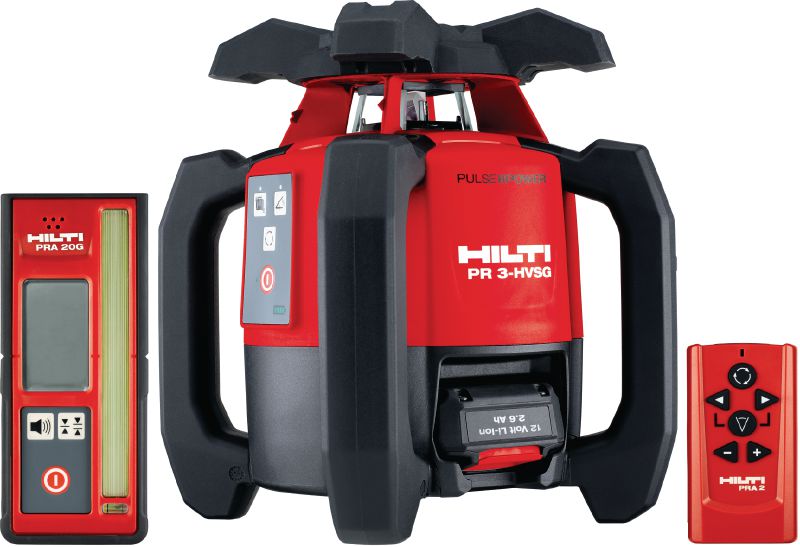

PR 3-HVSG Indoor rotating laser level

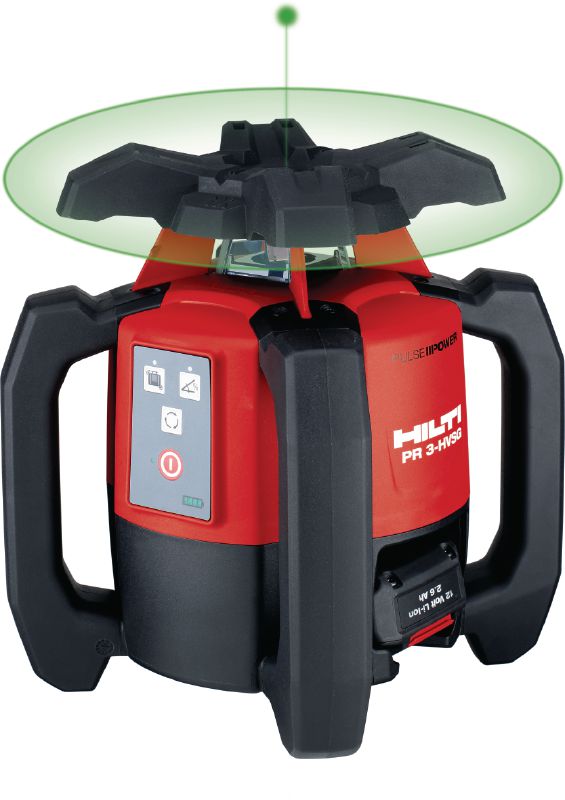

Indoor rotating laser with highly visible green beam

  • Accuracy: ±1 mm at 10 m
  • Operating range with laser receiver (diameter): 2 - 150 m
  • Laser class: <4.85 mW, 510-530 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)

Customers also searched for Rotating Laser or Green Laser.

Technical Data

Accuracy
±1 mm at 10 m
Operating range with laser receiver (diameter)
2 - 150 m
Laser class
<4.85 mW, 510-530 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self-levelling range at room temperature
±5 °
Inclination setting X-axis - range
8.6 - 8.6 %
Rotation speed
0, 300, 600, 1000 rpm
Operating temperature range
-10 - 50 °C
Maximum operating time
16 h

Documents

Features & Applications

Features

  • Laser class 2 green diode technology provides 4 times better visibility
  • Built to last – engineered to US Military standards (MIL-STD-810G) with head-mounted bumpers, four shock-absorbing handles and IP66 protected housing to maintain laser accuracy in rough jobsite conditions
  • "Catch-me" function to boost laser visibility
  • IR remote control allows fast alignment
  • Easy slope setting up to +/-5°

Applications

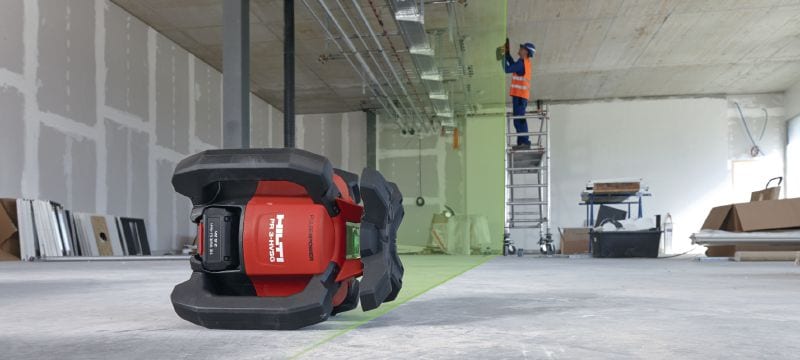

  • Levelling – suspended ceilings, transferring heights
  • Squaring – walls, partitions

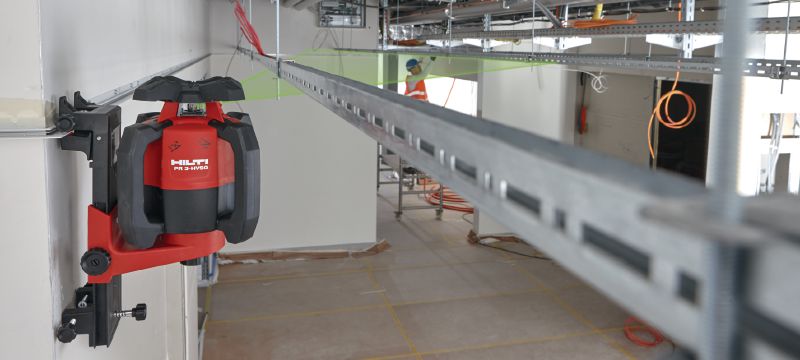

  • Aligning – pipe runs and cable trays

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services
Lifetime_2_en_us_line.eps

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
