PD-C Laser meter

L080210_v1 (162698)
PD-C Laser range meter (76009)
PD-CS (77254)
PD-C (77260)
PD-CS (77257)
PD-CS (77255)

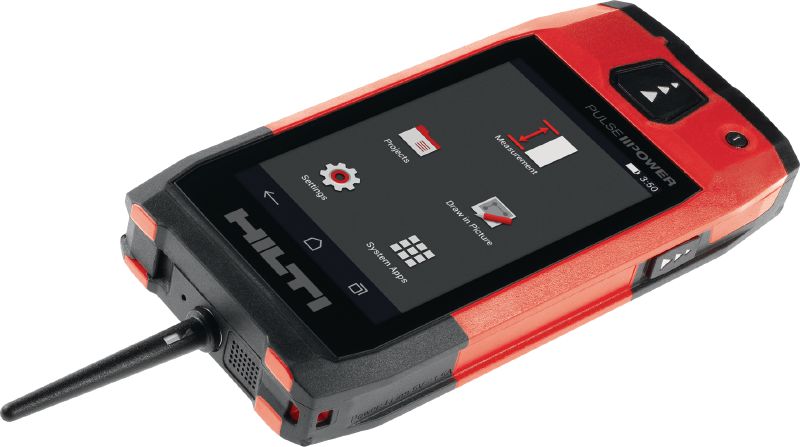

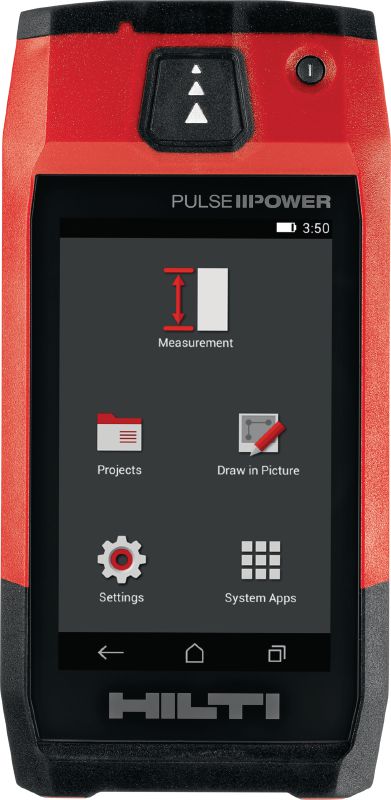

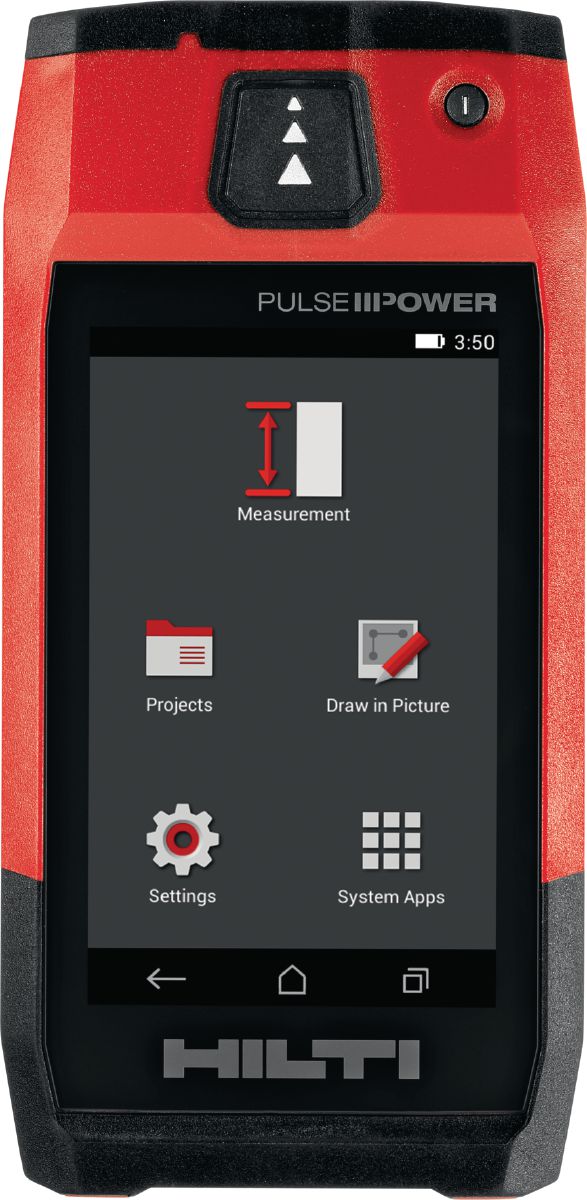

Ultimate laser meter with built-in camera for documenting measurements up to 200 m

  • Measuring range: 0.15 m - 200 m
  • Measurement accuracy: 1.0 mm
  • Measuring functions: Single and continuous measurement, Digital level

Customers also searched for measuring, tape measure or documentation.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Measuring range
0.15 m - 200 m
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Digital level
Calculation functions
Area, Volume, Trapezoid (2x), Pythagoras (3x), Indirect measurement (4x), Addition, Subtraction, Offset, Min/max
Data memory
Internal flash memory
Maximum operating time
10 h
Battery type
Li-ion
Laser class
<1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 54 (EN 60529)
Interface
Bluetooth, USB

Documents

pdf Operating Instruction PD-C , PD-CS (01) (ENEN-US), English [ 4.8 MB ]
pdf Operating Instruction PD-C , PD-CS (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 657.9 KB ]
pdf Operating Instruction PD-C , PD-CS (01), Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 323.1 KB ]
pdf Operating Instruction PD-C, PD-CS (01) (EN), English [ 3.4 MB ]
pdf Operating Instruction PD-C , PD-CS (01), English, Hebrew [ 5 MB ]

Features & Applications

Features

  • Built-in target camera to easily locate the laser point outdoors
  • Save thousands of measuring results with the 4 GB built-in memory – streamlines the recording of survey data and reduces opportunities for mistakes
  • Export measurements to a report (PDF), spreadsheet (CSV) or photo (JPG) for easy and efficient documentation production

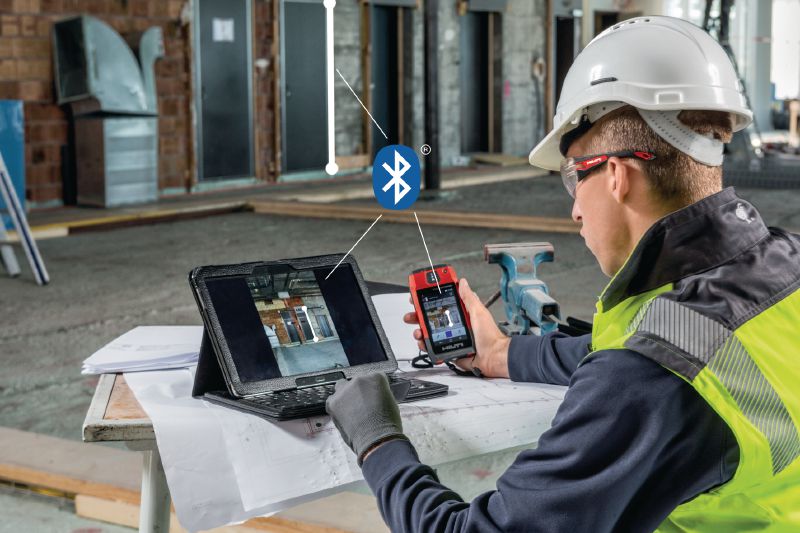

  • Bluetooth and USB interface – instantly send measurements to colleagues and other devices from anywhere
  • Free software updates downloadable from the PC utility software available from https://www.hilti.com/updatePDC

Applications

  • Collecting and documenting measurements while preparing an estimation or quotation for a jobsite or materials purchase
  • Checking and documenting correct completion of measurements to specification or for documentation of issues
  • Documentation of areas too complex for paper sketches by taking precise measurements and adding these as segments directly into a photo

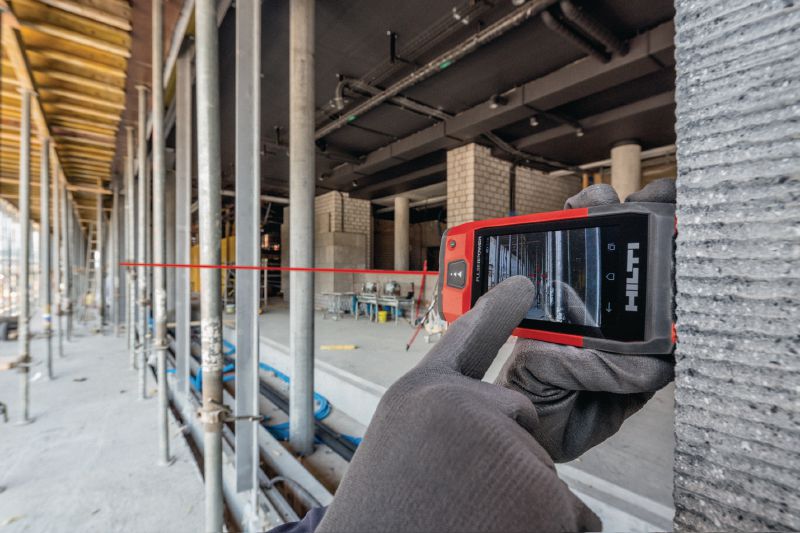

  • Taking estimated measurements of places difficult to access safely and quickly either using SW-supported indirect functions or the new “Measure from Photo” feature

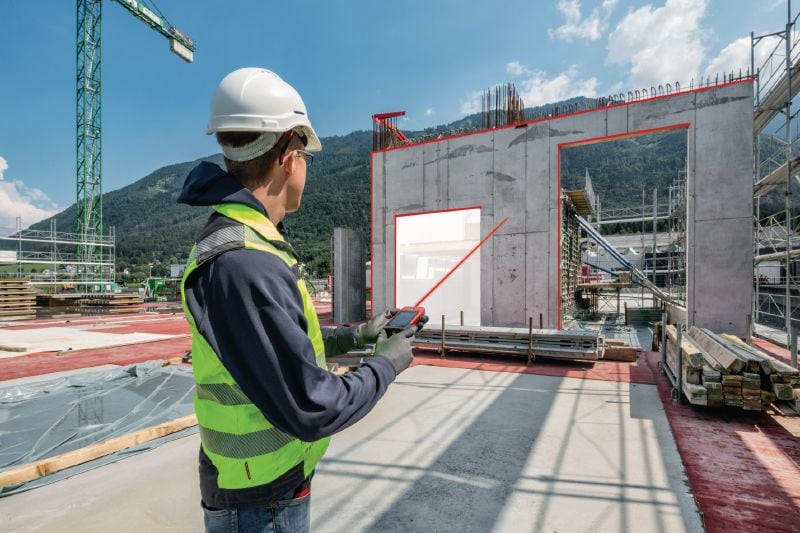

  • Measuring heights to ceilings and long distances (one-person operation) in situations where using conventional methods is difficult or impossible

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
