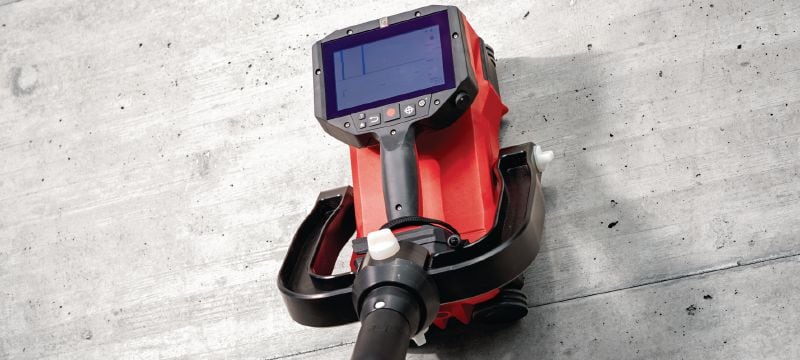

PS 300 Ferroscan system
Concrete detector for rebar localisation, depth measurement and size estimation in structural analysis
- Max. detection depth for object localization: 200 mm
- Localisation accuracy: 1% +/-3mm mm
- Minimum distance between two neighbouring objects: 30 mm
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From KWD 8,125.000
Technical Data
Max. detection depth for object localization
200 mm 1
Localisation accuracy
1% +/-3mm mm 2
Minimum distance between two neighbouring objects
30 mm
Data memory (scanner)
200 scans
Working temperature range
-10 - 50 °C
Weight with batteries
2 kg
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
Documents
Features & Applications
Features

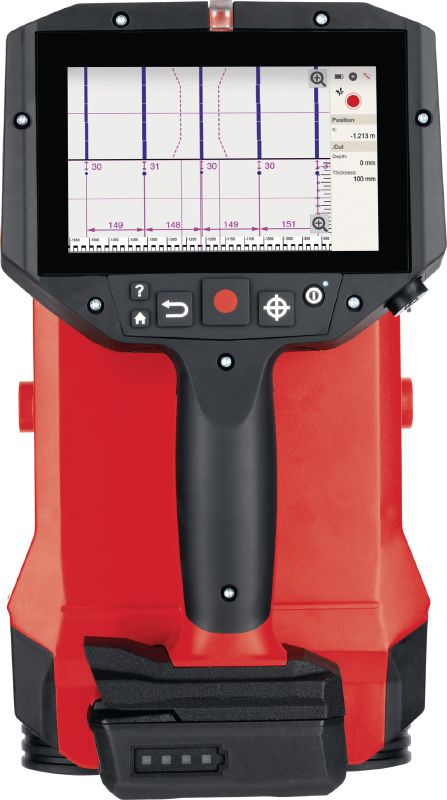

- Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot structural analysis
- Smart algorithm helps accurate depth measurements for rebar

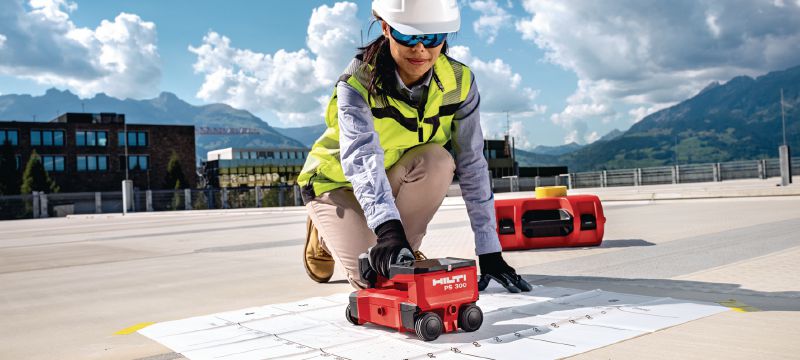

- Wide sensor area enables quick and easy scan over large areas
- Record scan data for documentation and structural analysis
Applications

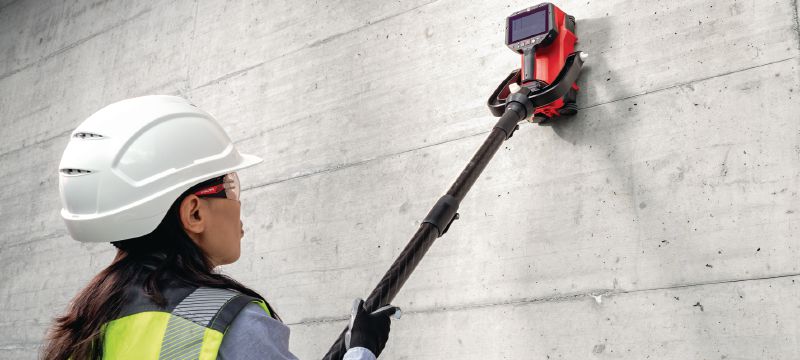

- Verification and analysis for 1st layer rebar

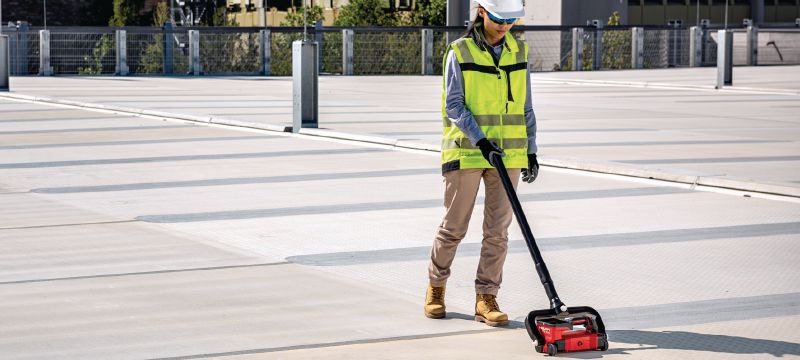

- Checking concrete cover over large areas for structural repair work

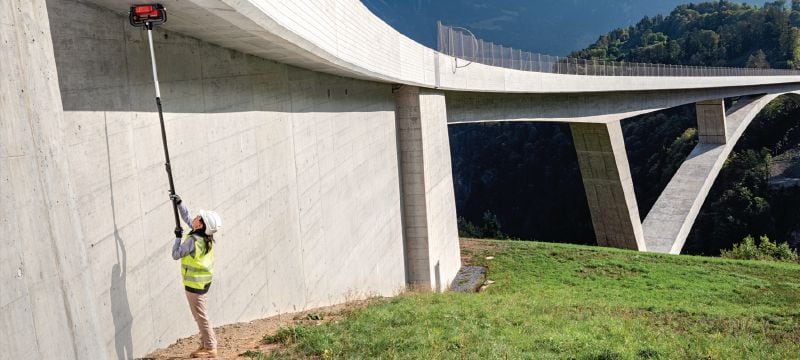

- Building acceptance inspections and quality control

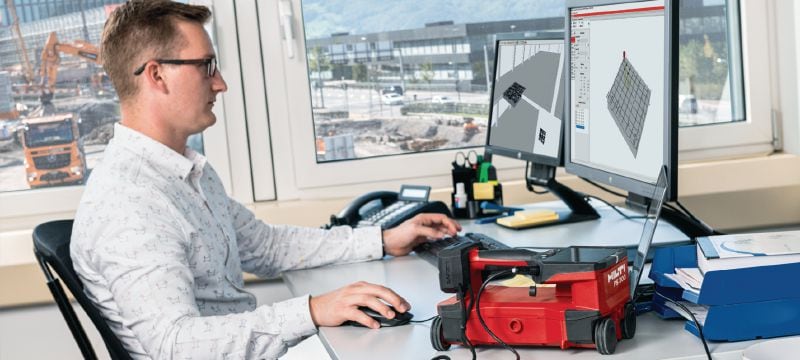

- Generation of structural assessment reports including statistics and visual presentation in 2D/3D views of areas
For approval or certificate information, please see individual items.
Services
Fleet Management
- Individual labels and online visibility provide tool fleet transparency
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- High-performing tools and latest technology help to increase jobsite productivity.
- Loan tools during repair to reduce downtime.
- Temporary tools for peak times and special applications help to reduce investments.
