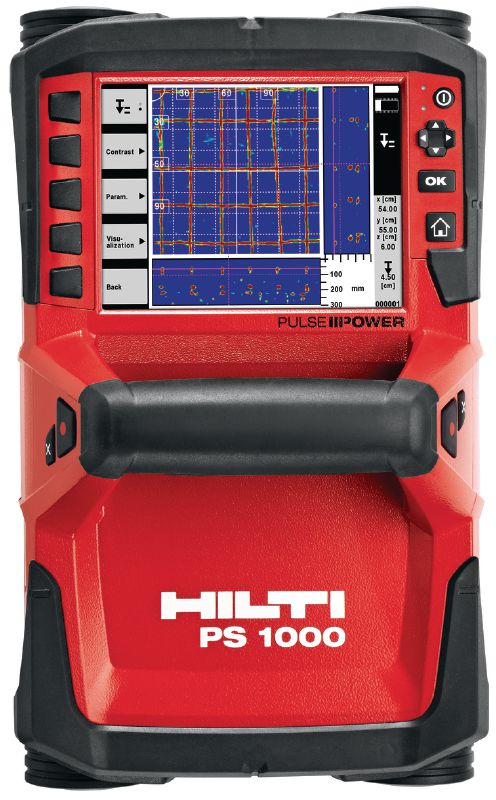

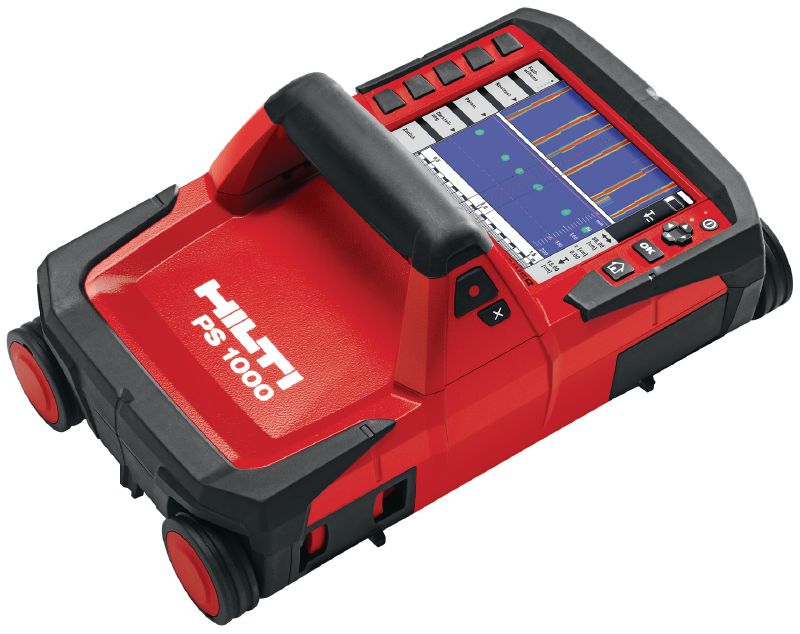

PS 1000 X-Scan Concrete scanner

X-Scan, Radar, Scanner, Concrete Scanning, PS 1000, PS 1000-B
X-Scan, Radar, Scanner, Concrete Scanning, PS 1000, PS 1000-B

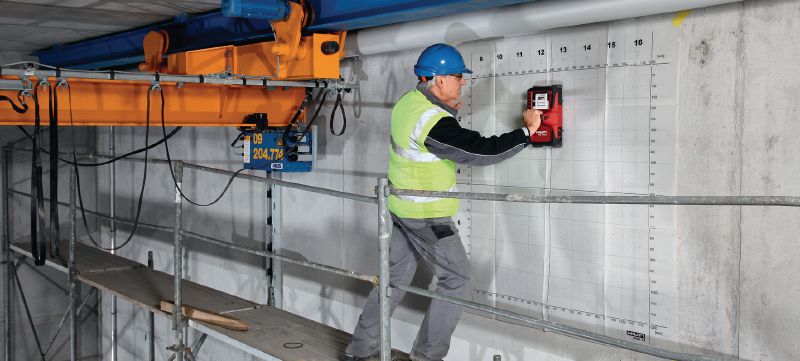

PS 1000 X Scan jobsite
52272.tif
52274.tif
54224.tif
52275.tif

Efficient concrete scanner for structural analysis and to locate embedded objects in multiple layers

  • Max. detection depth for object localization: 300 mm
  • Accuracy of depth indication: <100 mm: ±10 mm;>100 mm: ±15 %
  • Localisation accuracy: ±10 mm

Customers also searched for detection of holes, detection objects in concrete wall, inspecting floors, detection or construction measuring tools.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From KWD 15,275.000

Technical Data

Max. detection depth for object localization
300 mm 1
Accuracy of depth indication
<100 mm: ±10 mm;>100 mm: ±15 % 2
Localisation accuracy
±10 mm 3
Minimum distance between two neighbouring objects
40 mm
Operating temperature range
-10 - 50 °C
Data memory (scanner)
200 scans
Maximum operating time
4 h
Working temperature range
-10 - 50 °C
Weight with batteries
3 kg
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  3. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

pdf White paper post installed rebar in Tunnelling, English [ 1.6 MB ]

Features & Applications

Features

  • Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation
  • Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan
  • Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification
  • Compact all-in-one design offers easy operation, plus unmatched data visualisation means hundreds of square metres of concrete can be inspected in a day
  • Detailed monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation

Applications

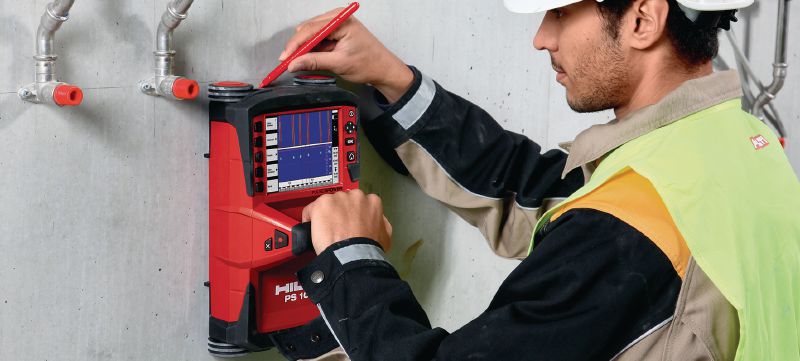

  • Locating rebars, tendons, metal and plastic conduits, glass-fibre cables, voids and wood in dry concrete structures at depths of up to 300 mm
  • Minimise hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work
  • Rebar extension (post-installed rebar connections) in structural applications

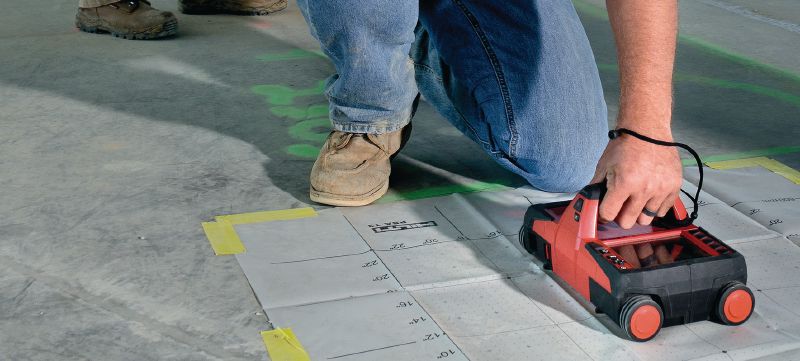

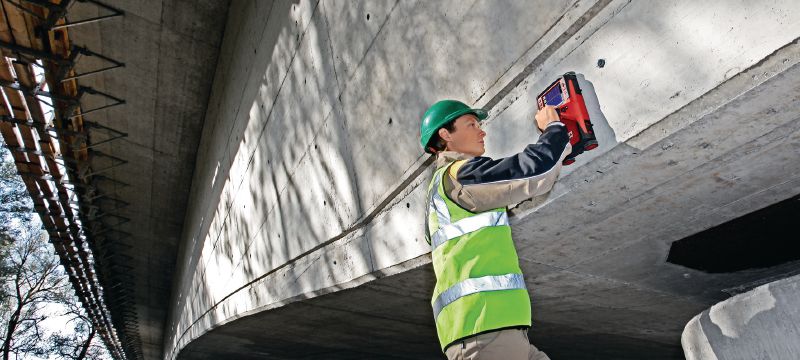

  • Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings
  • Detection of voids and cavities
