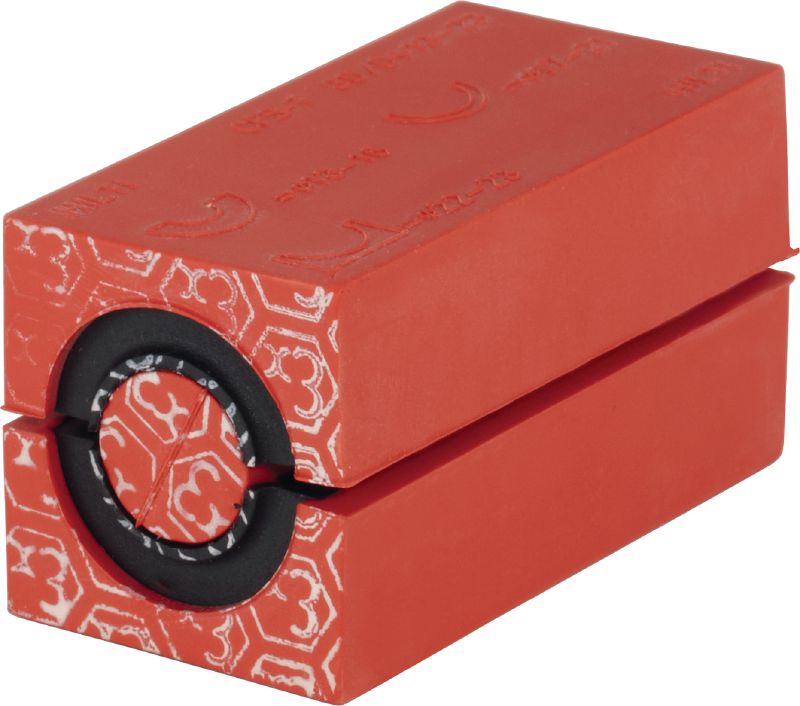

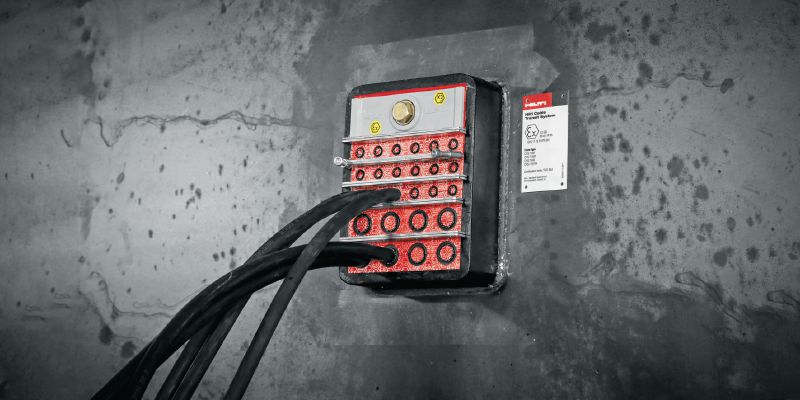

Modules to seal cables/pipes within transit frames in potentially explosive atmospheres

  • Storage and transportation temperature range: 5 - 25 °C
  • Application temperature range: -20 - 75 °C

Technical Data

Storage and transportation temperature range
5 - 25 °C
Application temperature range
-20 - 75 °C

Documents

Features & Applications

Features

  • Simplified inventory management – only 7 different modules are needed to cover all cable diameters from 3 to 99 mm
  • Versatile adapter modules for quicker, easier accommodation of each cable diameter
  • Time-saving installation thanks to module interlinking, especially where cables run vertically through deck/floor penetrations
  • Colour-coded adapter system to make inspection easier and more reliable

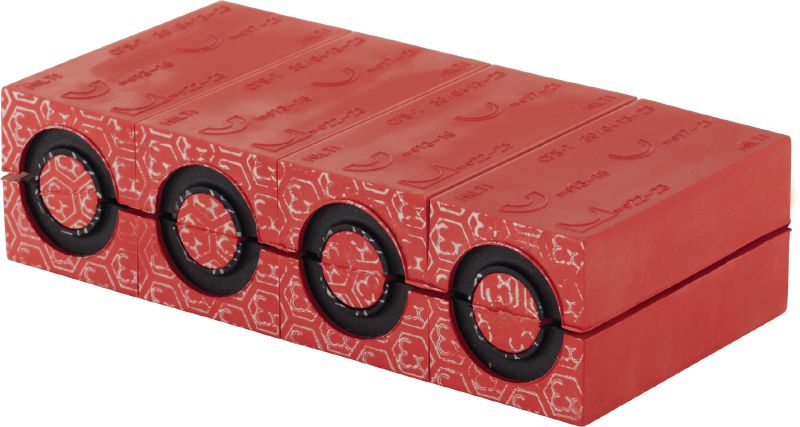

  • Cable modules up to size 40 mm are supplied as one perforated block and can be easily separated for individual use.

Applications

  • For use in potentially explosive atmospheres
  • Industries affected by the ATEX directive, such as the petrochemical and chemical industries
  • Oil and gas platforms which are not covered by the IMO resolution

For approval or certificate information, please see individual items.
