S-BT GR Screw-in stud

Threaded stud S-BT-MF M10/15 AN 6 #2140529

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-BT-GF/ S-BT-GR (85515)
L088171_cropped (141515)
S-BT-GF/ S-BT-GR (85517)

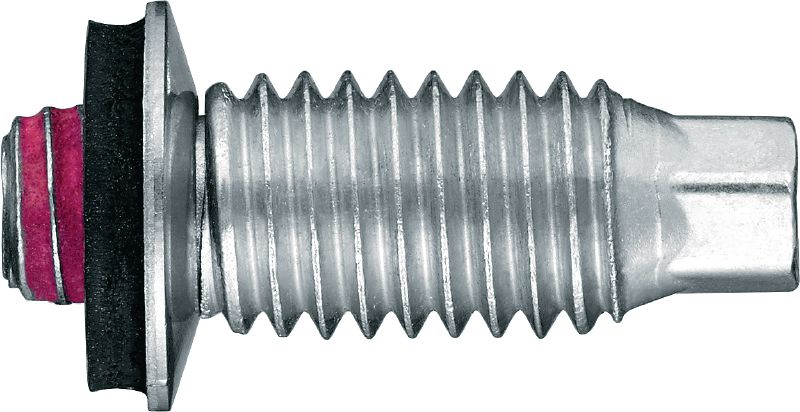

Threaded screw-in stud (stainless steel, metric thread) for grating fastenings on steel and aluminium in highly corrosive environments

  • Base materials: Steel
  • Minimum thickness of base material (steel): 6 mm
  • Corrosion protection: Stainless steel A4(316) or equivalent
ultimate

Customers also searched for Stainless steel studs, Stainless stud, Threaded stud, Stainless threaded stud or Studs for stainless steel.

Choose options

Thread size
  • M8
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
KWD 5.622
KWD 5.620
/
1 each

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Stainless steel A4(316) or equivalent
Material
Duplex stainless steel (1.4462)
Thread size
M8
Approvals
ABS, BV, DNV, ETA, ICC-ES, LR, RMR
Product class
Ultimate

Documents

Approval document
Brochure
Reference document
Certificate
Operating Instruction
pdf ETA-20/0530_S-BT_2020.09.18_en, German, English [ 3.3 MB ]
pdf RINA Type Approval FPE278318CS/001 for S-BT-MR / -MF, S-BT-GR / -GF, S-BT-ER / -EF, X-FCM-R (NG), X-FCM-M (NG) and X-FCS-R fastening system in off-shore and shipbuilding application, English [ 108.1 KB ]
pdf ABS Type Approval 21-2140400-PDA for S-BT fastening system in off-shore and shipbuilding application, English [ 1.7 MB ]
pdf LR Type Approval LR21394055TA for S-BT fastening system in off-shore, shipbuilding and industrial application, English [ 470.9 KB ]

Features & Applications

Features

  • No rework necessary on coated steel – corrosion protection remains intact
  • For use in highly corrosive environments (C4 and C5) – suitable for most energy and industry applications
  • Suitable for use on steel with a thickness of 6 mm (1/4") and greater
  • Portable, cordless system eliminates the need for long electric extension cords
  • No propellant required

Applications

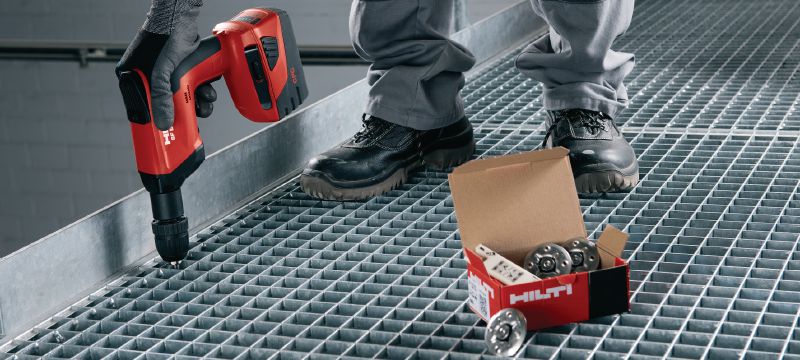

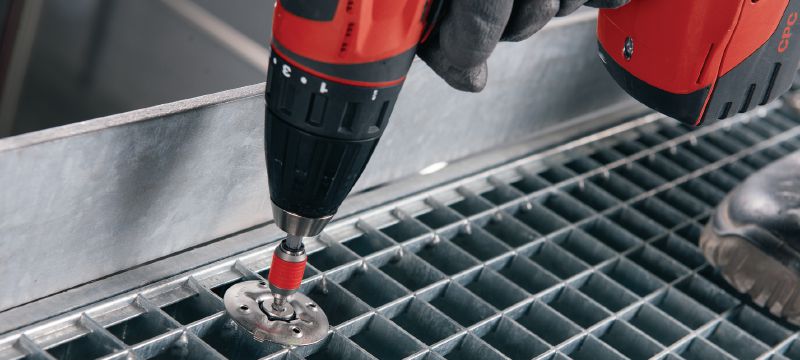

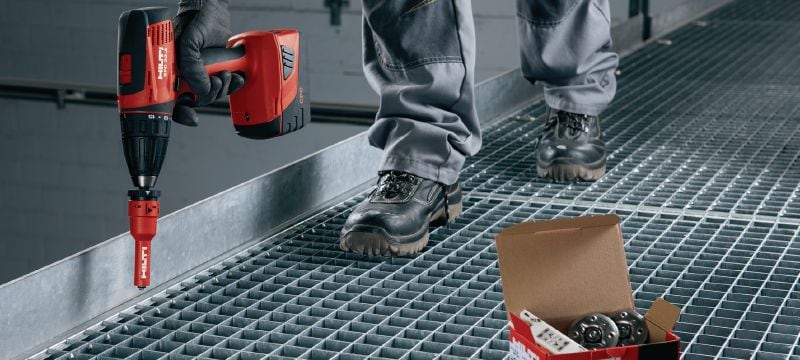

  • Fastening grating to steel structures using the X-FCM-R grating disc
