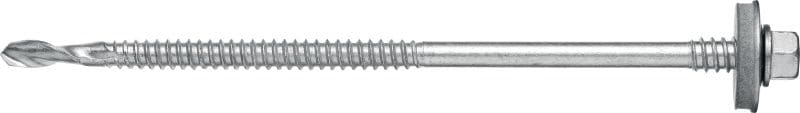

S-CD 65 GS Sandwich panel screws

Sandwich panel screw (A2 stainless steel) with 19 mm washer and supporting thread for thick steel base structures (up to 15 mm)

Screw drive/recess type: Hexagon 8
Washer size: 19 mm
Base materials: Carbon steel

Choose options

Thickness fastened range MF

75 - 106 mm
170 - 206 mm

Length

148 mm
248 mm

Pack size

100 pc

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From KWD 49.075

Technical Data

Screw drive/recess type

Hexagon 8

Washer size

19 mm

Base materials

Carbon steel

Environmental conditions

Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution

Screw diameter d

5.5 mm

Screw head diameter

10 mm

Washer type

Bonded EPDM

Documents

Features & Applications

Features

Self-drilling screw for fast assembly in one step
Reliable, waterproof and corrosion-resistant fastenings
EPDM rubber washer – creates a more reliable seal against water
Innovative twisted drill tip for fast drilling speed and high robustness
Supporting thread helps to fasten without dents

Applications

Fastening sandwich panels to steel framing
Stainless steel (A2) for fastening in mildly corrosive environments
Thick metal-to-metal connections (up to 15 mm)
Watertight fastenings – 19 mm washer included
0

For approval or certificate information, please see individual items.
