S-MD 01 PS Self-drilling metal screws
Self-drill screw S-MD01PS 5,5x22 #202434

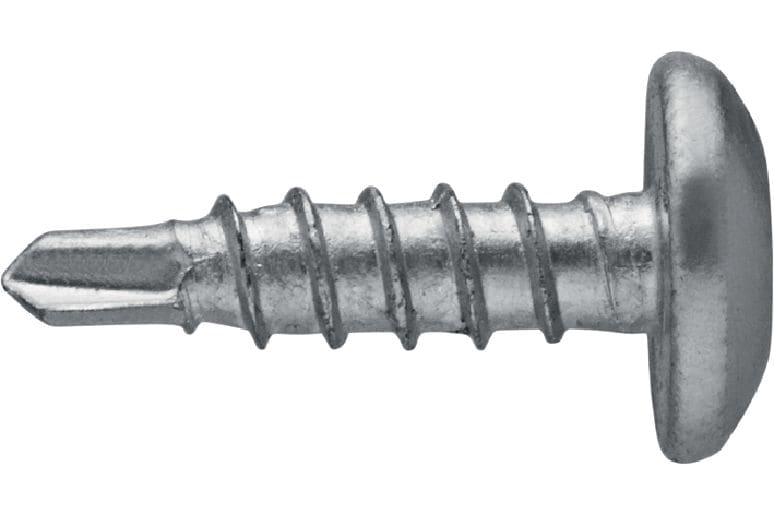

Self-drilling pan head screw (A2 stainless steel) without washer for thin metal-to-metal fastenings (up to 3 mm)
- Screw drive/recess type: TX 25
- Base materials: Carbon steel, Aluminium
- Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
premium
Choose options
Thickness fastened range MF
- 1 - 7 mm
Length
- 22 mm
Pack size
- 500 pc
Quantity
Packs
Total Pieces
500
Discounted net
Technical Data
Screw drive/recess type
TX 25
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
5.5 mm
Length
22 mm
Screw head diameter
12 mm
Product class
Premium
Washer type
none
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- For reliable, corrosion-resistant fastenings
- Fast and robust drill tip
- For reliable fastenings with defined load values
- Pan head for improved aesthetics and better accessibility in tight spaces
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Stainless steel (A2) for fastening in mildly corrosive environments
- Thin metal-to-metal connections (up to 3 mm)
